BDS Suspension 4" 4-Link Suspension System for 2011-16 Ford F250/F350 4WD trucks  -590H

(0) Reviews: Write first review
BDS590H
Pricing: $2,339.58

Customize Your Item

- Driveshaft -
 * required
- Shock Boot Selection -
 * required
- Engine Type -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Adjustable Track Bar -
 * required
- Shock Options -
 * required
- Steering Stabilizer -
 * required
- Sway-Bar and Accessories -
 * required
- Rear Add-a-Leaf Kit -
 * required
- Traction Bars -
 * required
- Front HD Extended Brake Lines -
 * required
- Rear HD Extended Brake Lines -
 * required
- Bumper Spacer Kit -
 * required
Qty:
Free Shipping

Description

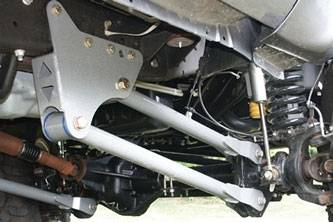

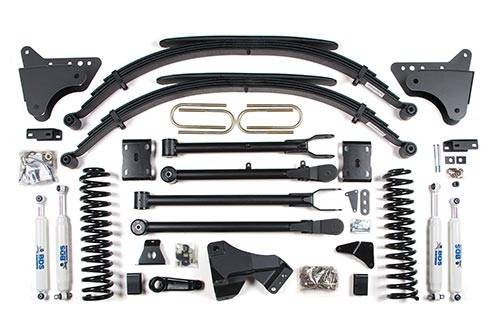

The full replacement four link system is centered around 4 massive control arms featuring greasable ends. The 4-link system is setup to correct the alignment tire placement inside the wheel well. It also reduces caster change through wheel travel creating a more controlled feel both on and off road. BDS front Pro-Ride Coil Springs are included to provide the lift and can handle full coil bind so they will not sag. The kit also comes with anti-sway bar drop brackets, a dropped pitman arm for steering angle correction, a track bar relocation bracket to properly center your axle and bump stop extensions.

Rear lift options include a 5" block kit that eliminates the factory block or a full replacement leaf spring.

Choose between gas and diesel configurations as well as plenty of upgrades and accessories when customizing your kit.

Features

  • Important Kit Notes

    • 1. Removal of factory block required. Net rear lift height will vary depending on height of factory block, but will result in a level stance.
    • 2. Front exhaust modification may be required to clear front drive shaft (gas only).
    • 3. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
    • 4. Although extremely rare, front driveline vibration may occur.
    • 5. If equipped with rear sway bar, #123009 required.
    • 6. U-bolts will not work on dually.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/17 x 9 and 4.5" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 2011 Ford F250 / F350
    • 2012 Ford F250 / F350
    • 2013 Ford F250 / F350
    • 2014 Ford F250 / F350
    • 2015 Ford F250 / F350
