BDS Suspension 4" Suspension Lift for 2014-2017 Chevy/GMC 1500 4wd - 712H

BDS712H
Pricing: $2,194.38

Customize Your Item

- Rear Lift Kit Upgrades: -
 * required
- Control Arm Selection -
 * required
- Shock Boot Selection -
 * required
- Rear Shock Selection -
 * required
- Traction Bars -
 * required
Qty:
Free Shipping

Description

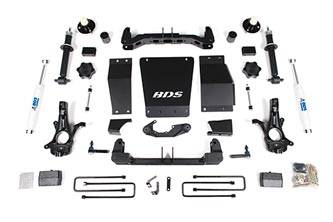

This new 4" system is built with all the same features and benefits of the 6" version. Full replacement 4" struts give the proper ride height in the front and the rear kit provides a 4" block to replace the factory 1.25" block. Like the 6" version, this system is FMVSS126 compliant.

This new suspension system utilizes the tried and true high-clearance IFS suspension design that has made BDS the preferred suspension lift for the 1/2 ton GM trucks.

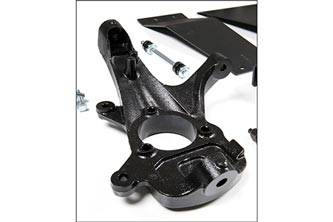

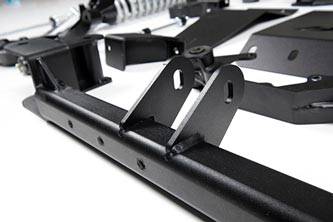

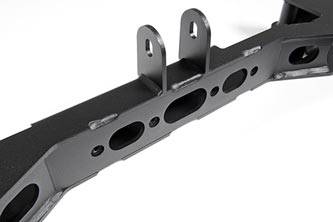

At the heart of the new lift are the ductile cast iron replacement steering knuckles and high-clearance, full width lower control arm crossmembers. These components establish a suspension geometry that not only performs well on and off road but is compliant with the factory traction control systems. The suspension also works seamlessly with the newly redesigned electric power steering system that is standard on the new 2014-16 models.

The front differential is relocated for proper angles at the CV axles and allowing for the use of the stock front driveshaft. A 3-piece differential drop system keeps the differential secure and the 3-piece front skid plate system keeps the underside protected on those offroad excursions.

Full replacement front struts provide the lift in the front. Replacement front tie rod ends and sway bar links round out the front system. In the back, a block and u-bolt setup levels the rear with the front.

For the ultimate performance package, the option for front Fox Coilovers with rear Fox 2.0 shocks is available.

Features

  • Important Kit Notes

    • You Must Verify Steel or Aluminum Steering Knuckles & Control Arms Prior To Placing Your Order.
    • 1. Strut compressor required
    • 2. Requires frame bracket modification
    • 3. Requires differential modification to clear electric power steering
    • 4. Vehicles came with steel or aluminum steering knuckles and control arms, must order appropriate kit
    • 5. Trimming may be required for 35" tire clearance due to variation between tire brands.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 33" x 12.50" w/17 x 9 and 5" back spacing
    • 33" x 12.50" w/18 x 9 and 5" back spacing
    • 35" x 12.50" w/20 x 9 and 5.75" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 2014 Chevy / GMC 1/2 Ton Pickup 4WD
    • 2015 Chevy / GMC 1/2 Ton Pickup 4WD
