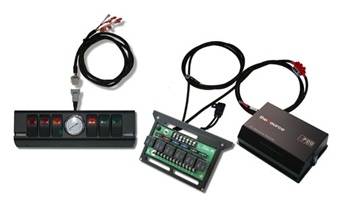

1997-2006 Jeep TJ / LJ 6 sPOD Switch Panel System With Air Gauge  - 510-97_03

SP-510-97_03
Each system includes the following:
All required mounting brackets and hardware. System will come pre-wired ready to install.

Included:

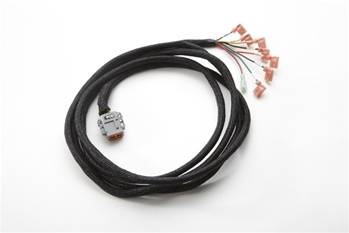

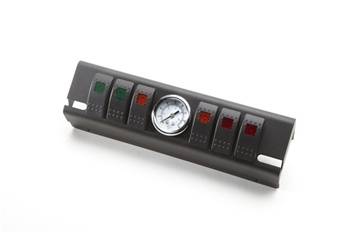

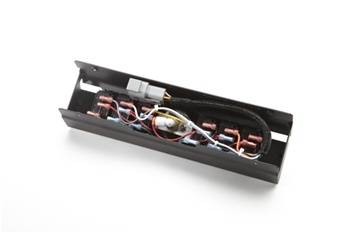

Switch panel, six Contura switches, 2 Red, 2 Amber and 2 Green actuators (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.

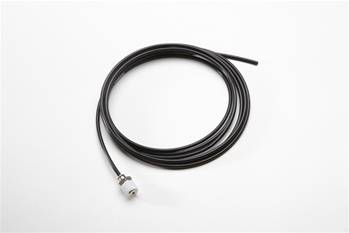

Complete Air Gauge kit 0-160 psi Air Gauge w/Quick Release Camozzi fittings and 10' of high pressure connection line.

All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

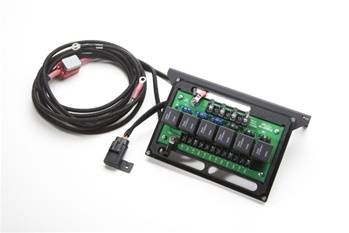

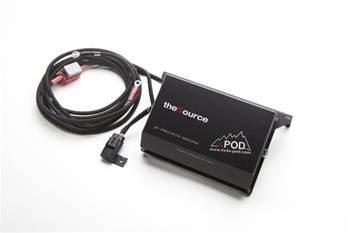

The Source 6 Circuit power distribution system includes:

12 position terminal block for accessory attachment
6 Bosch (Tyco) cube style relays (SPST 30amp) (plug-in style)
6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
6 Diodes to protect sensitive accessories such as LED lights from ""field collapse""
Inline 50amp manual resetting circuit breaker
8 gauge power leads with crimped and soldered terminal for connection to the battery
Mounting bracket for Jeep Wranglers"
Pricing: $475.00

Customize Your Item

- ADD Legends-Labels -
 * required
- Switch Color 1 -
 * required
- Switch Color 2 -
 * required
- Switch Color 3 -
 * required
- Switch Color 4 -
 * required
- Switch Color 5 -
 * required
- Switch Color 6 -
 * required
- ARB Harness Adapter -
 * required
- TJ Year -
 * required
Qty:
Free Shipping

Description

Each system includes the following:
All required mounting brackets and hardware. System will come pre-wired ready to install.
Included:
Switch panel, six Contura switches, 2 Red, 2 Amber and 2 Green actuators (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
Complete Air Gauge kit 0-160 psi Air Gauge w/Quick Release Camozzi fittings and 10' of high pressure connection line.
All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
The Source 6 Circuit power distribution system includes:
12 position terminal block for accessory attachment
6 Bosch (Tyco) cube style relays (SPST 30amp) (plug-in style)
6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
6 Diodes to protect sensitive accessories such as LED lights from ""field collapse""
Inline 50amp manual resetting circuit breaker
8 gauge power leads with crimped and soldered terminal for connection to the battery
Mounting bracket for Jeep Wranglers"

Features

  • 12 position terminal block for accessory attachment
    6 Bosch (Tyco) cube style relays (SPST 30amp) (plug-in style)
    6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
    6 Diodes to protect sensitive accessories such as LED lights from "field collapse"
    Inline 50amp manual resetting circuit breaker
    8 gauge power leads with crimped and soldered terminal for connection to the battery
    Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!
    Fuse for LVCO which can be removed to bypass the LVCO
    Mounting bracket for Jeep Wranglers
