Zone Offroad 5" Suspension System Lift Kit for 94-01 Dodge Ram 1500 Pickup 4WD - D44 / D45

ZND44-D45
Pricing: $895.65

Customize Your Item

- Gas Shock Upgrade -
 * required
- Shock Boot Selection -
 * required
- Year Range Selection -
 * required
- Steering Stabilizer -
 * required
Qty:

Description

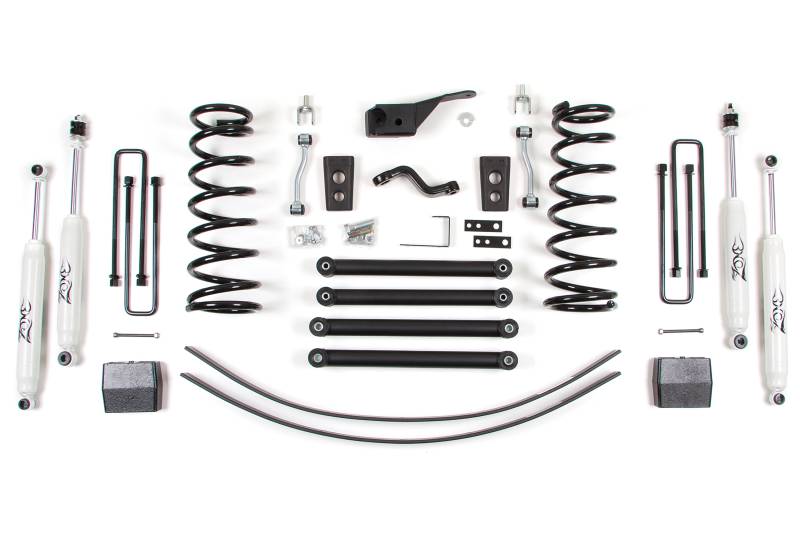

Turn your 1994-2001 Dodge 1500 into the truck you've always wanted! This 5" system features upper and lower extended heavy-duty control arms with greasable polyurethane bushings to properly center the axle and correct caster. The dropped pitman arm combined with the heavy duty track bar bracket corrects the steering geometry and centers the axle.

Whether on road or offroad this system is built to perform including custom valved Zone shocks that have been tuned to the full height 5" coils as well as extended polyurethane bump stops. This system also uses replacement sway bar links to eliminate any binding at the stem and correct sway bar geometry.

In the rear, a 5" rear block and add-a-leaf is used to replace the factory block, no stacking in this system.

Featured Technology & Benefits
Heavy duty greasable control arms included
Extended length urethane bump stops
Track bar relocation to properly center your axle
Pitman arm included to maintain steering geometry
Completely bolt on system

Important Notes!
Aftermarket steering stabilizer required. Factory drag link mount taper will be flipped when dropped pitman arm is installed.
2001 models with "Offroad Package" will not yield a full 5" of lift.
Factory block is replaced with 5" block and add-a-leaf combo to obtain a level stance.
Will not fit models built before February 9, 1994 due to track bar stud size.

This product fits the following applications:

94-01 Dodge/Ram Ram 1500 4WD

Quick Specs

Front Lift Height: 5?
Front Lift Method: Coil Springs
Rear Lift Height: 3?
Rear Lift Method: 5? Block & Add-a-Leaf
Install Time Hrs: 5-6
Difficulty Level 1-5: 2
Wheel Size: 16 x8
Back Spacing: 4?
Max Tire Size: 35 x 12.50
