Zone Offroad 6" Suspension Lift Kit System for 09-13 Ford F150 2WD - F20

ZNF20
Pricing: $1,420.49

Customize Your Item

- Gas Shock Upgrade -
 * required
- Shock Boot Selection -
 * required
- Vehicle Specific Requirement -
 * required
- Add Rear Driveshaft Extension -
 * required
- Add E-Brake Relocation Bracket -
 * required
- Rear Suspension Option -
 * required
Qty:
Free Shipping

Description

Choose the Zone Offroad 6" Suspension System to lift your 2WD 2009-2013 Ford F150 and clear up to a 37" tire. Competitors will tell you how they maintain the factory ride, but Zone Offroad has stepped up the game by including new coil-over struts custom valved for larger tires, improved ride, and optimal handling.

Visually compare the Zone Offroad porterhouse knuckles to the chuck roast of the competition. Salivate over the fully cast, CNC machined, and resonant frequency tested knuckles that correct the tie rod and ball joint geometry with no track width change. Heavy main crossmembers are included with your meal. Choose your side of rear shock, and we'll fill in the rest with a 5" dual pin block kit that offsets the axle closer to the center of the wheel well compared to a standard setup.

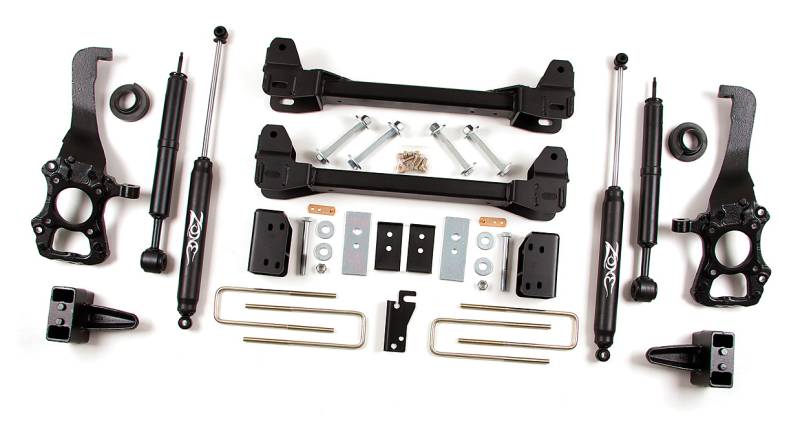

This kit is all inclusive, so don't look anywhere else, install a Zone Offroad system on your 2WD F150 and have no regrets.

Featured Technology & Benefits
Custom Valved Replacement Coil-over Strut
CNC Machined Steering Knuckles correctly drilled for the application
Heavy 1/4" thick crossmembers
No Track Width Change

Important Notes!

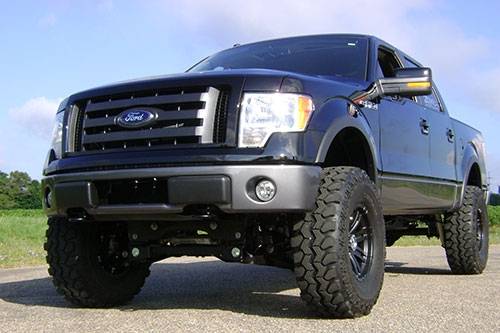

*Kit images show upgraded Nitro (black) shocks*
Vehicles equipped with factory powersteps will require E-Brake Relocation Bracket F5608 listed in the accessories.
Will not work with 17" wheels.
If using 18x9 wheels with 5.5" backspace, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
Certain models with a 2-piece rear driveshaft may require carrier bearing drop kit D5405.
Although rare, rear driveshaft extension part # F5601 may be required.
Kit includes a 5" rear block kit (#F2619) that typically nets a slight tail high stance. A 4" rear block kit (#F2419) is available in the options if a more level stance is preferred.
Will not fit Raptor models

This product fits the following applications:

09-13 Ford F150 2WD

Quick Specs

Front Lift Height: 6?
Front Lift Method: IFS w/Struts
Rear Lift Height: 5?
Rear Lift Method: Block & U-bolt Kit
Install Time Hrs: 8
Difficulty Level 1-5: 3
Wheel Size: 18 x 9
Back Spacing: 5?
Max Tire Size: 37 x 12.50
Wheel Size: 18x9
Back Spacing: 4.5?-5?
Max Tire Size: 35 x 13.50
Wheel Size: 20 x 9
Back Spacing: 5?-5.5?
Max Tire Size: 37 x 12.50
