Zone Offroad 4" Suspension Lift Kit System for 05-07 Ford F250, F350 Super Duty 4WD - F5 / F13

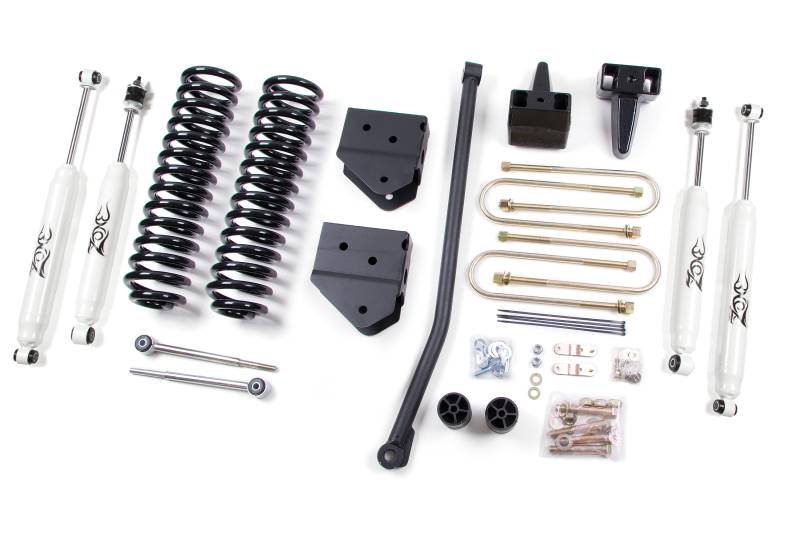

The revolutionary new Zone 4" radius arm drop bracket system features new front coil springs that are designed to not only ride great, but will hold up over the long haul. A 1-1/2" solid steel track bar is included to properly center the axle after lifting. This track bar features new oversized, highdurometer urethane bushings for long term performance. The shocks were custom valved to work perfectly with the new Zone coil springs to increase off road performance while still offering unmatched on road ride quality, and the rear kit comes with 5" blocks to replace your factory blocks.

Featured Technology & Benefits
New front coil springs capable of full coil bind offering off-road performance and great ride qualtiy
Radius arm drop brackets included to properly rotate the front axle
1-1/2" Solid steel track bar with urethane mounts to properly center the axle
New front & rear U-bolt with high nuts & washers
Rear 5" Block kit to eliminate the factory block - NO stacking blocks!
Performance custom valved Zone Shocks included

Important Notes!
Although rare, if your vehicle is equipped with both a stock 4" rear block and a top mounted over load spring, 4 of u-bolt part number UBT4035 may be required.
Dually trucks will require different rear u-bolts.
Vehicles equipped with 2 piece rear driveshaft's may required the carrier bearing to be lowered. If required, order part #F5401.
I have read and understand these important notes. Checking this box is required to add this kit to your shopping cart. Contact Zo

This product fits the following applications:

05-07 Ford F250 4WD Gas/Diesel
05-07 Ford F350 4WD Gas/Diesel

Quick Specs

Front Lift Height: 4?
Front Lift Method: Coil Springs & Bracket Kit
Rear Lift Height: 5?
Rear Lift Method: Block kit
Install Time Hrs: 6
Difficulty Level 1-5: 2
Wheel Size: 17 x 9
Back Spacing: 4.5?
Max Tire Size: 35 x 12.50
