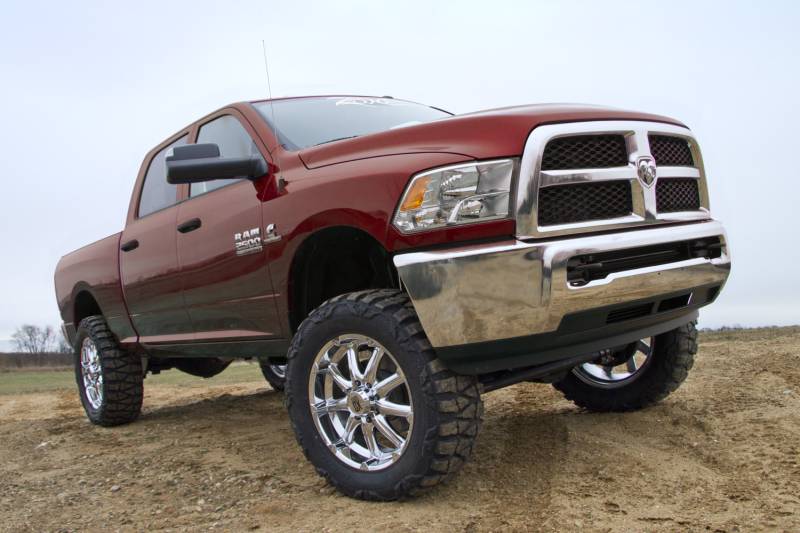

Zone Offroad 4" Suspension System Lift Kit for 2014-17 Ram 2500 (GAS) - D62

ZND62
Pricing: $1,036.60

Customize Your Item

- Driveline Adjustment -
 * required
- Driveline Adjustment -
 * required
- Shock Options -
 * required
- Steering Upgrades -
 * required
- Shock Boots -
 * required
Qty:
Free Shipping

Description

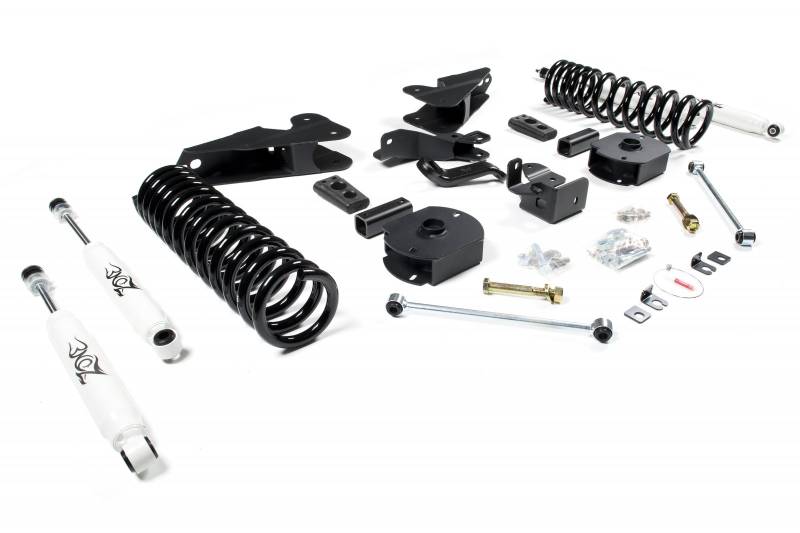

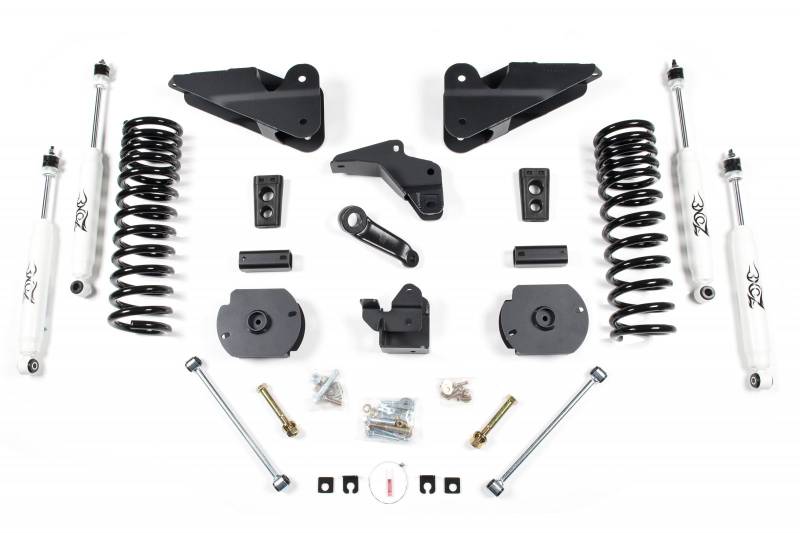

Zone Offroad 2014-17 Ram 2500 4" Radius Arm Drop Suspension System. This new lift system utilizes heavy duty drop brackets to relocate the new factory Ram radius arms. The new relocation brackets tie into the factory radius arm mounts as well as additional support to the frame. This relocation corrects the suspension geometry to compensate for the 4" of lift provided by the progressive rate coil springs.

Extended bump stops, dropped pitman arm, track bar relocation and brake line relocation round out the front components. In the rear, the new 4 link suspension designed is modified for 2.5" of lift via a new heavy duty coil spring spacer setup. The coil spring spacers located and bolt directly to the factory axle mount. The new provided track bar relocation bracket centers the axle. Extended sway bar links and bump stops round out the rear kit components.

Featured Technology & Benefits
Utilizes Heavy Duty Drop Brackets
Correct Suspension Geometry
Progressive Rate Coil Springs

Important Notes!
Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5405.
Not designed for factory rear airbag suspension models.
Fits 6.4L equipped models.
Will not fit Power Wagon models

This product fits the following applications:

14-17 Dodge/Ram Ram 2500 4WD Gas

Quick Specs

Front Lift Height: 4
Front Lift Method: Radius Arm Drop Brackets
Rear Lift Height: 2.5
Rear Lift Method: Coil Spring Spacer
Difficulty Level 1-5: 3
Wheel Size: 17x9+
Back Spacing: 4.5?
Max Tire Size: 35 X 12.50
Wheel Size: 17x9+
Back Spacing: 5.625?
Max Tire Size: 37 X 12.50
