Motobilt JEEP YJ FULL WIDTH AXLE CONVERSION KIT - MB1502

MB1502
The Motobilt Jeep YJ full width axle conversion kit is a simple way to install a Chevy Dana 44 or Dana 60 front axle in your Jeep YJ. This kit also works with older model Ford 44 and 60 fronts from the 78/79 range. This kit fits Jeep YJ's from 1987 to 1995. For more details see below.
Availability: Please be aware that Motobilt products may be subject to a lead time of 14 days prior to shipment.

Description

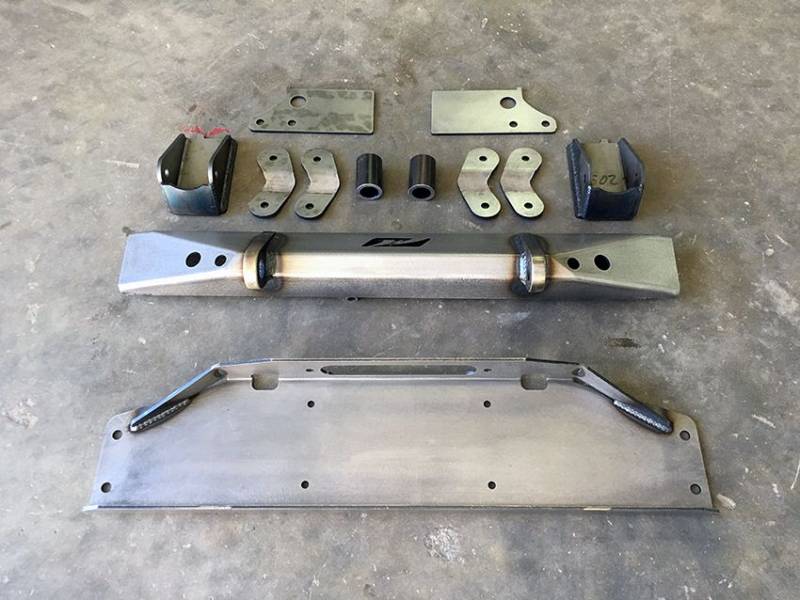

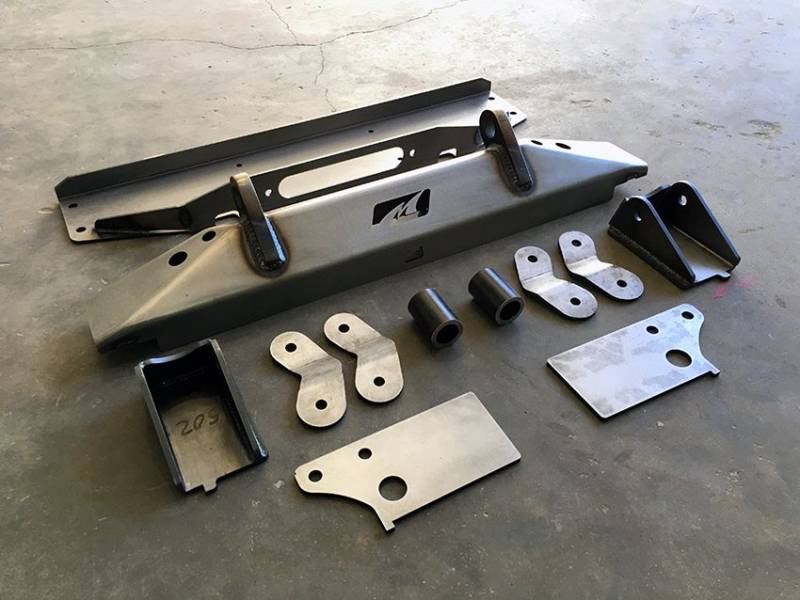

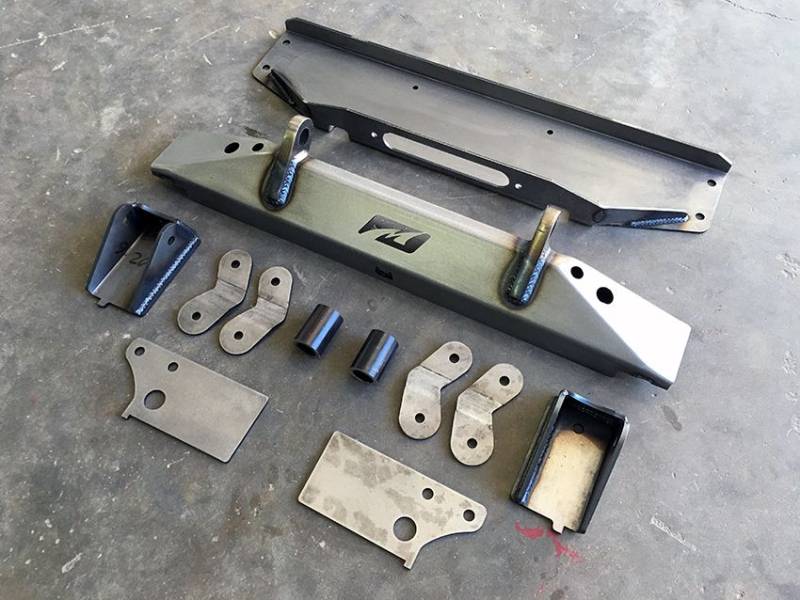

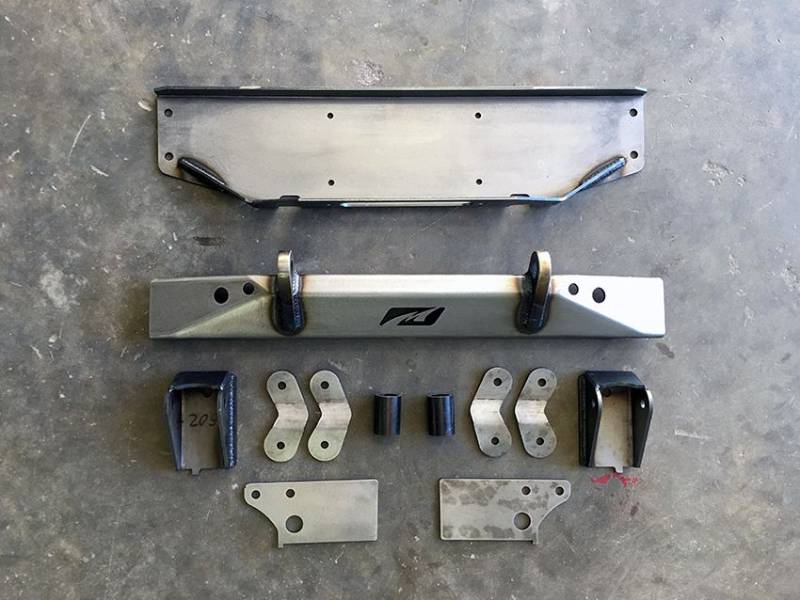

Motobilt offers high quality fabricated parts for the DIY fabricator. This kit is NOT a bolt on product. It requires welding to install. The Motobilt Jeep YJ full width axle conversion kit was designed for ultimate strength and to make your Jeep look great at the same time. The kit features a removable winch plate, stubby front bumper assembly, 3/4" d-ring mounts that pass through the bumper and welded on both sides, a shackle reversal spring buckets, shackle bushing tubes for the frame, and 4 inch long offset shackles. The kit moves the front axle forward as much as possible without relocating the steering box. The kit is designed to work with Jeep YJ leafs springs. The front bumper features a built in bottle opener on the bottom side. The kit will ship with a jig to drill through the frame to locate the rear shackle hangers. This kit was designed to keep the ride height as low as possible. The rear shackle bushings will be located mid way through the frame rail.

The bumper, and winch plate are fabricated from 3/16" high strength steel plate. The side frame plate, spring buckets, and shackles are fabricated from 1/4" high strength steel plate. The included d-ring mounts are fabricated from 3/4" thick high strength steel plate.

This kit does not include leaf springs, u-bolts, u-bolt plates, shocks, shock mounts, poly bushings and longer brake lines. Motobilt can supply these parts for an additional price.
