ARB AIR LOCKER TOYOTA 8 INCH 50 MM BEARING 30 SPLINE ALL RATIOS

ARBRD132
Pricing: $999.00

Customize Your Item

- Compressor System -
 * required
- Tire Inflation Kit -
 * required
- EZ Tire Deflator -
 * required
- Heavy Duty Air Line Kit -
 * required
- Carrier Bearings -
 * required
Qty:
Free Shipping

Description

Toyota 8"

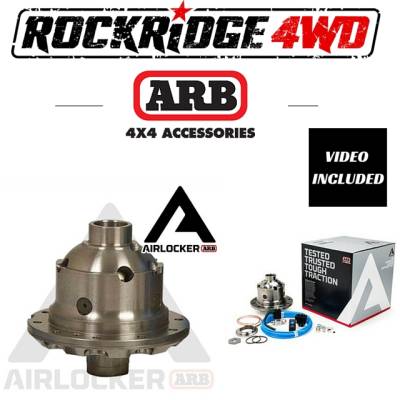

ARB 132 Air Locker


Differential: Toyota 8" "V6", "4cyl", 8" Highpinion
Gear Ratio: All
Axle Splines: 30
Ring Gear Bolts: 10 (not included)
Manufacturer: ARB
Warranty: 5 Years


Tech Note: ARB RD132 uses 50mm bearing journals. If your current differential has 45mm bearing journals (4 cylinder models) you will need the higher rated 50mm ID carrier bearing part # BRG32010X

This locker will not take the place of a factory e-locker

"With our improved two piece design available right across the range, along with the addition of forged gears and an industry leading five year warranty, ARB Air Lockers are now better built and better backed than ever before.

Created to provide 100% traction on demand, without sacrificing any of your vehicle's highway driving performance, ARB Air Lockers employ a 12 volt ARB Air Compressor designed to activate (and deactivate) a solid and durable locking mechanism inside the differential. This gives you the traction you need, when you need it, all at the flip of a switch and all within the comfort of the driver's seat.

The advantage of the ARB Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional 'open' differential.

In addition to providing outright improvements to a 4x4's off road capabilities, the Air Locker offers significant environmental benefits. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact."

Features & Benefits:
5 Year Warranty*
Provides 100% traction on demand without affecting on road drivability or driveline wear.
Vastly improved traction means less reliance on momentum, which reduces the likelihood of vehicle damage and environmental impact.
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver s seat.
Ultra durable and extremely strong - only the highest quality materials used in construction.
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability.
Thoroughly tested and proven design trusted and used in over 80 countries around the world.
Front and rear Air Lockers available for most makes and models.
4WD & 2WD applications.
Easy installation and maintenance no special tools, skills or additives required.

Vehicle Type

Fits Toyota 8" Solid front or rear axles only
Vehicle Applications:
Rear:
1984-2009 Toyota 4Runner

1979-1995 Toyota Hilux Pickup (North America)
1979-2011 Toyota Hilux Pickup (Rest of the world)
2003-2009 Lexus GX470
1984-1990 Toyota Landcruiser II 70 series Bundera (LJ70/RJ70)
1990-1996 Toyota Landcruiser Prado 70 Series
1993-2002 Toyota Landcruiser Prado 90
2002-2009 Toyota Landcruiser Prado 120
1984-2009 Toyota Hilux Surf
2005-2009 Toyota Fortuner
2007-2009 Toyota FJ Cruiser
1998-2007 Toyota Landcruiser HZJ105
1998-2007 Toyota Landcruiser FZJ105
1990-1997 Toyota Landcruiser HDJ80/81
1990-1997 Toyota Landcruiser HZJ80/81
1991-1992 Toyota Landcruiser FJ80/81
1993-1997 Toyota Landcruiser FZJ80/81

Front (solid axle models):
1984-1985 Toyota 4Runner

1979-1985 Toyota Hilux Pickup (North America)
1979-1997 Toyota Hilux Pickup (Rest of the world Solid front axle)
1991-Present Toyota Land Cruiser 70 ( HZJ/FJ/FZJ/GRJ/VDJ 70 71 73 74 75 76 77 78 79 Series
1984-1990 Toyota Landcruiser II 70 series Bundera LJ/RJ/KZJ 70 71 73 78
1990-1996 Toyota Landcruiser Prado 70 Series
1998-2007 Toyota Landcruiser HZJ105 FZJ105
1990-1997 Toyota Landcruiser HDJ80/81 FZJ80/81 HZJ80/81 FJ80/81
1990-2007 Toyota Landcruiser Burbuja & Autana (venezuela)
1991-1992 Toyota Landcruiser FJ80/81
1993-1997 Toyota Landcruiser FZJ80/81
