ARB AIR LOCKER TOYOTA LANDCRUISER '98 & UP 9.5 INCH 32 SPLINE

ARBRD152
Pricing: $999.00

Customize Your Item

- Compressor System -
 * required
- Tire Inflation Kit -
 * required
- EZ Tire Deflator -
 * required
- Heavy Duty Air Line Kit -
 * required
Qty:
Free Shipping

Description

Toyota 9.5", Rear

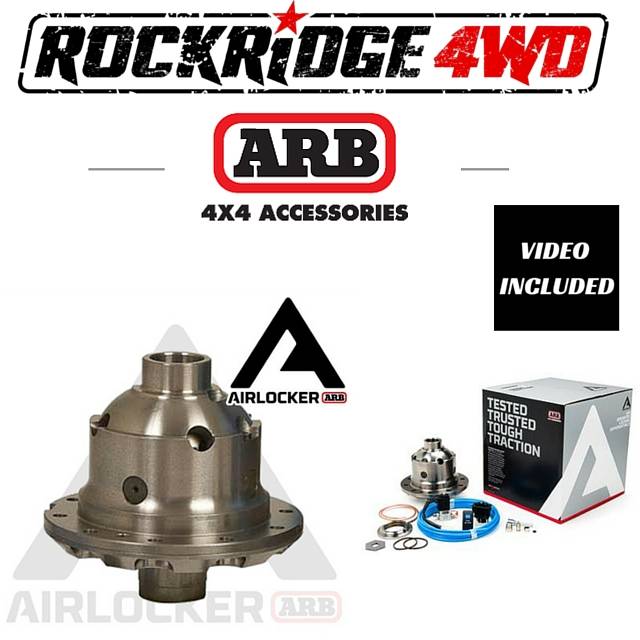

ARB 152 Air Locker


Differential: Toyota 9.5"
Gear Ratio: All
Axle Splines: 32
Ring Gear Bolts: 12 (not included)
Manufacturer: ARB
Warranty: 5 Years

"With our improved two piece design available right across the range, along with the addition of forged gears and an industry leading five year warranty, ARB Air Lockers are now better built and better backed than ever before.

Created to provide 100% traction on demand, without sacrificing any of your vehicle's highway driving performance, ARB Air Lockers employ a 12 volt ARB Air Compressor designed to activate (and deactivate) a solid and durable locking mechanism inside the differential. This gives you the traction you need, when you need it, all at the flip of a switch and all within the comfort of the driver's seat.

The advantage of the ARB Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional 'open' differential.

In addition to providing outright improvements to a 4x4's off road capabilities, the Air Locker offers significant environmental benefits. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact."


Features & Benefits:
5 Year Warranty*
Provides 100% traction on demand without affecting on road drivability or driveline wear.
Vastly improved traction means less reliance on momentum, which reduces the likelihood of vehicle damage and environmental impact.
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver s seat.
Ultra durable and extremely strong - only the highest quality materials used in construction.
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability.
Thoroughly tested and proven design trusted and used in over 80 countries around the world.
Front and rear Air Lockers available for most makes and models.
4WD & 2WD applications.
Easy installation and maintenance no special tools, skills or additives required.

Vehicle Type

Vehicle Applications:
Rear Diff:
2007-2014 Toyota Tundra w/ 4.6L 1UR-FE or 4.7L 2UZ-FE
1998-2007 Toyota Landcruiser HZJ105 FZJ105
1998-2007 Toyota Landcruiser UZJ100
HDJ100 FZJ100
1999-2007 Lexus LX470
1998-2003 Toyota Land cruiser Amazon
1998-2007 Toyota Cygnus
1999-2014 Toyota Landcruiser 70 Series HZJ71 HZJ76 HZJ78 HZJ79 HDJ78 HDJ79
1999-2014 Toyota Landcruiser 70 Series FZJ71 FZJ74 FZJ76 FZJ78 FZJ79
2007-2014 Toyota Landcruiser 70 Series VDJ76 VDJ78 VDJ79, GRJ71 GRJ76 GRJ78 GRG79
2001-2008 Toyota Landcruiser Machito (Venezuela)
<2001-2008 Toyota Landcruiser Burbuja and Autana (Venezuela)
2008-Present Toyota Land Cruiser 200 Series GRJ200 URJ200 VDJ200
2008-Present Lexus LX570
