BDS Suspension 4" Lift Kit for 1973 - 1976 GM 4WD K20 / K25 3/4 ton Suburban and pickup truck  -110H

BDS110H

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

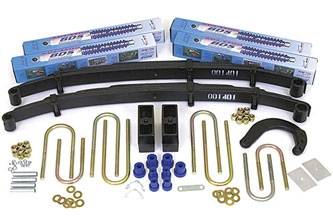

This lift kit includes new u-bolts, urethane spring bushings, brake line relocation brackets and new front and rear hydraulic shocks. A 4" steering arm is also included to return the steering angles back to factory location.

Pricing: $869.00

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Transfer Case Drop -
 * required
- Spring Eye Bolts -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

This lift kit includes new u-bolts, urethane spring bushings, brake line relocation brackets and new front and rear hydraulic shocks. A 4" steering arm is also included to return the steering angles back to factory location.

The rear lift has many options including tapered lift blocks, blocks and add-a-leafs, or Glide-Ride leaf springs.

Features

  • Important Kit Notes

    • 1. The 3/4 ton came standard with 56" eye to eye rear leaf springs. However, some were produced with 52" rear springs. Be sure to measure your factory rear leaf springs before ordering.
    • 2. If equipped with a factory front sway bar, a sway bar drop kit is available in the accessories section.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/15 x 8 and 3-1/2" back spacing
    • Est. Installation: 5 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1973 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1974 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1975 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1976 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1973 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1974 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1975 Chevy / GMC Suburban 3/4 Ton 4WD
    • 1976 Chevy / GMC Suburban 3/4 Ton 4WD
