BDS Suspension 8" Lift Kit for 1973 - 1976 GM 4WD K5 Blazer/Jimmy, K10 / K15 1/2 ton Suburban and pickup truck   -119H

BDS119H
Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.
Was: $1,473.88
Sale: $1,400.18
Save: 5%
Save: $73.70

Customize Your Item

- Spring Eye Bolts -
 * required
- We also recommend -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

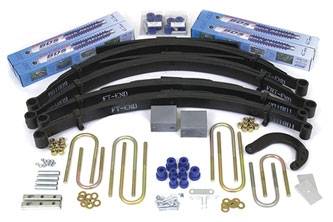

This lift kit includes new u-bolts, urethane spring bushings, brake line relocation brackets, sway bar drop brackets, 4" steering arm, 3" steering block, and transfer case drop as well as many other options.

The rear lift kit includes new 6" rear Glide-Ride leaf with all the performance features of the front spring with a 2" block and u-bolts.

Features

  • Important Kit Notes

    • 1. The rear springs that come in this kit are designed to replace stock 52" eye to eye springs. Some vehicles produced during this time period were manufactured with 56" rear springs. You must measure your stock springs (center of eye to center of eye) before order to make sure you get the correct springs.
    • 2. Both driveshafts will need to be lengthened, exhaust modification required and aftermarket extended brake lines will be required.
    • 3. Emergency brake cable extension may be required.
    • 4. If your vehicle is equipped with a front anti-sway bar, order the anti-sway bar shackle link kit listed in the accessories.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 38" x 15" w/15 x 10 and 3-1/2" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 5

    Vehicle Fitment Information

    • 1973 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1974 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1975 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1976 Chevy / GMC 1/2 Ton Pickup 4WD
    • 1973 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1974 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1975 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1976 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1973 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1974 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1975 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1976 Chevy / GMC Suburban 1/2 Ton 4WD
