BDS Suspension 6" Suspension Lift Kit for 1999-2004 Ford F250/F350 4WD pickup truck - 1302H

BDS1302H

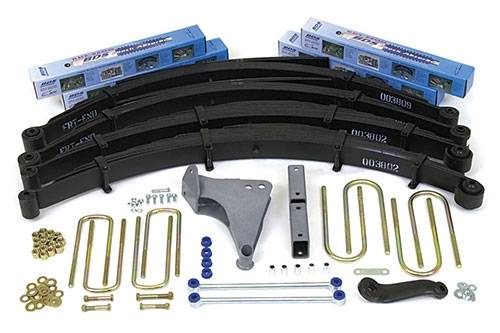

This kit comes with two front Glide-Ride Leaf Springs with bolt style leaf alignment clamps, anti-friction pads, and tapered leafs for smooth ride through wheel travel. The box kit includes a track bar relocation bracket, extended length sway bar links, pitman arm for steering correction, bump stop extensions, and u-bolts.
Pricing: $1,732.17

Customize Your Item

- Driveshaft -
 * required
- Front U-Bolt -
 * required
- Shock Boot Selection -
 * required
- Front Shock Selection -
 * required
- Rear Shock Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Steering Stabilizer -
 * required
- Sway-Bar and Accessories -
 * required
- Recoil Traction Bars -
 * required
Qty:
Free Shipping

Description

This kit comes with two front Glide-Ride Leaf Springs with bolt style leaf alignment clamps, anti-friction pads, and tapered leafs for smooth ride through wheel travel. The box kit includes a track bar relocation bracket, extended length sway bar links, pitman arm for steering correction, bump stop extensions, and u-bolts.

The rear is lifted with 5" Block and add-a-leaf or the optional 6" Glide-Ride Leaf Springs and u-bolts.

* Important: Critical selections must be made while customizing this kit.

Features

  • Important Kit Notes

    • 1. These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
    • 2. Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
    • 3. The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
    • 4. Will not fit dually applications.
    • 5. If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
    • 6. The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 36" x 12.50" w/16 x 10 and 4" back spacing
    • Est. Installation: 10 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1999 Ford F250 / F350
    • 2000 Ford F250 / F350
    • 2001 Ford F250 / F350
    • 2002 Ford F250 / F350
    • 2003 Ford F250 / F350
    • 2004 Ford F250 / F350
