BDS Suspension 8" Lift Kit for 1977 - 1987 GM 4WD K20 / K25 3/4 ton Suburban and Pickup Truck   -134H

BDS134H
Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.
Pricing: $1,708.73

Customize Your Item

- Spring Eye Bolts -
 * required
- We also recommend -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

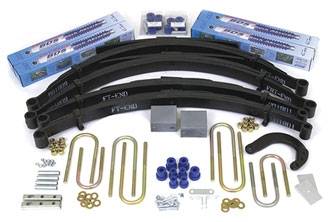

This lift kit includes new u-bolts, urethane spring bushings, brake line relocation brackets, sway bar drop brackets, 4" steering arm, 3" steering block, and transfer case drop as well as many other options.

The rear lift kit includes new 6" rear Glide-Ride leaf with all the performance features of the front spring with a 2" block and u-bolts.

Features

  • Important Kit Notes

    • 1. Both driveshafts may need to be lengthened.
    • 2. Aftermarket extended brake lines required for installation.
    • 3. Exhaust modification may be required to clear front driveshaft.
    • 4. Emergency brake cable extension kit may be required.
    • 5. #001408 and #001608 come with OE style rubber bushings installed.
    • 6. For rear spring applications, you MUST measure the eye to eye dimension of the original springs before ordering lifted springs. If your vehicle is equipped with a front anti-sway bar, order the anti-sway bar shackle link kit listed in the accessories. Not all ton rear springs are 56" and not all ton rear springs are 52".

  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 38" x 15.50" w/15 x 10 and 3-1/2" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 4

    Vehicle Fitment Information

    • 1977 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1978 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1979 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1980 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1981 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1982 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1983 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1984 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1985 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1986 Chevy / GMC 3/4 Ton Pickup 4WD
    • 1987 Chevy / GMC 3/4 Ton Pickup 4WD

    Details

    Shipping Information

    • Item Requires Shipping
    • Free Shipping
