BDS Suspension 3" Lift Kit for 2012-18 Jeep Wrangler JK 2 door 4WD - Standard Jeep or Rubicon - 1415H

Was: $836.75
Sale: $794.91
Save: 5%
Save: $41.84

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Control Arm Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Shock Boot Selection -
 * required
- Rear Adjustable Track Bar -
 * required
- Rear Lower Control Arms -
 * required
- Shock Options -
 * required
- Adjustable Track Bar -
 * required
- Front Lower Control Arms -
 * required
- Steering Stabilizer -
 * required
Free Shipping

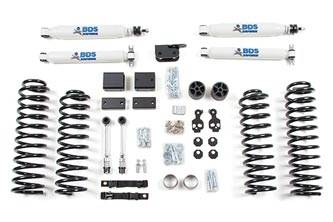

Specifically intended for 2012-18 models, this system includes an exhaust extension kit that maximizes allowable wheel travel with the factory front driveshaft. This kit comes with 3" Pro-Ride Coil Springs capable of full coil bind and 2" bump stop extensions to control the compression travel, but increase wheel travel.

Brake line relocation brackets are supplied to handle the added wheel travel. Many companies don't include anything to correct your alignment, but BDS includes octo cam washers for the front lower control arms to fine tune the caster angle.

Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. In the rear, sway bar drop brackets are included instead of longer sway bar links to allow the use of a factory wheel and larger tire. To correct the rear axle shift from the lift, a rear frame mounted track bar relocation bracket is included.

The kit comes standard with NX² series custom valved shock absorbers for a smooth ride.

BDS carries a large selection of accessories for Jeep JK's so check out what is available for this 3" lift by customizing your system.


  • Important Kit Notes

    • 1. Removing the OE spring isolators will result in a 1" lift if desired.
    • 2. 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
    • 3. This kit is FMVSS No.126 Compliant
    • FMVSS No.126 compliant
    • The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.

    • BDS Suspension is leading the industry by independently testing all suspension kits to verify our kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.
    • 4. This kit is right hand drive compatible.
    • Right Hand Drive CompatibleFollow right hand drive installation instructions when installing this kit on a right hand drive vehicle.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/16 x 8 and 4-1/2" back spacing
    • w/17, 18, 20 x 9 and 4.5" back spacing
    • Est. Installation: 6 hours
    • Difficulty Level (easy 1 - 5 complicated): 2

    Vehicle Fitment Information

    • 2012 Jeep Wrangler JK 2 Door
    • 2013 Jeep Wrangler JK 2 Door
    • 2014 Jeep Wrangler JK 2 Door
    • 2015 Jeep Wrangler JK 2 Door
    • 2012 Jeep Wrangler RHD JK 2 Door
    • 2013 Jeep Wrangler RHD JK 2 Door
    • 2014 Jeep Wrangler RHD JK 2 Door
    • 2015 Jeep Wrangler RHD JK 2 Door
