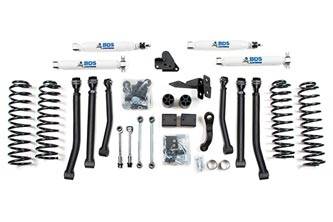

This kit comes with 4" Pro-Ride Coil Springs capable of full coil bind and 3" bump stop extensions to control the compression travel. To handle the added wheel travel, brake line relocation brackets are included or BDS stainless steel lines are available.
This system comes complete with front and rear fixed length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions. BDS control arms come standard with OE grade rubber bushings.
To improve the steering and handling geometry, BDS includes a front track bar relocation bracket and a dropped pitman arm. Front Ultimate Sway Bar Disconnects are included for non-rubicon models or fixed links for rubicon models for use with the factory disconnect system. Specific for 2007 - 2011, BDS exhaust extensions are included to maintatin front driveshaft clearance at full droop.
In the rear, an axle mounted track bar relocation bracket is included that has a built in support gusset that ties into the bump stop pad. JK's are known for broken welds on the factory track bar mount when wheeled hard, so BDS solved the problem with this added support. The kit comes standard with NX² series custom valved shock absorbers for a smooth ride.
BDS carries a large selection of accessories for Jeep JK's so check out what is available for this 4" lift by customizing your system.
