BDS Suspension 8" Lift Kit for 1988 - 1991 Chevrolet/ GMC 4WD K5 Blazer/ Full Size Jimmy, 1/2 ton Suburban - 147H

BDS147H
Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.
Was: $1,490.02
Sale: $1,415.51
Save: 5%
Save: $74.51

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Spring Eye Bolts -
 * required
- Rear Lift Kit Upgrades: -
 * required
- We also recommend -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Shock Options -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Front lift is accomplished using our acclaimed Glide-Ride Leaf Spring Suspension System, featuring stand up, bolt style leaf alignment clamps, anti-friction pads, and tapered leafs.

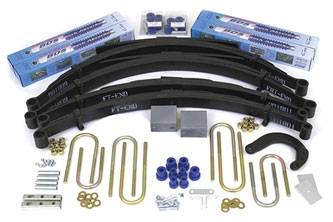

This lift kit includes new u-bolts, urethane spring bushings, brake line relocation brackets, sway bar drop brackets, 4" steering arm, 3" steering block, and transfer case drop as well as many other options.

The rear lift kit includes new 6" rear Glide-Ride leaf with all the performance features of the front spring with a 2" block and u-bolts.

Features

  • Important Kit Notes

    • 1. If equipped with factory front dual shocks, select the additional two auxiliary shocks in the options. Both gas and hydraulic auxiliary shocks are available.
    • 2. The rear springs that come in this kit are designed to replace stock 52" eye to eye springs. Some vehicles produced during this time period were manufactured with 56" rear springs. You must measure your stock springs (center of eye to center of eye) before order to make sure you get the correct springs.
    • 3. Both driveshaft will need to be lengthened, exhaust modification required and aftermarket extended brake lines will be required.
    • 4. If your vehicle is equipped with a front sway bar, order the sway bar shackle link kit listed in the accessories.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 38" x 15" w/15 x 10 and 3-1/2" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 5

    Vehicle Fitment Information

    • 1988 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1989 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1990 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1991 Chevy / GMC K5 Blazer/Fullsize Jimmy 4WD
    • 1988 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1989 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1990 Chevy / GMC Suburban 1/2 Ton 4WD
    • 1991 Chevy / GMC Suburban 1/2 Ton 4WD
