BDS Suspension 6" Lift Kit for 1988-1998 Chevrolet/GMC 4WD K1500 1/2 ton and K2500 6 lug 3/4 ton pickup trucks - 193H

BDS193H
Was: $2,173.59
Sale: $2,064.91
Save: 5%
Save: $108.68

Customize Your Item

- Shock Boot Selection -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Accessories -
 * required
- Shock Selection -
 * required
- Steering Stabilizers -
 * required
Qty:
Free Shipping

Description

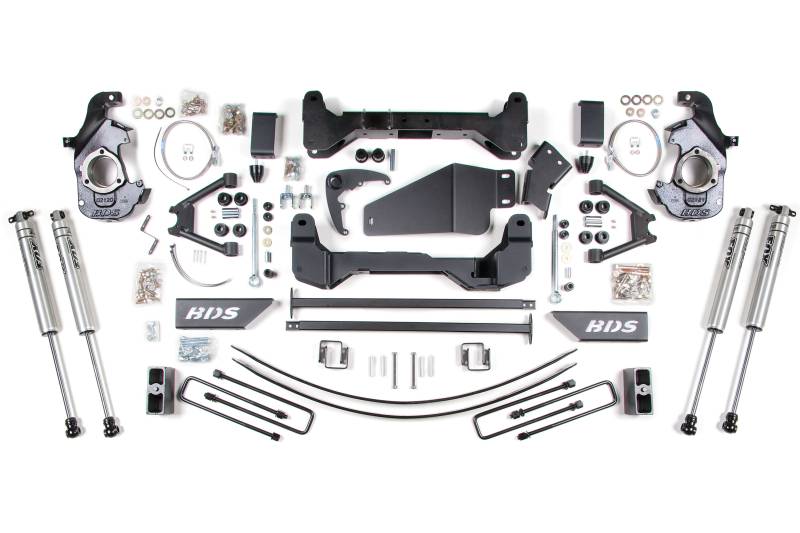

This tightly engineered 6" suspension lift kit is designed around two heavy duty upper A-arms, one-piece 1/4" laser cut high clearance crossmembers and replacement steering knuckles. This combination offers zero track width change unlike many knuckle kits on the market.



The high clearance crossmembers increase ground clearance for off road performance while compression struts support the crossmembers under impact. This lift kit also includes replacement steering knuckles to maintain proper steering angles and ball joint angles, front stainless steel braided brake lines for optimum performance and ease of installation, plus a differential skid plate is included for off road protection.



Customize this 6" BDS suspension lift kit with upgrades like gas shocks, single or dual steering stabilizers, traction bars, rear stainless steel braided brake lines, and Glide-Ride Leaf Springs.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/15 x 8 and 3-5/8" back spacing
    • 35" x 12.50" w/16 or 17 x 8 and 4-1/2" back spacing
    • 35" x 12.50" w/20 x 9 and 5-1/4" back spacing

*Trimming may be required*

Important Kit Notes

  • 1. Requires exhaust modification.
  • 2. Special tool (Kent Moore Tools Part #J-36202-A) required to unload/load torsion bars. Not available through BDS.
  • 3. Requires frame bracket modification and differential mount modification.
  • 4. Not recommended for long box extended cab models due to crossmember interference.
  • 5. All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.
  • 6. Aftermarket wheels required. (see chart in back)
  • 7. System will not work on some '88-'95 vehicles equipped with spindle mounted front ABS sensor.
  • 8. Traction bars will not work on regular cab, short box models.
  • Est. Installation: 8 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information

  • 1988 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1989 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1990 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1991 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1992 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1993 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1994 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1995 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1996 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1997 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1998 Chevy / GMC 1/2 Ton Pickup 4WD
  • 1988 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1989 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1990 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1991 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1992 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1993 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1994 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1995 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1996 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1997 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug
  • 1998 Chevy / GMC 3/4 Ton Pickup 4WD 6 Lug

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Features

  • Important Kit Notes

    • 1. Requires exhaust modification.
    • 2. Special tool (Kent Moore Tools Part #J-36202-A) required to unload/load torsion bars. Not available through BDS.
    • 3. Requires frame bracket modification and differential mount modification.
    • 4. Not recommended for long box extended cab models due to crossmember interference.
    • 5. All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.
    • 6. Aftermarket wheels required. (see chart in back)
    • 7. System will not work on some '88-'95 vehicles equipped with spindle mounted front ABS sensor.
    • 8. Traction bars will not work on regular cab, short box models.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35" x 12.50" w/15 x 8 and 3-5/8" back spacing
    • 35" x 12.50" w/16 or 17 x 8 and 4-1/2" back spacing
    • 35" x 12.50" w/20 x 9 and 5-1/4" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 4
