BDS Suspension 3-1/2" Lift Kit 1987 - 1995 Jeep Wrangler YJ - 409H

(0) Reviews: Write first review
BDS409H
Pricing: $1,147.85

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Would you like -
 * required
- Shock Boot Selection -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
- Rear 1" Shackles -
 * required
Qty:
Free Shipping

Description

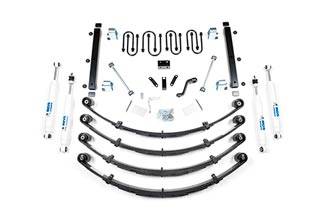

This kit comes with BDS front and rear Glide-Ride Leaf Spring Suspension System. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. If you are actually capable of breaking the main leaf, the military wrap will allow you to limp home off the trail. These springs are made to perform offroad as well as get you to and from work.

The box kit includes new urethane spring eye bushings, u-bolts, front and rear track bar relocation brackets to center the axle, transfer case drop kit to ease the drive line angles, brake line relocation brackets, bump stop extensions, a power steering pitman arm for corect steering angles, and extended sway bar link.

Features

  • Important Kit Notes

    • 1. May require driveshaft lengthening for 13" (u-joint to u-joint) driveshaft.
    • 2. May require larger diameter driveshaft if equipped with a 41-1/2" front driveshaft.
    • 3. Extended shackles recommended to clear military wrap.
    • 4. Models with accessories like hardtop, rear tire carrier, roof rack etc., should use #004351 springs on front and rear.
    • 5. When combining lifted shackles with a 3.5" suspension system, a tail shaft eliminator kit and a "CV" style rear driveshaft may be required to eliminate driveline vibration.

    • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 33" x 12.50" w/15 x 8 and 3-1/2" back spacing
    • Est. Installation: 6 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 1987 Jeep Wrangler YJ
    • 1988 Jeep Wrangler YJ
    • 1989 Jeep Wrangler YJ
    • 1990 Jeep Wrangler YJ
    • 1991 Jeep Wrangler YJ
    • 1992 Jeep Wrangler YJ
    • 1993 Jeep Wrangler YJ
    • 1994 Jeep Wrangler YJ
    • 1995 Jeep Wrangler YJ
