BDS Suspension 8" Long Arm Kit for the 2003 - 2007 3/4 Ton & 1 Ton 4WD Diesel Pickup  - 653H

BDS653H
Was: $2,275.82
Sale: $2,162.02
Save: 5%
Save: $113.80

Customize Your Item

- Other Options -
 * required
- Transmission -
 * required
- Brake Lines Rear -
 * required
- Traction Bars -
 * required
- Rear Lift Kit Upgrades: -
 * required
- Shock Boot Selection -
 * required
- Engine Type -
 * required
- Front Shock Selection -
 * required
- Adjustable Track Bar -
 * required
- Accessories -
 * required
- Brake Lines -
 * required
- Steering Stabilizer -
 * required
- Sway Bar Disconnect Kit -
 * required
- Rear Shock Selection -
 * required
Qty:
Free Shipping

Description

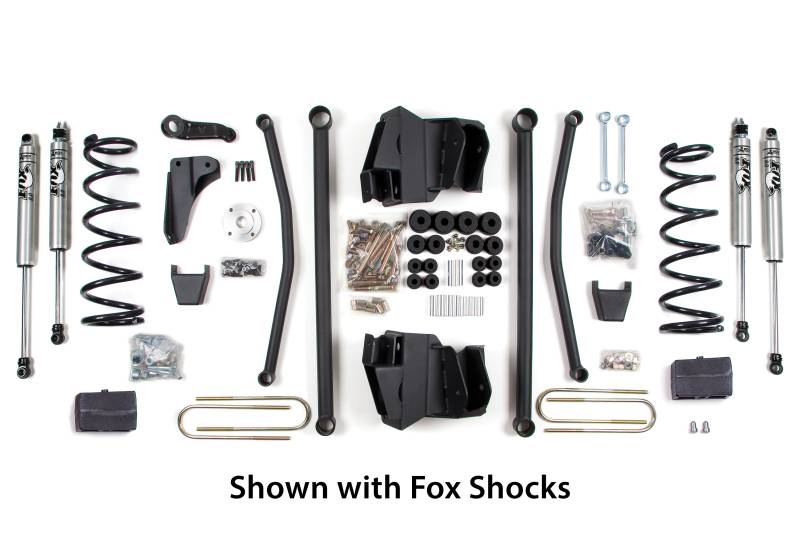

This 8" lift kit includes progressive rate, front Pro-Ride Coil Springs and heavy duty, long upper and lower control arms. The long arm lift kit includes solid upper long arms and tubular lowers to reduce caster change through wheel travel creating a more controlled feeling in the steering wheel both on and off road. This 4-Link long arm system retains the factory triangulation of the arms as well which adds to the stability of the suspension system. What does this mean ? Basically it drives great both on and off road. All four control arms are greasable for long term performance.

A dropped forged pitman arm is included to maintain the factory steering angles. A track bar relocation bracket properly centers the axle under the vehicle. Extended bump stops and sway bar links maintain the OE characteristics.

The rear of the Dodge Ram is lifted via a 5" block kit or optional Glide-Ride Leaf Springs.

Not only is the kit designed to last, but so is the finish. Every bracket and control arm is powder coated black for long term performance.

Features

  • Important Kit Notes

    • 1. This system is designed for diesel applications, but will work on gas models with 6" coils and 2" coil spacers.
    • 2. Rear U-bolts will not fit dually applications.
    • 3. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter.
    • 4. Some 4" rear axles with the dual overload option will require four u-bolts 4068.
    • 5. May require additional driveline modification.
  • Manufacturer Notes

    BDS Suspension Lift Kit Warranty

    No Fine Print Warranty

    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 38" x 14.0" w/17 x 9 and 4.5" back spacing
    • Est. Installation: 8 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    Vehicle Fitment Information

    • 2003 Dodge / Ram Ram 1 Ton Pickup
    • 2004 Dodge / Ram Ram 1 Ton Pickup
    • 2005 Dodge / Ram Ram 1 Ton Pickup
    • 2006 Dodge / Ram Ram 1 Ton Pickup
    • 2007 Dodge / Ram Ram 1 Ton Pickup
    • 2006 Dodge / Ram Ram 1/2 Ton Mega Cab
    • 2007 Dodge / Ram Ram 1/2 Ton Mega Cab
    • 2003 Dodge / Ram Ram 3/4 Ton Pickup
    • 2004 Dodge / Ram Ram 3/4 Ton Pickup
    • 2005 Dodge / Ram Ram 3/4 Ton Pickup
    • 2006 Dodge / Ram Ram 3/4 Ton Pickup
    • 2007 Dodge / Ram Ram 3/4 Ton Pickup
