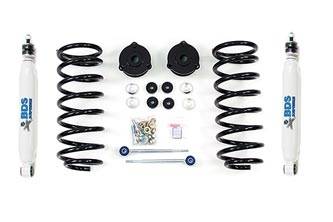

BDS Suspension 3" Suspension Lift Kit for 2010-2016 Toyota 4Runner 4WD and 2007-2014 Toyota FJ Cruiser - 809H

Pricing: $535.58

Customize Your Item

- Shock Boot Selection -
 * required
Free Shipping


BDS Suspension offeres a 3" suspension lift kit to improve the look and performance of late model 4Runners with clearance for up to 285/70r17 tires. Based on the current FJ Cruiser systems, this new fitment is up to whatever use and abuse you can throw at it. Up front the system uses a combination top mounted strut spacer along with a preload spacer to lift the vehicle and retain the factory geometry. This setup allows the suspension to operate smoothly without forcing upper ball joints to max out at full droop causing premature wear, a common issue with other 3" kits that just use spacer to provide lift.

In the rear this kit replaces the factory coil springs with 2" BDS ProRide coil springs to level the stance. These coil springs are capable of full coil bind from repeated use and abuse and guaranteed to always spring back to original ride height. With the new stance set, NX² series shocks are used to retain the ride quality and allow full articulation of the rear suspension. Lastly the rear sway bar links are replaced with longer links to allow the sway bar to operate in its ideal position with the lift installed. Get more out of your late model 4Runner with BDS Suspension.

Important Kit Notes
1. Strut compressor required for installation.
2. Other equivalent tire/wheel size options should work - may require minor trimming for some combinations.
4Runner Models
Will not work with factory X-REAS shock system.
Will not work with factory KDSS sway bar system

Tire & Wheel Combinations
FJ Cruiser | w/285/75 R16 and Stock back spacing
4Runner | w/275/60R20 and Stock/4.75" back spacing
4Runner | w/285/70R17 and 17 x 8 w/ 5" back spacing
Est. Installation: 5 hours
Difficulty Level (easy 1 - 5 complicated): 2

Vehicle Type

Vehicle Fitment Information

2010 Toyota 4 Runner 4WD
2011 Toyota 4 Runner 4WD
2012 Toyota 4 Runner 4WD
2013 Toyota 4 Runner 4WD
2014 Toyota 4 Runner 4WD
2015 Toyota 4 Runner 4WD
2016 Toyota 4 Runner 4WD
2007 Toyota FJ Cruiser
2008 Toyota FJ Cruiser
2009 Toyota FJ Cruiser
2010 Toyota FJ Cruiser
2011 Toyota FJ Cruiser
2012 Toyota FJ Cruiser
2013 Toyota FJ Cruiser
2014 Toyota FJ Cruiser


BDS Suspension Lift Kit Warranty
No Fine Print Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period
