BDS Suspension 2005-2015 Toyota Tacoma 4wd 6" System  -815H

BDS815H
Was: $1,899.76
Sale: $1,804.77
Save: 5%
Save: $94.99

Customize Your Item

- Shock Boot Selection -
 * required
- Shock Options -
 * required
Qty:
Free Shipping

Description

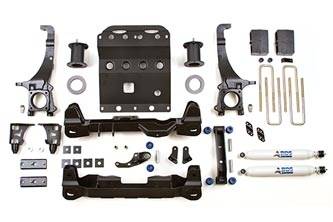

This new Tacoma IFS suspension lift system follows BDS proven design standards using full one-piece front & rear crossmembers coupled with precision machined ductile cast iron steering knuckles. The steering knuckles are designed to work within the factory traction control constraints and provide stock-like handling characteristics. The knuckles are also considerably more robust in both the mass and strength categories over the rather light-duty stock components.

The crossmembers are built from ¼" steel plate and have integrated differential mounts that work with the new provided differential mounts to properly drop and reposition the front differential for optimal CV and front driveshaft angles.

The whole package is protected by a new belly pan skid plate that runs from the front to rear crossmember and integrates cleanly with the factory front skid/splash guard.

The factory front struts are retained with the kit utilizing both a preload spacer and top strut spacer to gain the proper lift height.

The rear of the kit comes with 4" blocks and u-bolts to level the truck and all of the necessary brake line relocation brackets needed.

This system will also fit 2wd PreRunner models, but will not work on the standard 2wd model.

Features

    • Important Kit Notes

    • Minor welding
    • required

    • Requires frame
    • bracket modification

    • Strut compressor
    • required for installation

    • Stock wheels
    • cannot be reinstalled

    • System will work
    • on 2WD PreRunner models

    • 2013 &
    • 2014 models require FOX Shock upgrade to clear rear axle tube.

    • Can not use
    • 17" wheels.

    • Some 2014 models
    • may not achieve net lift height stated but will have the same lift stance/final
    • height of an equally equipped 05-13 model
  • Manufacturer Notes

    • BDS Suspension Lift Kit Warranty
    • All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".
    • If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

    • Tire & Wheel Combinations
    • 35 x 12.50 w/18 x 9 and 4.5" Max. back spacing
    • w/20 x 9 and 4.5" Max. back spacing
    • Est. Installation: 6-8 hours
    • Difficulty Level (easy 1 - 5 complicated): 3

    • 2005 Toyota Tacoma 4WD
    • 2006 Toyota Tacoma 4WD
    • 2007 Toyota Tacoma 4WD
    • 2008 Toyota Tacoma 4WD
    • 2009 Toyota Tacoma 4WD
    • 2010 Toyota Tacoma 4WD
    • 2011 Toyota Tacoma 4WD
    • 2012 Toyota Tacoma 4WD
    • 2013 Toyota Tacoma 4WD
    • 2014 Toyota Tacoma 4WD
