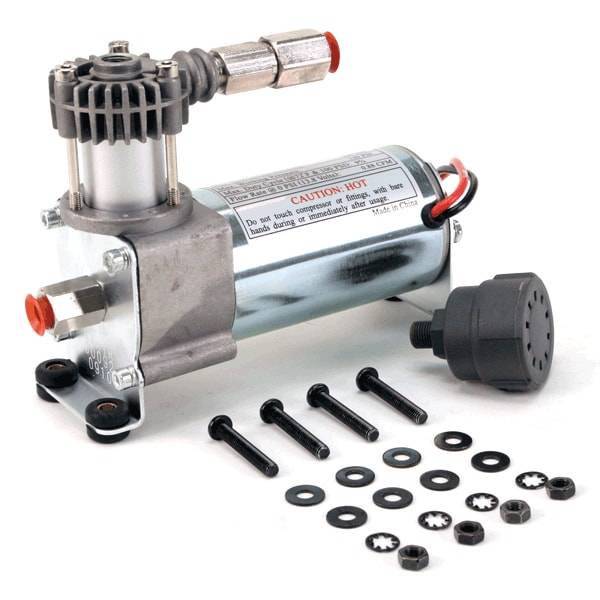

VIAIR 92C Compressor Kit w/ External Check Valve & Intake Filter (12V, 9% Duty, Sealed) - 00092

VIAIR’s 90 Series compressors offer a light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank. Multiple duty cycle, mounting, compressor finish and intake options are available depending on model.

FEATURES
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Direct Mount Air Filter Assembly
– Installation Instructions
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 9% @ 100 PSI
– Max. Working Pressure: 120 PSI
– Max. Air Tank Size: 1.0 Gallon
– Max. Amp Draw: 10 Amps
– Ingress Protection Rating: IP54
– Dimensions: 7.6?L x 2.0?W x 4.6?H
– Net Weight: 2.45 lbs.

RECOMMENDED COMPONENTS
– 0.5 Gallon Tank (P/N 91005)
– 12V Relay (P/N 93940)
– Pressure Switches (P/N 90100, 90101)
– Sealed Pressure Switch (P/N 90223)


PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.03 7 0 29.0 7
10 0.71 8 1.0 19.0 8
20 0.67 8 2.0 18.0 9
30 0.64 9 3.0 18.7 9
40 0.60 9 4.0 15.0 10
50 0.57 9 5.0 13.5 10
60 0.53 10 6.0 12.5 10
70 0.48 10 7.0 11.0 10
80 0.45 10 8.0 10.0 9
90 0.43 10
100 0.39 9
110 0.36 9
120 0.34 9

* Supply Voltage: 13.8 Volts

FILL RATES
0.5 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 08 sec. (± 05 sec.)
85 to 105 PSI 16 sec. (± 03 sec.)
0 to 120 PSI 1 min. 23 sec. (± 05 sec.)
90 to 120 PSI 27 sec. (± 03 sec.)
1.0 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 20 sec. (± 10 sec.)
85 to 105 PSI 35 sec. (± 05 sec.)
0 to 120 PSI 3 min. 04 sec. (± 10 sec.)
90 to 120 PSI 54 sec. (± 05 sec.)
