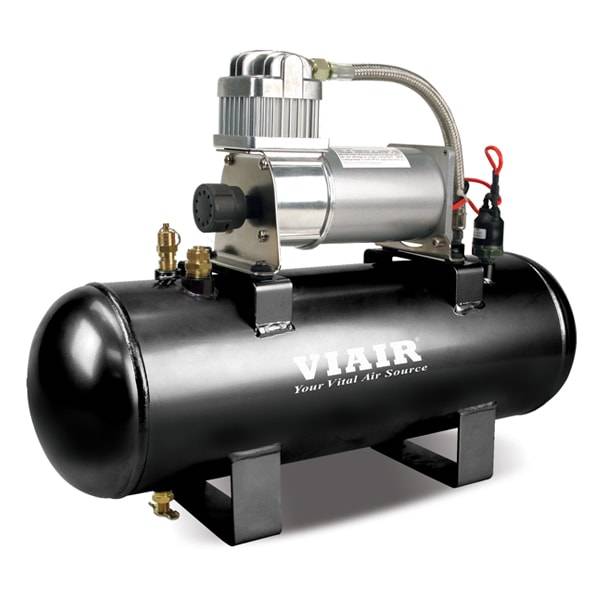

VIAIR 2.0 Gal. Tank Air Source Kit High Flow - 150PSI (12V, 150 PSI Compressor) - 20005

V20005
Pricing: $348.95
Qty:
Free Shipping

Description

150 PSI Air Source Kits come with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gallon air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20005 / 110-150 PSI). The 150 PSI Air Source Kit comes complete with a 1/4? NPT brass drain cock, 1/4? NPT ASME coded and certified safety valve, 1/2? NPT port compression fitting for 3/8? (I.D.) air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.

FEATURES
– 280C Pewter Air Compressor
– 2.0 Gallon Air Tank
– Pressure Switch (110 PSI On / 145 PSI Off)
– Safety Valve (175 PSI)
– Drain Cock
– Leader Hose with Check Valve


SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 30% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 19 Amps
– Ingress Protection Rating: IP54
– Dimensions: 18.9?L x 5.9?W x 13.7?H
– Net Weight: 19.75 lbs.

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 1.59 10 0 45.0 10
10 1.49 12 1.0 40.2 13
20 1.33 13 2.0 32.1 14
30 1.11 14 3.0 29.0 15
40 1.04 15 4.0 26.4 16
50 0.99 15 5.0 24.2 16
60 0.92 16 6.0 22.0 17
70 0.87 16 7.0 21.0 19
80 0.81 17 8.0 19.4 18
90 0.76 17 9.0 17.5 17
100 0.74 19 10.0 15.3 17
110 0.71 19
120 0.67 18
130 0.62 17
140 0.57 17
150 0.51 17

* Supply Voltage: 13.8 Volts

FILL RATES
2.0 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 40 sec.(± 10 sec.)
110 to 145 PSI 1 min. 15 sec. (± 05 sec.)
