VIAIR Dual 400C Value Pack (150 PSI, 400C/2, 110/145 P. Switch, 40 Amp Relay/2, CE) *Choose Color* - 40013-40048

V40013-40048
Pricing: $336.95

Customize Your Item

- Color -
 * required
Qty:
Free Shipping

Description

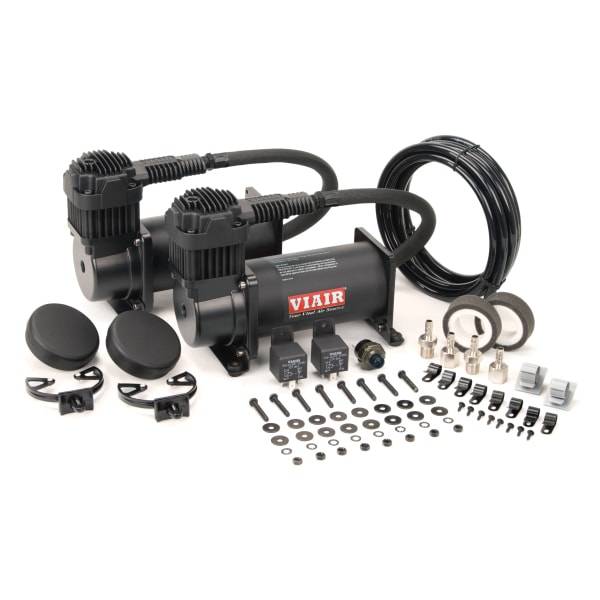

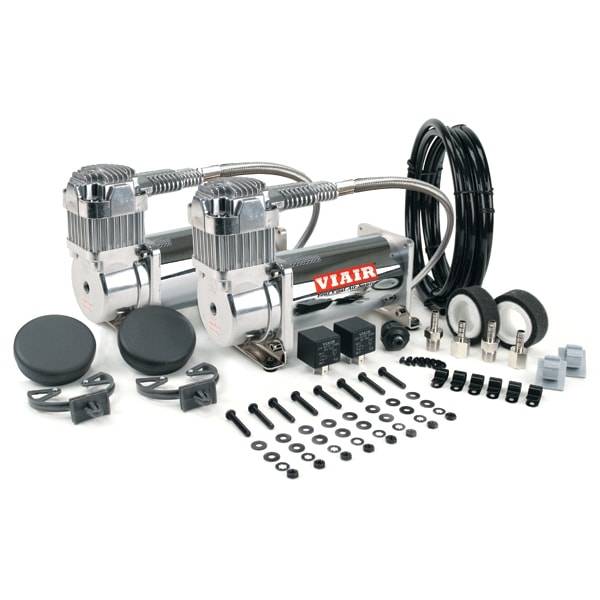

The VIAIR 400C Dual Performance Value Pack is our fastest filling, highest CFM air compressor system, This kit is perfect for industrial use, air horns, off-road applications, and a great addition to any air suspension kit. The 400C Dual Performance Value Pack includes two 12-volt Chrome or Stealth Black VIAIR 400C air compressors, two heavy duty 40-amp relays and an 110 PSI cut-on, 145 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES
– (2) 400C Chrome Air Compressors
– (2) Air Filter Assemblies
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (2) Leader Hose Clips
– (6) Air Line Clips with Included Hardware
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (2) 40-Amp Relays
– (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 10.0 Gallon
– Max. 12V Amp Draw: 59 Amps
– Ingress Protection Rating: IP67
– Dimensions: 9?L x 4?W x 6.75?H (Each Unit)
– Net Weight: 17.30 lbs.

PERFORMANCE DATA
PSI CFM A BAR LPM A
0 4.55 39 0 129.0 39
10 4.18 40 1.0 115.6 41
20 3.96 42 2.0 106.5 45
30 3.74 45 3.0 96.6 47
40 3.50 46 4.0 86.4 50
50 3.25 48 5.0 78.4 53
60 3.00 50 6.0 70.8 58
70 2.83 52 7.0 64.0 57
80 2.60 55 8.0 57.5 54
90 2.46 59 9.0 50.6 52
100 2.28 57 10.0 43.7 50
110 2.12 55
120 1.97 53
130 1.80 52
140 1.60 51
150 1.48 49
* Supply Voltage: 13.8 Volts

FILL RATES

2.0 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 00 sec. (± 05 sec.)
110 to 145 PSI 20 sec. (± 03 sec.)

2.5 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 15 sec. (± 05 sec.)
110 to 145 PSI 25 sec. (± 03 sec.)

5.0 GALLON TANK FILL RATE
0 to 145 PSI 2 min. 30 sec. (± 10 sec.)
110 to 145 PSI 52 sec. (± 05 sec.)
