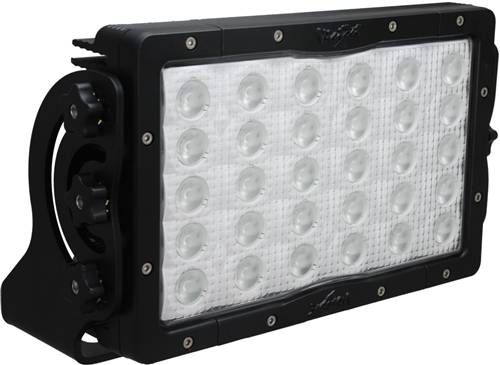

PitMaster Mining Industrial Light
Why
Pitmaster
The Pitmaster is
designed to replace 400 watt metal halide and high pressure sodium lamps. The
Pitmaster puts out 14,790 lumens of light output while only drawing 12.5 amps.
For a long lasting area light with low power consumption, the Pitmaster is the
only way to go.
Prime Drive - The Smart LED Bar
Electronic Thermal Management
ETM monitors the heat output of the LEDs and makes use of
integrated Pulse Width Modulator(PWM) dimming circuitry in order to maintain
safe operating temperatures in order to prolong the LED life span to its full
50,000 hour potential.
Pulse Width Modulator Dimming
PWM works by
flashing the LED at a frequency faster than the human eye can detect, reducing
the time that the LED is operating while still delivering 100% light output.
Xtreme 5 Watt LEDs
The Pitmaster runs the 5 Watt LED for extreme output and optic
control. The LEDs run at 90% efficiency to give the most light from each LED.
line-height:normal"">mso-fareast-font-family:"Times New Roman";mso-bidi-font-family:Arial;
color:#193F6F"">Rugged, Durable LED Lampfont-family:"Arial","sans-serif";mso-fareast-font-family:"Times New Roman";
color:black"">
padding:0in"">Die Cast Aluminummso-border-alt:none windowtext 0in;padding:0in"">
The Pitmaster utilizes a rugged aluminum housing for the ultimate strength and
durability.
Reinforced Gasketed Bezel
The Pitmaster features a reinforced gasketed bezel to achieve an IP rating
of 68, signifying that it is dust-proof and water-proof up to 3 meters.
360° Mounting System
Key
INCLUDED |
• Pitmaster LED Light |
SPECIFICATIONS |
|
WARRANTY |
Extended |
AVAILABLE
HOUSING COLOR |
Black |
LUMENS |
14,790 |
WATTAGE |
150 |
LED
LIFESPAN |
50,000 |
TECHNICAL
DETAILS |
|
HEIGHT |
7.09" |
DEPTH |
4.94" |
WIDTH |
11.69" |
WEIGHT |
11.02 Lbs |
OPTIC
PURITY |
90% |
DRIVEN
AT |
90% |
INPUT
VOLTAGE |
24V DC (12V DC
Optional) |
AMP
DRAW |
12.5A |
IP
RATING |
IP-68 |
VIBRATION
RATING |
15.6Grms |
OPERATING
TEMPERATURE |
-40 Celsius ~ +80
Celsius |
ADDED
FEAUTRES |
• Integrated Deutsch
Connector with Plug-and-Play Harness |
