Why
Ripper

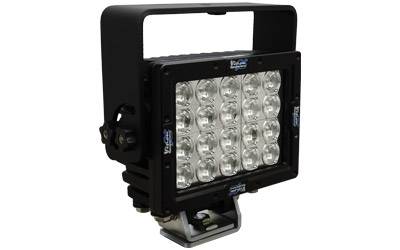

The Ripper is built for industrial
and mining applications where a heavy-duty light is needed. Featuring 5 watt
LEDs for high light output along with suspension mounting system and die-cast
housing, the Ripper is durable and reliable in harsh working environments.
Prime Drive - The Smart LED Bar
Electronic Thermal Management
ETM monitors the heat output of the LEDs and makes use of
integrated Pulse Width Modulator dimming circuitry in order to maintain safe
operating temperatures in order to prolong the LED life span to its full 50,000
hour potential.
Pulse Width Modulator
Dimming
The Ripper utilizes integrated Pulse Width Modulation
(PWM) dimming circuitry to manage heat levels. PWM works by flashing the LED at
a frequency faster than the human eye can detect, reducing the time that the
LED is operating while still delivering 100% light output.
Rugged, Industrial Work Light
Die-Cast Aluminum
The Ripper utilizes a rugged aluminum housing for the ultimate
strength and durability.
IP-68 Rated
The Ripper has achieved an ingress protection rating of
IP-68, signifying that it is dust-proof and submersible in water up to 3 meters.
Dual Vibration Resistant Mounting System
The Ripper utilizes a suspension mount on one end of the
light with rubber shock isolators, with a trunion bracket on the other for
secure mounting and a vibration rating of 60 Grms.
Key
INCLUDED |
• Ripper LED Light |
SPECIFICATIONS |
|
WARRANTY |
Extended |
AVAILABLE
HOUSING COLOR |
Black |
MOUNTING
DEPTH |
2.00" |
LED
LIFESPAN |
50,000 |
TECHNICAL
DETAILS |
|
HEIGHT |
5.00" |
DEPTH |
4.41" |
OPTIC
PURITY |
90% |
DRIVEN
AT |
90% |
INPUT
VOLTAGE |
9-32V DC |
IP
RATING |
IP-68 |
VIBRATION
RATING |
60Grms |
OPERATING
TEMPERATURE |
-40 Celsius ~ +80
Celsius |
ADDED
FEAUTRES |
• Weatherproof Deutsch
Connector with Plug-and-Play Harness |
