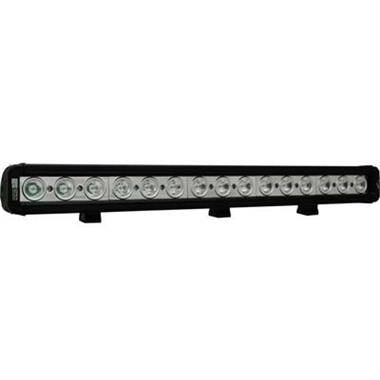

Vision X 20" XMITTER LOW PROFILE XTREME BLACK 15 5W LED'S 10 OR 40 DEGREE     -XIL-LPX1510

VIS-XIL-LPX1510
The Low Profile Prime XP is compact with a height of only 2.06" for a universal fit with double the light output of the 3 watt Low Profile Bar. The Low Profile Prime XP Series also makes use of Prime Drive Technology which manages heat levels to prolong the life of the LEDs.
Pricing: $599.00

Customize Your Item

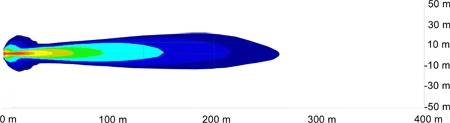

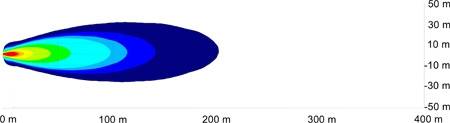

- Beam Pattern -
 * required
- Add End Cap Mounts? -
 * required
Qty:
Free Shipping

Description

Xmitter Low Profile Xtreme Light Bar

Why Low
Profile Prime XP

The Low Profile Prime
XP is compact with a height of only 2.06"" for a universal fit with double
the light output of the 3 watt Low Profile Bar. The Low Profile Prime XP Series
also makes use of Prime Drive Technology which manages heat levels to prolong
the life of the LEDs.

Prime Drive - The Smart LED Bar

Electronic Thermal Management

ETM monitors the heat output of the LEDs and makes use of
integrated Pulse Width Modulation circuitry in order to maintain safe operating
temperatures in order to prolong the LED life span to its full 50,000 hour
potential.


Pulse Width Modulation

The Low Profile Xmitter Xtreme utilizes integrated Pulse
Width Modulation (PWM) dimming circuitry to manage heat levels. PWM works by
flashing the LED at a frequency faster than the human eye can detect, reducing
the time that the LED is operating while still delivering 100% light output.
Bold, Strong Design- The Tough LED Bar


Extruded 6061 Aluminum

The Low Profile Xtreme features a 6061 extruded aluminum
housing for ultimate strength and durability.


IP-68 Rated

The Low Profile Xtreme has achieved an ingress protection
rating of IP-68, signifying that it is dust-proof and submersible in water up
to 3 meters.


Proven Mounting System

The Low Profile Xtreme utilizes the Vision X signature
stud mounting system that allows for 15° of adjustability and helps to control
vibration through the use of isolated rubber in the mount.

"

Features

  • Key

  • Features

    Integrated Electronic Thermal Management (ETM)
    New Generation LED is Driven to 90% Efficiency
    PWM Integrated Dimming Circuitry
    Xtreme 5 Watt LEDs Produces Nearly Twice the
  • Light
  • System Contents

  • INCLUDED

  • •Low Profile Xtreme

  • Prime LED Light Bar
  • • Wiring Harness
  • • Installation Instructions
  • • Adjustment Allen Wrench
  • • Vision X Decal

  • Manufacturer Notes

    SPECIFICATIONS

    WARRANTY

    Extended

    AVAILABLE HOUSING COLOR

    Black or White

    MOUNTING DEPTH

    1.00"

    LED LIFESPAN

    50,000

    TECHNICAL DETAILS

    HEIGHT

    2.06"

    DEPTH

    2.45"

    OPTIC PURITY

    90%

    DRIVEN AT

    90%

    INPUT VOLTAGE

    9-32V DC

    IP RATING

    IP-68

    VIBRATION RATING

    15.6G

    OPERATING TEMPERATURE

    -40 Celsius ~ +80 Celsius

    ADDED FEAUTRES

    • Weatherproof Deutsch Connector with Plug-and-Play Harness
    • Billet Clamp Tube Frame Mounts Available
    • Extruded 6061 Aluminum Housing
    • Polycarbonate lens
