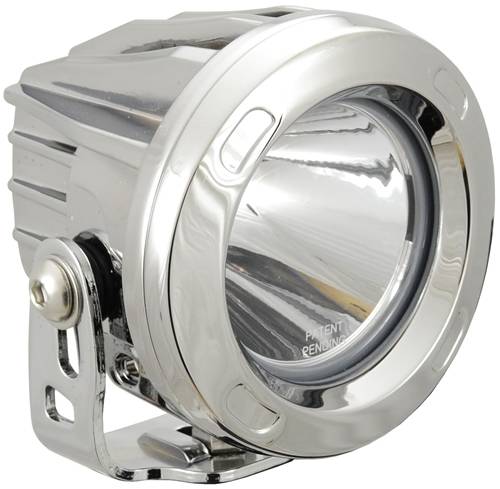

Vision X OPTIMUS ROUND CHROME 1 10W LED 10, 20 or 60 Degree SINGLE     -XIL-OPRC

VIS-XIL-OPRC

The Optimus Series
are LED Driving Lights, advancing lighting technology to the next level.
Utilizing Vision X Lighting's all new proprietary IRIS Reflector Technology,
the Optimus series provides the ultimate focus for long range lighting by
producing 693 ft. of usable light from a single 3.5"" tall, 10-watt LED.
Compared to a standard 55 watt low beam headlight reach of 88 ft. and a
standard 65 watt high beam reach of 153 ft, the Optimus propels light further
than any single 10-watt LED light fixture in existence. Optimus lights also
feature Vision X Lighting's Prime Drive technology for integrated thermal
management and dimming capabilities.

"
Pricing: $198.75

Customize Your Item

- Choose Degree/Beam -
 * required
Qty:
Free Shipping

Description

Why Optimus

The Optimus Series
are LED Driving Lights, advancing lighting technology to the next level.
Utilizing Vision X Lighting's all new proprietary IRIS Reflector Technology,
the Optimus series provides the ultimate focus for long range lighting by
producing 693 ft. of usable light from a single 3.5"" tall, 10-watt LED.
Compared to a standard 55 watt low beam headlight reach of 88 ft. and a
standard 65 watt high beam reach of 153 ft, the Optimus propels light further
than any single 10-watt LED light fixture in existence. Optimus lights also
feature Vision X Lighting's Prime Drive technology for integrated thermal
management and dimming capabilities.

Compact, Bold Design

Small Doesn't
Mean Weak


The new Optimus Prime doesn't sacrifice light output to
achieve an ultra-compact housing. Actually, the opposite. The Optimus Prime
outperforms traditional Halogen Off Road Lighting solutions in both distance
and output, all while fitting within a housing that doesn't look bulky and in
the way. So put away the huge, awkward looking lights, and get the driving
lights that will amaze you every time you light them up.

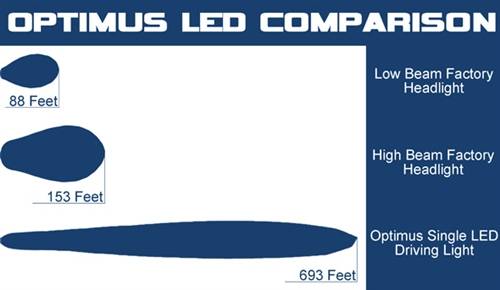

Distance

The Single Optimus Prime
throws 1 lux of light 693 feet. For comparison, a motorcycle headlight low beam
measures 1 lux at 88 feet, and high beam 1 lux at 153 feet. The Optimus Prime
is truly ""lighting evolved"".

Prime Drive

The More
Powerful and Long Lasting LED


The Optimus
Prime with Prime Drive drives the LED more
efficiently while managing heat levels. This means more light
from the LED and a longer lifespan. This is advanced LED technology in action.


Electronic Thermal Management

ETM monitors the heat output of the LEDs and makes use of
integrated Pulse Width Modulation circuitry in order to maintain safe operating
temperatures in order to prolong the LED life span to its full 50,000 hour
potential.


Pulse Width Modulation

The Optimus Prime utilizes integrated Pulse Width
Modulation (PWM) dimming circuitry to manage heat levels. PWM works by flashing
the LED at a frequency faster than the human eye can detect, reducing the time
that the LED is operating while still delivering 100% light output.

"

Features

  • KEY FEATURES

    693' of Usable Light from 10-watt LED
    Proprietary IRIS Reflector Technology
    PWM Integrated Dimming Circuitry
    Integrated Electronic Thermal Management (ETM)
  • System Contents

  • Optimus LED Light
  • • Installation Instructions
  • • Adjustment Allen Wrench
  • Manufacturer Notes

    SPECIFICATIONS

    WARRANTY

    Extended

    AVAILABLE HOUSING COLOR

    Black, White, Silver, Chrome

    MOUNTING DEPTH

    1.00"

    LED LIFESPAN

    50,000

    TECHNICAL DETAILS

    HEIGHT

    3.07"

    DEPTH

    3.80"

    OPTIC PURITY

    90%

    DRIVEN AT

    90%

    INPUT VOLTAGE

    11-32V DC

    IP RATING

    IP-68

    VIBRATION RATING

    15.6G

    OPERATING TEMPERATURE

    -40 Celsius ~ +80 Celsius

    ADDED FEAUTRES

    • Weatherproof Deutsch Connector
    • Trunnion Bracket or Stud-Mount Available
    • Die-Cast Aluminum Housing
    • Polycarbonate lens
    • Patent Pending
