Zone Offroad 6" IFS Suspension Lift Kit System for 01-10 Chevy / GMC 2WD - C5

Pricing: $1,213.60

Customize Your Item

- GM Carrier Bearing Drop -
 * required
- Gas Shock Upgrade -
 * required
- Shock Boot Selection -
 * required
Free Shipping


The Zone Offroad Products 6" suspension lift kit for 2001-06 Chevrolet/GMC Silverado/Sierra 1500HD/2500 & 2001-10 2500HD 2wd pickup trucks is built for everyday driving but sturdy enough for offroad abuse.

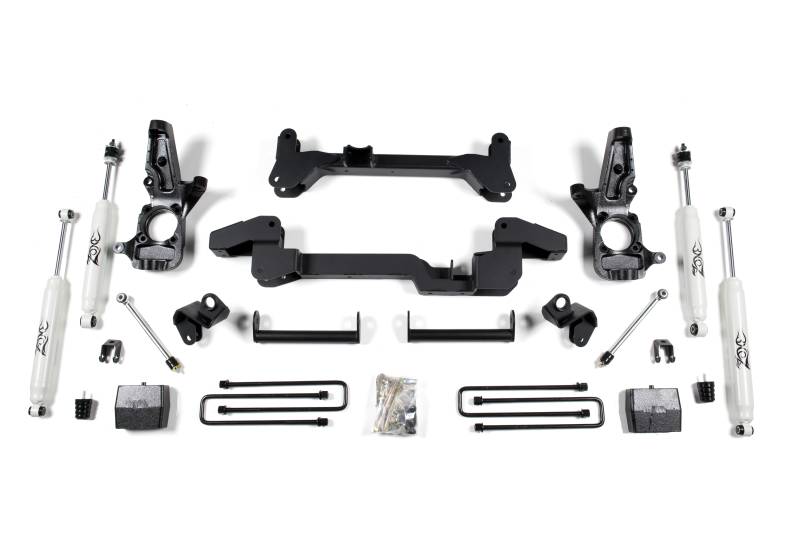

The one piece main crossmembers in combination with the CNC machined ductile steering knuckles match the factory geometry for excellent ride and handling. The crossmembers are locked together with strut braces to acheive ideal subframe strength for the heavy duty use of your truck. Complete with torsion bar brackets, sway bar links, rear blocks, u-bolts and twin tube hydraulic shocks for a smooth ride. If quality, performance and value are what you demand, then look no further.

Featured Technology & Benefits
One piece 1/4" steel crossmembers
Designed based on the factory geometry to acheive factory like ride quality and handling
CNC machined ductile iron steering knuckles
Not some cheap import - Over 95% made in America with quality North American Steel
Rear block kit for easy installation

Important Notes!
Torsion bar unloading/loading tool required.
To reduce trimming on new body style HD's 20" wheels with 5 3/4" backspacing recommended.
Gas models required minor exhaust modification to clear front driveshaft.
Although unusual, some models with a carrier bearing may experience driveline vibration. If this occurs, order appropriate carrier bearing drop listed in the accessories.
Not designed for dually models

This product fits the following applications:

01-06 Chevy 1500HD Pickup 2WD
01-10 Chevy 2500 Pickup 2WD
01-10 Chevy 2500HD Pickup 2WD
01-10 GMC 2500 Pickup 2WD
01-10 GMC 2500HD Pickup 2WD

Quick Specs

Front Lift Height: 6?
Front Lift Method: IFS Knuckle & Bracket Kit
Rear Lift Height: 5?
Rear Lift Method: Block Kit
Install Time Hrs: 6-8
Difficulty Level 1-5: 3
Wheel Size: 16 x 8
Back Spacing: 4.5
Max Tire Size: 35 X 12.50
Wheel Size: 17 or 18 x 9
Back Spacing: 5-5.5
Max Tire Size: 35x12.50
Wheel Size: 20 x 9
Back Spacing: 5.75
Max Tire Size: 35x12.50
