Zone Offroad 6" IFS Lift Kit System for 00-06 Chevy / GMC Avalanche / Suburban / Yukon XL 1500 / Tahoe / Yukon - C7

Pricing: $1,752.65

Customize Your Item

- Gas Shock Upgrade -
 * required
- Shock Boot Selection -
 * required
Free Shipping

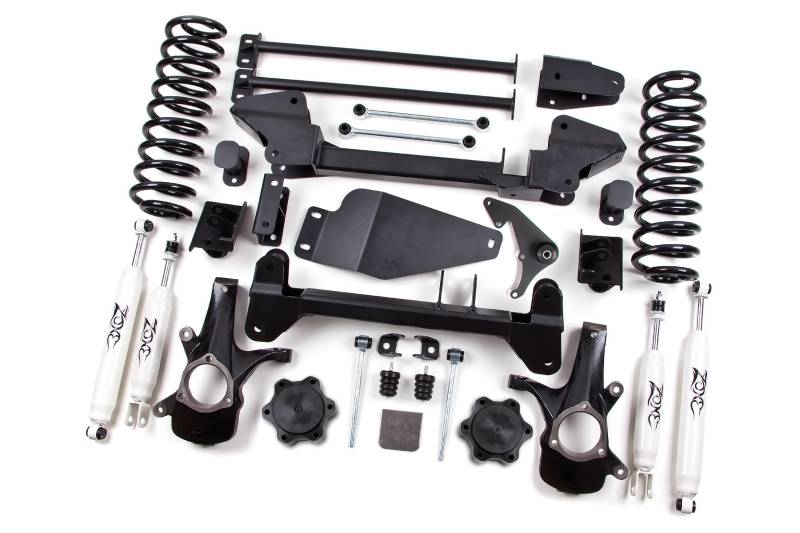

The Zone Offroad suspension system for the Chevy and GM SUV's is designed for an everyday driver, but built to handle offroad abuse. The lower control arm crossmembers match the factory geometry and appearance. Combined with the CNC machined steering knuckles, the critical components are relocated to factory specs creating a true factory quality driving experience. The differential skid plate combined with the compression struts for added frame support creates an extremely solid system. The rear is lifted with new coil springs, with a track bar bracket and sway bar links included. If you've been shopping for the best deal on a lift, look no further.

Featured Technology & Benefits
Ductile Iron, CNC machined steering knuckles maintain OE steering geometry.
Heavy duty boxed one piece crossmembers.
Differential skid plate and compression struts are included for off-road protection.
Multi-point differential mounting system corrects drive line angles.

Important Notes!
Will not fit vehicles equipped with Auto-Ride
Not recommended for all wheel drive (AWD) models
Torsion bar tool required for installation.
Frame bracket modification and minor welding required.
If equipped with factory 17" wheels, then they must be replaced with 17" or larger aftermarket wheels.
Stock tires & wheels can be installed back on the vehicle, but larger tires cannot be installed on factory wheels.

This product fits the following applications:

02-06 Chevy Avalanche 1500 4WD Gas
00-06 Chevy Suburban 1500 4WD Gas
00-06 Chevy Tahoe 4WD Gas
00-06 GMC Yukon 4WD Gas
00-06 GMC Yukon XL 1500 4WD Gas

Quick Specs

Front Lift Height: 6?
Front Lift Method: IFS System w/Knuckle
Rear Lift Height: 5 1/2?
Rear Lift Method: Coil Springs
Install Time Hrs: 8
Difficulty Level 1-5: 3
Wheel Size: 16 or 17 x 8
Back Spacing: 4.5
Max Tire Size: 33 x 12.50
Wheel Size: 18x9
Back Spacing: 5
Max Tire Size: 34x12.50
Wheel Size: 20x9
Back Spacing: 5.75
Max Tire Size: 35x12.50
