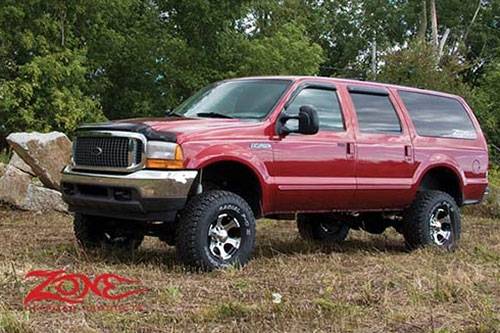

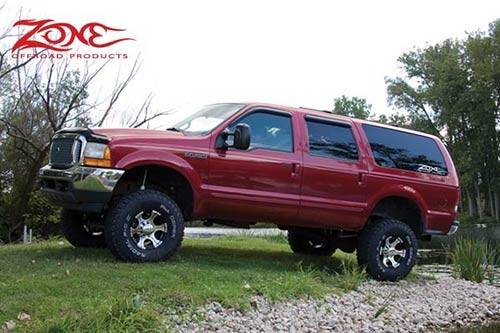

Zone Offroad 4" Suspension System Lift Kit for 00-05 Ford Excursion 4WD - F11

It's time to upgrade your Excursion! The revolutionary new Zone 4" lift kit system features new front leaf spring mini packs that are designed to not only ride great, but will hold up over the long haul. An adjustable track bar is included to properly center the axle after lifting. This track bar features new oversized urethane bushings for long term performance. The shocks were custom valved to work perfectly with the new Zone leaf springs to increase off road performance while still offering unmatched on road ride quality. With the front replacement track bar and the rear block kit, this system is one of the easiest installations on the market for a 4" system.

Featured Technology & Benefits

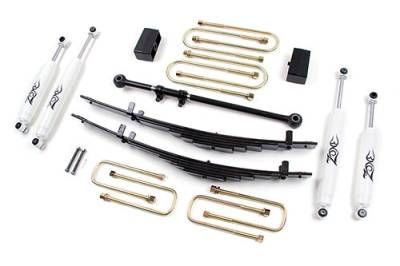

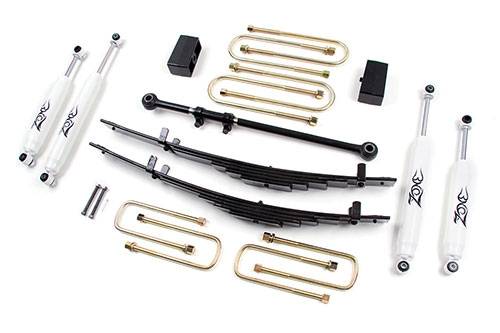

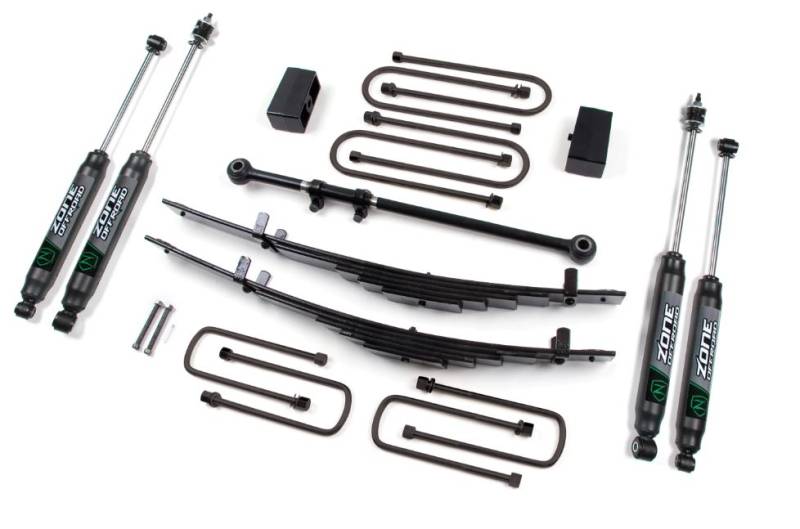

New front leaf spring mini packs make for easy installation with an amazing ride
Adjustable track bar to properly center the axle
New front & Rear U-bolt with high nuts & washers
Rear 3" Block kit for easy installation
Performance custom valved Zone Shocks included

Important Notes!
Models with rear CV driveshaft may experience drive line vibration
Front and Rear driveshaft modification may be required
Due to OE variances, you may need to change the rear block to level the truck.

This product fits the following applications:

00-05 Ford Excursion 4WD

Quick Specs

Front Lift Height: 4?
Front Lift Method: Leaf Spring Mini-Packs
Rear Lift Height: 3?
Rear Lift Method: Block
Install Time Hrs: 7
Difficulty Level 1-5: 2
Wheel Size: 16 X 10
Back Spacing: 4?
Max Tire Size: 33 X 12.50
