Zone Offroad 3" Jeep Wrangler JK 2 Door/4 Door/Rubicon 07-18 Suspension System Lift Kit - J12N / J13N

ZNJ12N/J13N
Pricing: $467.27

Customize Your Item

- Sway-Bar and Accessories -
 * required
- Exhaust Extensions*2012 Models* -
 * required
- Front Cam Locks -
 * required
- JKS -
 * required
- Gas Shock Upgrade -
 * required
- Shock Boot Selection -
 * required
- 2 Door vs. 4 Door Selection -
 * required
- Accessories -
 * required
- Steering Stabilizer -
 * required
Qty:
Free Shipping

Description

Prepare yourself for the perfect combination of off road performance and on road handling. This 3" JK system offers dramatic improvement in both ground clearance as well as wheel travel. With 3" of lift, you can clear those 35's with room to twist as well as use your Jeep for a daily driver. Zone coil springs are designed so they can be totally smashed flat and still return to their original height, so you don't have to worry about your coils sagging!

The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.

Zone Offroad Products is leading the industry by independently testing all suspension kits to verify the kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.

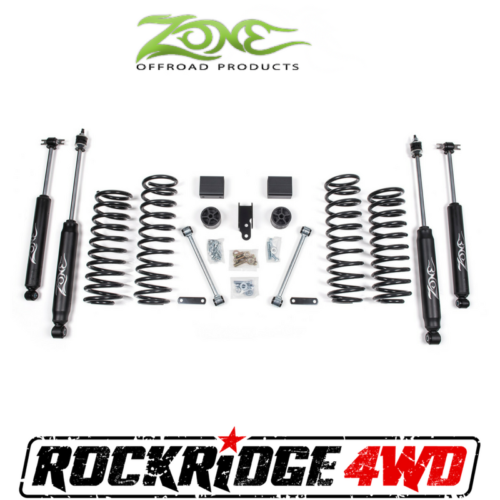

Featured Technology & Benefits
Coil springs designed to give a full 3" of lift while maintaining a factory style ride. Our coils are 2door/4door specific, so be sure to select the proper application.
Rear extended sway bar links are included. These links come with urethane bushings to increase performance and reduce body roll. The factory rear links are then used in the front.
A rear track bar relocation system is included to perfectly center the axle under your JK
2" bump stop extensions are included to protect your vehicle while still increasing wheel travel
Brake line relocation brackets are supplied to allow for the dramatic increase in wheel travel
New Zone NITRO front and rear shocks are included that are valved specifically for your JK
This kit has been approved for use on right hand drive vehicles but may require installation variations. Refer to this kit's online instructions for the most up to date installation instructions and pay close attention to RHD notes.

Important Notes!
This complete suspension lift system is designed for 2door and 4 door models
WIll work on Rubicon models.
The coil springs are 2 door and 4 door specific. Be sure to choose the correct application when ordering.
Factory wheels cannot be re-installed due to rear sway bar link interference.
2012-18 models using the stock front driveshaft require exhaust extension kit J5305 listed in the accessories.
Optional front alignment cam locks recommended if using stock (or stock length) front lower control arms. Alignment cam locks add 2 degrees of caster when used on stock length control arms.

This product fits the following applications:

07-18 Jeep Wrangler JK 4WD Gas
07-18 Jeep Wrangler JK RHD 4WD Gas

Quick Specs

Front Lift Height: 3"
Front Lift Method: Coil Springs
Rear Lift Height: 3"
Rear Lift Method: Coil Springs
Install Time Hrs: 4-5
Difficulty Level 1-5: 2
Wheel Size: 16 x 8
Back Spacing: 4.5
Max Tire Size: 35" x 12.50"
