BDS Suspension 2013-2017 Ram 3500 3" Radius Arm Lift System - 1622H

BDS1622H
Was: $1,708.33
Sale: $1,622.91
Save: 5%
Save: $85.42

Customize Your Item

- Shock Options -
 * required
- Steering Stabilizer Options -
 * required
- Traction Bars -
 * required
- Brake Line -
 * required
- Carrier Bearing Drop Kit -
 * required
- Sway Bar Disconnect Upgrade -
 * required
- SHOCK BOOTS -
 * required
Qty:
Free Shipping

Description

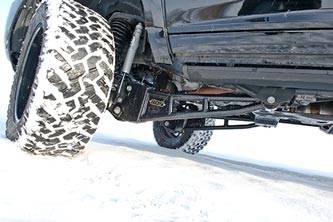

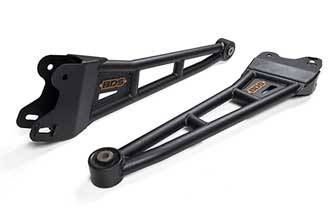

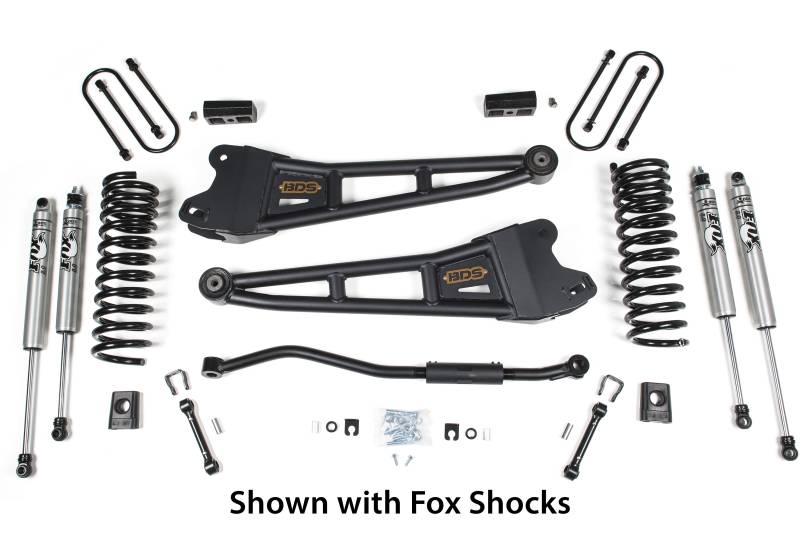

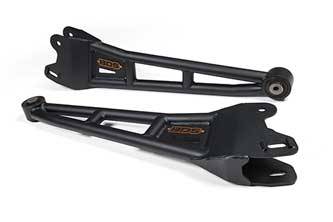

This kit is perfect for those looking for all the performance of a full-out lift system but with the height of a leveling kit. This new system is built around massive tubular replacement radius arms. These arms are built to handle far more than the factory parts they are replacing. The design incorporates a factory style rubber bushing mount at the frame to keep the NVH levels in check. The 3-1/4" diameter bushings are huge and have a long, maintenance-free service life. The new radius arms mount right into the factory locations so installation is simple and clean. Factory alignment adjust-ability is maintained using the OE eccentric adjusters. The arm geometry is set to keep the axle angle in the factory specs while compensating for the 3" of lift. A copper-anodized aluminum BDS name plate is mounted each arm.

In addition to the heavy-duty, high-performance radius arms, this new system features dual-rate front coil springs that improve the ride and handling of these 1 ton trucks both on and off road. Our popular heavy-duty turnbuckle style adjustable track bar is included to center the axle. BDS greaseable front sway bar links reset the sway bar to the optimum angle and round out the main front components. Add in the front brake line relocation brackets and a choice of BDS 5500-series or FOX 2.0 Performance Series shocks and this system is set to handle any terrain.

The rear system is a simple 2" block and u-bolt setup to level out the back with the newly lifted front.

Tire & Wheel Combinations
35" x 12.50 w/17" x 9" and 5" back spacing
35" x 12.50" w/18" x 9" and 4.5 back spacing
35" x 12.50" w/20" x 9" and 4.5 back spacing
Est. Installation: 5 hours
Difficulty Level (easy 1 - 5 complicated): 3

BDS Suspension Lift Kit Warranty
No Fine Print Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period
