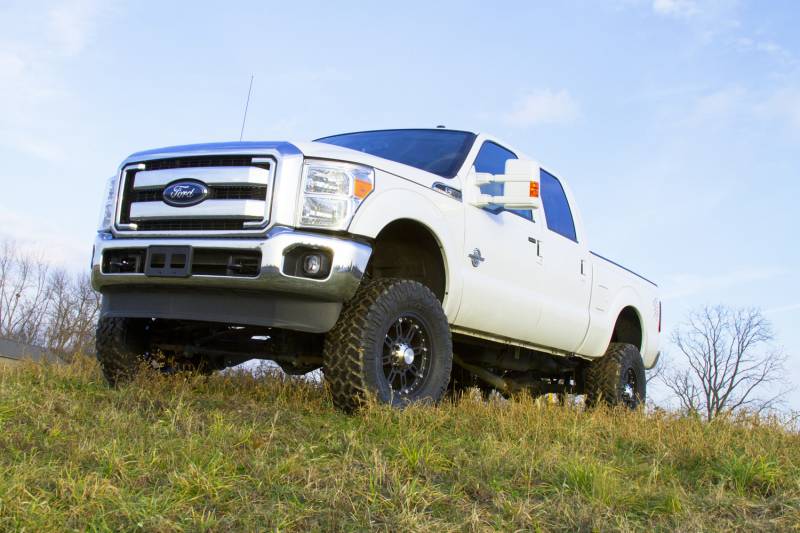

Zone Offroad 6" Radius Arm Suspension System for 11-16 Ford F250/F350 - F30/F31/F32/F33

ZNF30/F31/F32/F33
Pricing: $1,448.45

Customize Your Item

- Steering Upgrades -
 * required
- Shock Options -
 * required
- Driveline Adjustment -
 * required
- Shock Boots -
 * required
Qty:
Free Shipping

Description

Lift your Super Duty with Zone Offroad's 6" radius arm suspension lift for an attention grabbing, smooth riding, complete, and affordable system. For less than the cost of some radius arm drop kits on the market, you can buy this system with bullet proof radius arms that provide more ground clearance, better looks, and a big strength improvement over the stockers. American made, gas & diesel specific coil springs will not sag to provide you the lift to clear 37's and a ride you might not expect from a system this price competitive.
This system includes everything you need and more, including a dropped pitman arm and track bar relocation bracket, but for a complete list check out the features tab. To avoid stacking rear blocks or going too tall with a single block, Zone includes a 5" cast iron block with an integrated bump stop as well as dual add-a-leafs. This block & AAL system will reduce spring wrap, will level the truck, and is also designed to shift the axle forward to ensure the tire stays centered in the rear wheel well.
For a top shelf 6" lift without the top shelf price, buy from Zone Offroad with an elevated level of customer service to back it up.

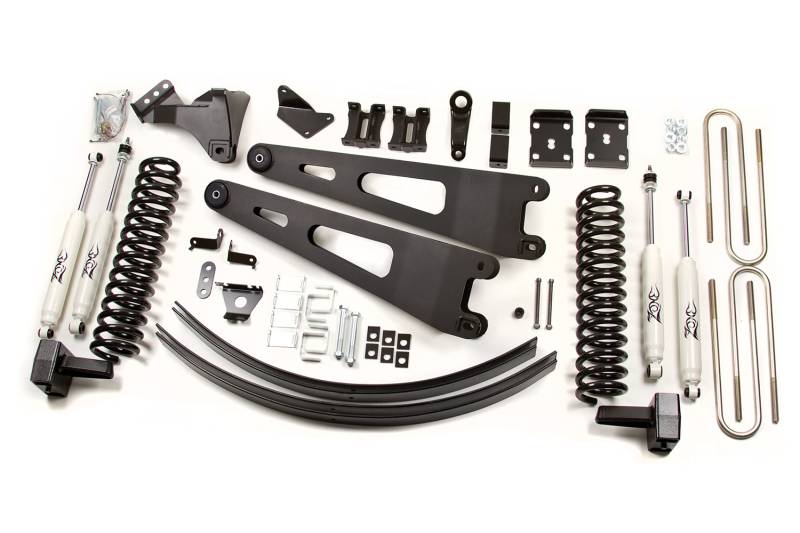

Features

1/4" boxed radius arms with oversize greasable bushings
Diesel or gas specific coil springs for an accurate lift height and proper ride quality
Increased ground clearance and better looks than a radius arm drop system
Track bar bracket and dropped pitman arm included to correct steering geometry
Sway bar drop brackets to maintain the OE sway bar angle
Front bump stop spacers
Front and rear brake line relocation brackets
Steering stabilizer relocation bracket
5" rear block with integrated bump stop
Dual rear add-a-leafs
Designed to level the truck with removal of the factory block

Manufacturer Notes

Removal of the factory rear block is required. Net rear height gain will vary based on size of the factory block, but will result in a level stance.
If equipped with a 2-piece rear drive shaft, then a drivshaft alignment kit may be required. It is available in the optional accessories (part # F5401).
Although extremely rare, front drive line vibration may occur.
Rear box kit not designed for dually models.
Front exhaust modification may be required to clear the front driveshaft on gas models.

Quick Specs

Front Lift Height: 6?
Front Lift Method: Coil Springs
Rear Lift Height: 4?
Rear Lift Method: Dual Add-A-Leafs & Block Kit
Install Time Hrs: 6
Difficulty Level 1-5: 3
Wheel Size: 17 x 9
Back Spacing: 4.5?
Max Tire Size: 37 x 12.50
Wheel Size: 20 x 9
Back Spacing: 4.5?
Max Tire Size: 37 x 12.50

Vehicle Type

11-16 Ford F250 4WD
11-16 Ford F350 4WD

Warranty

To the original retail purchaser, Zone Offroad Products guarantees all its products are free from defects in material and workmanship for as long as that purchaser owns the vehicle on which such products were originally installed. Warranty coverage does not include consumer opinions about such areas as ride comfort, fitment and design.

Products that wear out or fail due to the use of larger wheels or tires are not covered under this warranty by Zone OffRoad Products. Products installed on a vehicle used in any form of competition or racing are not covered by this warranty. The warranty on commercial application vehicles shall extend only 1 year. No warranty is available on items subject to normal wear and replacement.

Shock oil seals are subject to wear over time, and use. Therefore are not covered under warranty. However leaking shock seals less than one year from date of purchase, free from contamination, damage, or abnormal seal wear due to misuse can be considered for Warranty.

This Limited Lifetime Warranty does not apply to products characterized by one or more of the following:

Products that have been subject to abuse, neglect, accident, fire, improper installation or adjustment, and corrosion.
Products that have been modified or altered outside of or beyond Zone OffRoad Products specifications.
Products used in application other than those recommended in the current Zone OffRoad Products catalog or web site or in the instructions accompanying the Zone OffRoad Products product.
Products that are used for competition or racing activities. This Limited Lifetime Warranty does not include polyurethane components, product finish and conditions caused by normal wear and use.
In a situation where a Zone OffRoad Products product is found to contain a defect in material or workmanship within the stated warranty period (unless caused by one or more of the above stated conditions), Zone OffRoad Products, at its option, will either replace the product or repair the product. To make a claim under this Limited Lifetime Warranty, purchaser must:

Contact the original place of purchase for further instruction. A Return Merchandise Authorization (RMA) number is required for warranty claims. The RMA number must be displayed on the outside of the product's package. If originally purchased through ZoneOffroad.com, please call 888-998-9663 or email sales@zoneoffroad.comfor further instruction.
Include the original purchase receipt (or copy) indicating the place of purchase, date of purchase, and amount paid,
Return the product, freight prepaid, as instructed by the original place of purchase. Zone Offroad is not responsible for freight charges.
NOTICE: If a replacement part is needed before the part in question can be returned, you must first purchase the replacement part. Then, if the part in question is deemed warrantable, you will be credited/refunded.

Freight charges, installation cost, labor cost, damage to related components, cost incurred due to down time of vehicle, normal wear and tear, lost profits and incidental or consequential damages are not covered under this lifetime warranty.

This Limited Lifetime Warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state. There are no warranties expressed or implied (including any implied warranties of merchantability and fitness), which extend beyond this Limited Lifetime Warranty described herein.

NOTICE: Zone OffRoad Products strongly recommends installation of products be done by a certified mechanic. If this does not occur be certain the person(s) installing the product read understand and follow all instructions and warnings pertaining to the application before installation. Installation instructions are also available prior to your purchase.

WARNING: Zone OffRoad Products does not recommend the use of a body lift in conjunction with a suspension lift 'Kit' or 'System'.

PRODUCT SAFETY WARNING
Installation of suspension lift kits or any other lifting kits or devices will raise the center of gravity. For this reason, Zone OffRoad Products urges that extreme caution be used when encountering driving conditions which may cause vehicle imbalance. Furthermore, the driver's field of vision and judgment will not be as good due to the height of the vehicle. Due to the installation of larger tires, the speedometer will read slower than the actual speed being traveled and more distance will be required to stop the vehicle. It is the owner's responsibility to caution and warn any potential driver of the vehicle about these driving and handling conditions.

Zone OffRoad Products will not be held liable or responsible for damages or personal injuries resulting from the use of lifting devices and/or related products. The tires and rims should be changed to sufficiently increase the vehicle's total overall width and stability to help accommodate lifting devices.

Zone OffRoad Products also recommends that the steering system on lifted vehicles be appropriately corrected to reduce steering stress and angles. Once completed, the vehicle should be inspected by a professional mechanic including such areas as the steering system, brake system, speedometer re calibration, and clearance, for tire and suspension travel and tightness of all installed products. Every Zone OffRoad Products suspension kit includes a "Driver Warning" decal and the literature explaining this information which should be read and understood completely before driving, and the decal should be placed in a position clearly visible by the driver and all occupants.

NOTICE: Most states have some type of law limiting vehicle height. The amount of lift allowed, and how the lift can be achieved, varies greatly. Several states offer exemptions for farm and commercial registered vehicles. It is the vehicle owner's responsibility to check state and local laws to ensure that their vehicle will be in compliance.

Zone OffRoad Products reserves the right to make changes in design, materials, specifications and product changes as deemed necessary without prior notice and without assuming and obligation to modify any product previously manufactured. Obligation or liabilities will not be assumed with respect to similar products.

All Zone OffRoad Products material is copyrighted.

Zone Tow Strap Warranty
Zone tow straps are GUARANTEED FOR LIFE against breakage. If you snap one of these straps, return it with the original purchase receipt and we will replace it!

We cannot warrant against straps that have failed due to sharp objects or cuts or normal wear and tear. This warranty does not cover shipping and handling.
