ROUGH COUNTRY 4.5 INCH LIFT KIT DIESEL | FORD SUPER DUTY 4WD (2015-2016)

(0) Reviews: Write first review
RC-567.20
Pricing: $1,019.95

Customize Your Item

- Select Kit Configuration: -
 * required
Qty:
Free Shipping

Description

Give your 15-16 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

This kit features a set of front, lifted coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting.

A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 4.5" 15-16 Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.

Best of all, Rough Country's 4.5” Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty!

FEATURES

    • Easy bolt-on installation
    • Increased ground clearance
    • Levels the front with the rear of the vehicle
    • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
    • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
    • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

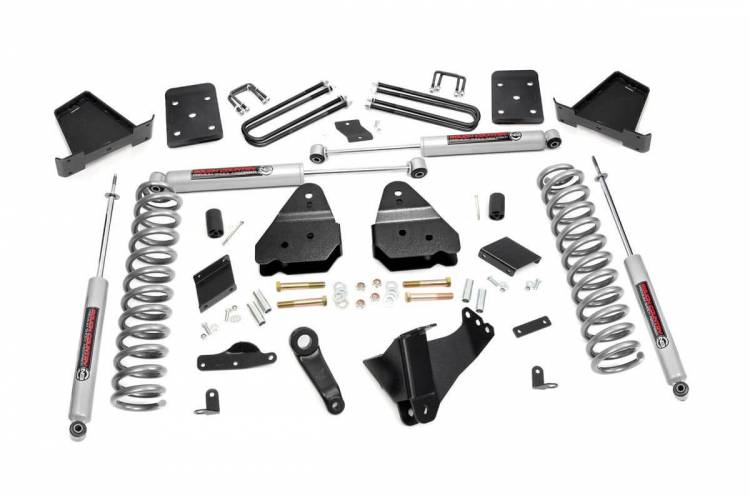

OPTIONAL PREMIUM N3 SHOCKS



  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

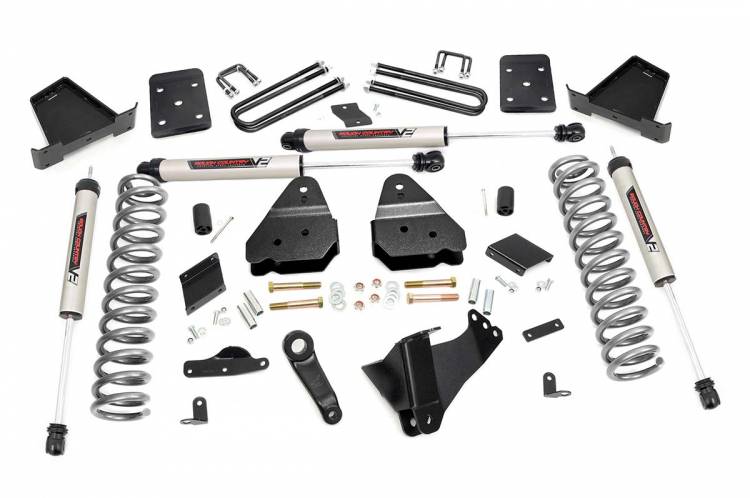

OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

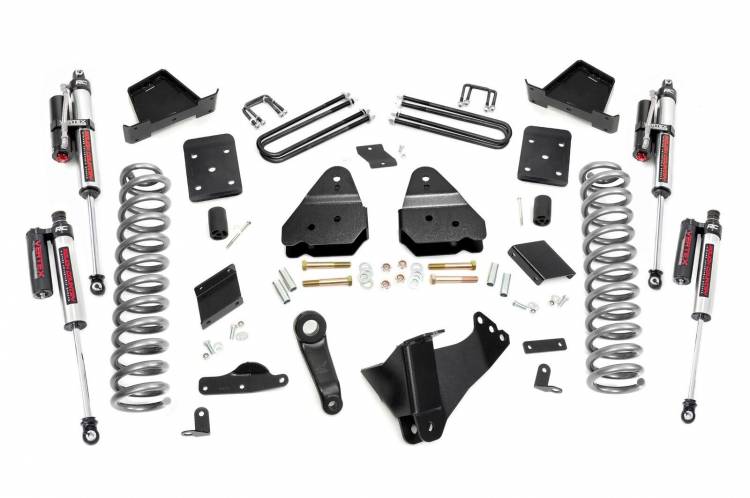

OPTIONAL VERTEX SHOCKS



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • Does NOT fit F-350 models.
  • Does NOT fit gas engine models.
  • Does NOT fit dually models.
  • A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)
FRONT
  • Lifted coil springs
  • Radius arm drop brackets
  • Sway-bar drop brackets
  • Track bar drop bracket
  • Stabilizer relocation brackets
  • Pitman arm
  • Brake line brackets
  • Bumpstop spacers
  • Hardware
REAR
  • Fabricated lift blocks
  • Brake line brackets
  • U-bolts
  • Hardware
SHOCKS
  • (4) Premium N3 series
Est. Install Time 4-6 hours
2015-2016 4WD Ford F-250 Super Duty
35x12.50R17 17x9 8x170 -12 -
35x12.50R18 18x9 8x170 -12 -
35x12.50R20 20x9 8x170 -12 -
