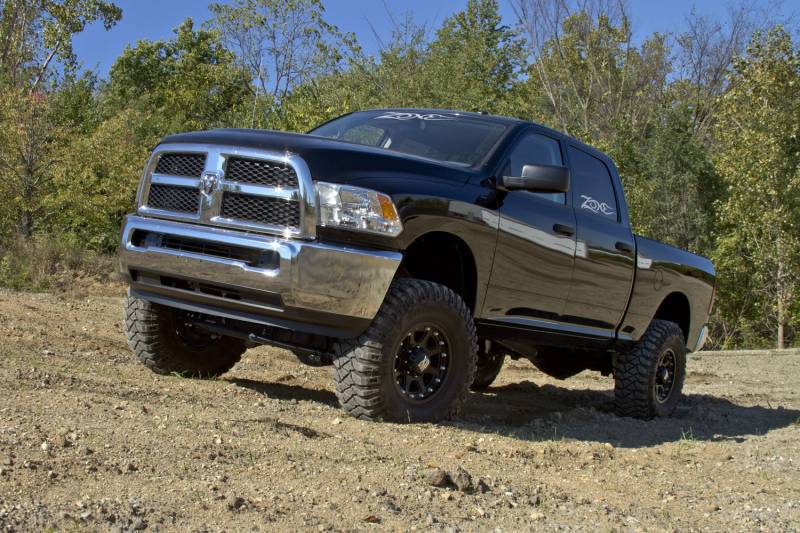

Zone Offroad 4" Suspension System 2013-17 Ram 3500 (GAS) - D64

ZND64
Pricing: $862.60

Customize Your Item

- Dodge Carrier Bearing Drop Kit -
 * required
- Dodge Driveline Adjustment -
 * required
- Dodge Rear Suspension Option -
 * required
- Dodge Shocks -
 * required
- Dodge Steering Upgrades -
 * required
Qty:
Free Shipping

Description

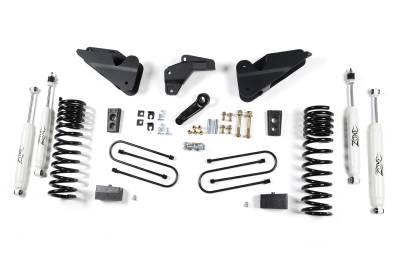

Zone Offroad 2013-17 Ram 3500 (Gas, Including 6.4L) 4" Suspension System. This new lift system utilizes heavy duty drop brackets to relocate the new factory Ram radius arms. The new relocation brackets tie into the factory radius arm mounts as well as additional support to the frame. This relocation corrects the suspension geometry to compensate for the 4" of lift provided by the progressive rate coil springs.

Extended bump stops, dropped pitman arm, track bar relocation and brake line relocation round out the front components. The rear is lifted via a 3" block and u-bolts. For those looking for a lower rear stance, choose the 2" rear block kit. Available with both standard and Nitro shocks.

Featured Technology & Benefits
Utilizes Heavy Duty Drop Brackets
Correct Suspension Geometry
Progressive Rate Coil Springs

Important Notes!
Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5405.
Not designed for dually models.
Not designed for factory rear airbag suspension models.
Fits 6.4L equipped models.

This product fits the following applications:

13-17 Dodge/Ram Ram 3500 4WD Gas

Quick Specs

Front Lift Height: 4?
Front Lift Method: Radius Arm Drop Brackets
Rear Lift Height: 4
Rear Lift Method: Block
Difficulty Level 1-5: 3
Wheel Size: 17x9+
Back Spacing: 4.5?
Max Tire Size: 35 X 12.50
Wheel Size: 17x9+
Back Spacing: 5.625?
Max Tire Size: 37 X 12.50
