Zone Offroad 4" Suspension Lift Kit 13 -17 Dodge Ram 1500 - D42/D43

ZND42/D43
Pricing: $1,458.65

Customize Your Item

- Ram 1500 Suspension Parts -
 * required
- Rear Suspension Option -
 * required
Qty:
Free Shipping

Description

Zone Offroad 2013 -2017 Dodge 1500 4wd Gas & Diesel 4" Lift System

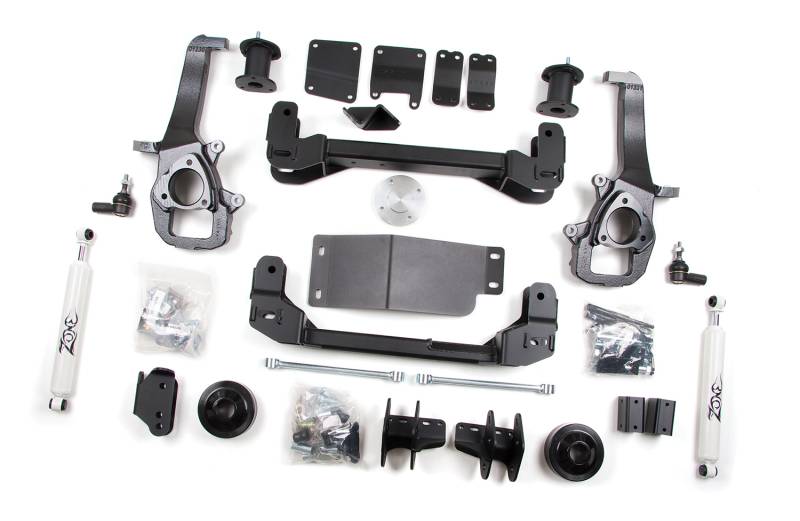

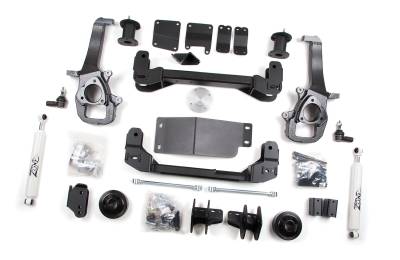

The main components of the Zone Offroad 2013 -2016 Dodge 1500 4" Suspension System are front and rear crossmembers, strut spacers, and sway bar links that work together with the new extended steering knuckles and replacements tie rod ends. These components are designed to maintain proper handling characteristics and work with the factory traction control system. Unique to this system from the 09-11 models is an all new differential relocation system specifically designed for 2012 front differential housing. A differential skid plate is included for added strength and protection for trips off the beaten path.

Since many of the vehicles tested by Zone Offroad had a significant tail high stance from the factory this 4" system comes standard with 2" rear coil spacers to help level the vehicle. Zone Offroad also offers 3" rear coils springs depending on your desired stance. It's best to measure your truck before ordering to determine how much rear lift is needed to give your truck the attitude you intend to. Both the 2 and 3 inch rear lift systems include upper control arm relocation brackets to avoid unwanted pinion movement under load.

Make your new 2013-17 Dodge stand out with a brand new, quality, yet affordable suspension lift from Zone Offroad and be glad you did.

Featured Technology & Benefits
Front strut top spacer - no strut disassembly required
Maintains handling and ride charateristics and works with factory stability control
3" rear coil springs or 2" coil spacers
Differential skid plate included
CNC machined steering knuckles

Important Notes!
Will not fit Mega Cab models.
Not recommended for AWD models.
Will not fit adjustable air suspension equipped models
TRX models require removal of the lower skid plate but it is replaced in our lift system.

This product fits the following applications:

14-17 Dodge/Ram Ram 1500 4WD Diesel
13-17 Dodge/Ram Ram 1500 4WD Gas

Quick Specs

Front Lift Height: 4?
Front Lift Method: Upper Strut Mounts
Rear Lift Height: 2? / 3?
Rear Lift Method: Coil Spacers (2?) / Coil Springs (3?)
Install Time Hrs: 8-10
Difficulty Level 1-5: 3
Wheel Size: 17x9
Back Spacing: 4.5?
Max Tire Size: 35x12.50
Wheel Size: 18x9
Back Spacing: 5?
Max Tire Size: 35x12.50
Wheel Size: 20x9
Back Spacing: 5?
Max Tire Size: 35x12.50
