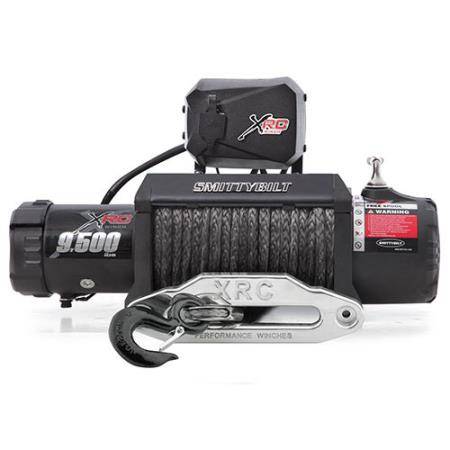

XRC 9.5 Comp Gen2 9,500 lb Winch IP67 Comp Series W/Synthetic Rope & Aluminum Fairlead Smittybilt

S/B98495

Description

The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is finished in a rugged UV-Resistant matte black coating with stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime.

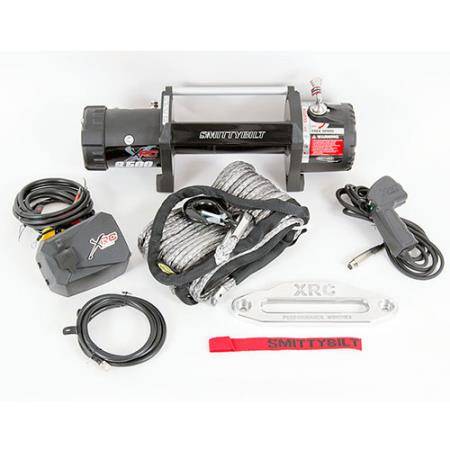

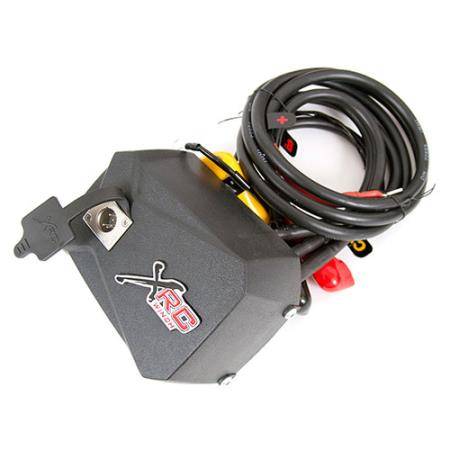

Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation. Winch includes a Lifetime Mechanical Warranty and 3 Year Electrical Warranty.
Details:

  • Waterproofing: IP67 Rating

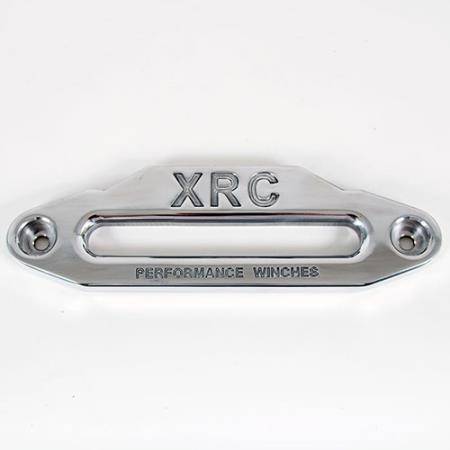

  • Fairlead: Hawse
  • Rated Line Pull: 9,500Lbs (4,309kgs) single-line
  • Remote Control: Included
  • Motor: 6.6hp Series Wound
  • Recommended Battery: 650CCA Minimum for Winching
  • Control: Remote Switch, 12â?? (3.7m) lead
  • Battery Leads: 25mm, 72" (1.83m)
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 161.28:1
  • Finish: Textured Black
  • Weight: 46.0 lbs (20.9 k)
  • Clutch: Sliding Ring Gear Mounting
  • Bolt Pattern: 10.0 " x 4.5 "
  • Brake: Automatic In-Drum
  • Overall Dimensions (L x W x H): 22.3" x 5.4" x 9.4"
  • Drum Size: Diameter 2.5"
  • Cable type: Synthetic Rope
  • Cable: 98.5â?? 3/8â? Diameter
