BDS Suspension 4" Radius Arm Drop Suspension System for 2014-18 Ram 2500 Diesel 4WD w/ Rear Air Ride Diesel Only - 1631H

BDS1631H
Shipping: Please note a 3-5 day lead time may apply prior to shipment
Pricing: $1,571.21

Customize Your Item

- Front Shock Selection -
 * required
- Rear Shock Selection -
 * required
- Sway Bar Disconnects -
 * required
- Steering Stabilizer Options -
 * required
- Adjustable Rear Track Bar -
 * required
- Adjustable Front Track Bar -
 * required
- Brake Line -
 * required
- Carrier Bearing Drop Kit -
 * required
Qty:
Free Shipping

Description

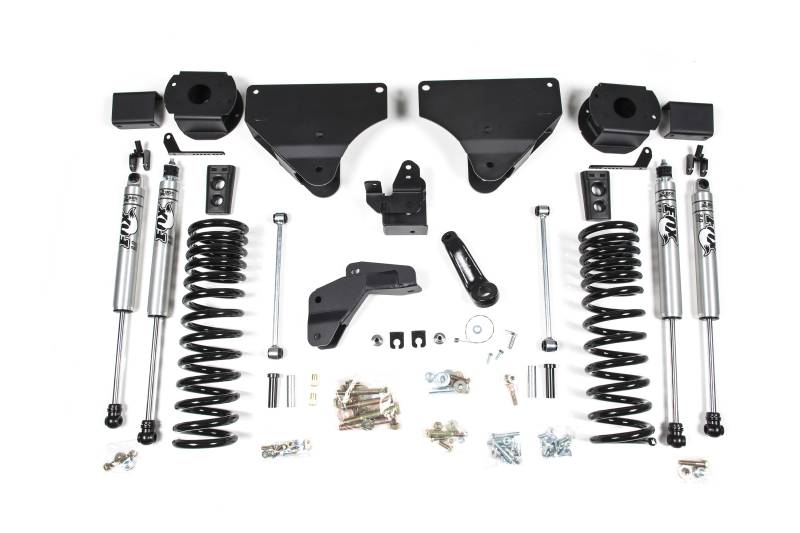

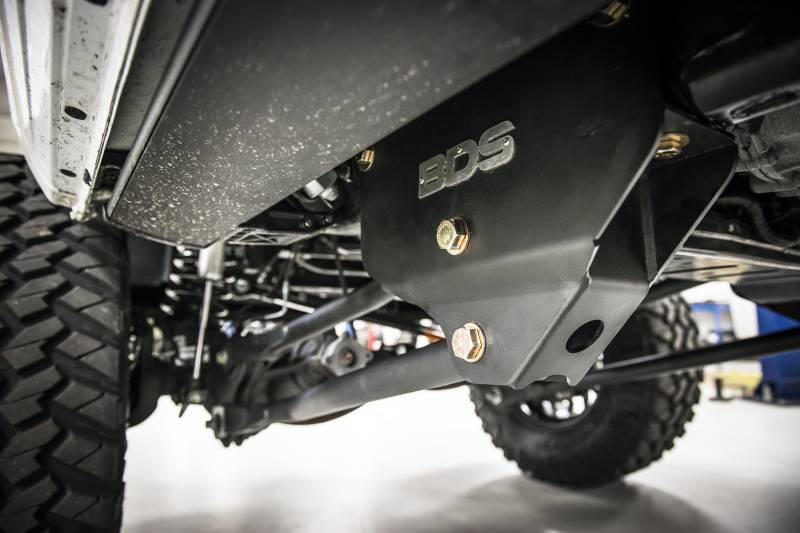

This 4" Radius Arm Drop System uses a pair of 1/4" thick steel radius arm relocation brackets to reposition the factory radius arms and correct suspension geometry and caster at 4" of lift. These brackets are designed for quick installation and create a stout mounting location for the radius arms by tying into both the factory radius arm frame mount and the side of the frame rails.

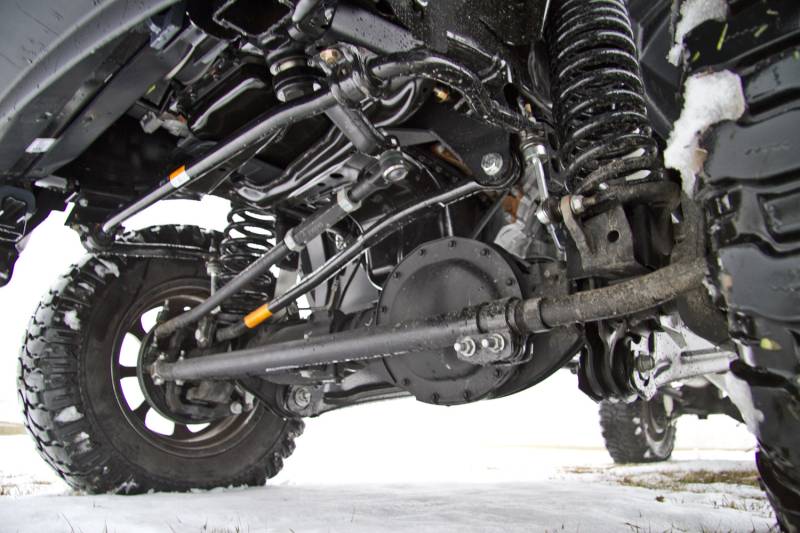

The additional height comes from a pair of specially designed progressive rate ProRide coil springs. The 4" coils have been engineered and tested to improve the ride quality and performance across all terrains while holding up to the rigors that heavy duty truck owners demand. A heavy duty track bar relocation bracket is included to recenter the front axle once lifted as well as a forged drop pitman arm to correct steering angles. Sway bar relocation brackets are used to reposition the front sway bar assembly and the supplied brake line brackets allow for the easy adjustment for the stock lines to be reused with the lift kit.

In the rear, 1/4" steel, 3.5" tall gusseted air bag spacers are used along with a rear track bar bracket to correct axle positioning, extended length sway bar links, and bump stop extensions. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX² series or FOX 2.0 shocks.

Important Kit Notes
1. Not for use with factory rear coil spring suspensions
2. Fits Diesel Models Only
3. Will not fit RAM 2500 Powerwagon models
4. Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit #122405

Tire & Wheel Combinations
37x12.50 w/17", 18", 20"x9 and 5.625" back spacing
35x12.50 w/17", 18", 20"x9 and 4.5"-5.625" back spacing
*Trimming may be required*

Est. Installation: 6-8 hours
Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

2014 Dodge / Ram 2500 Pickup w/ Rear Air-Ride
2015 Dodge / Ram 2500 Pickup w/ Rear Air-Ride
2016 Dodge / Ram 2500 Pickup w/ Rear Air-Ride
2017 Dodge / Ram 2500 Pickup w/ Rear Air-Ride
2018 Dodge / Ram 2500 Pickup w/ Rear Air-Ride

BDS Suspension Lift Kit Warranty
No Fine Print Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
