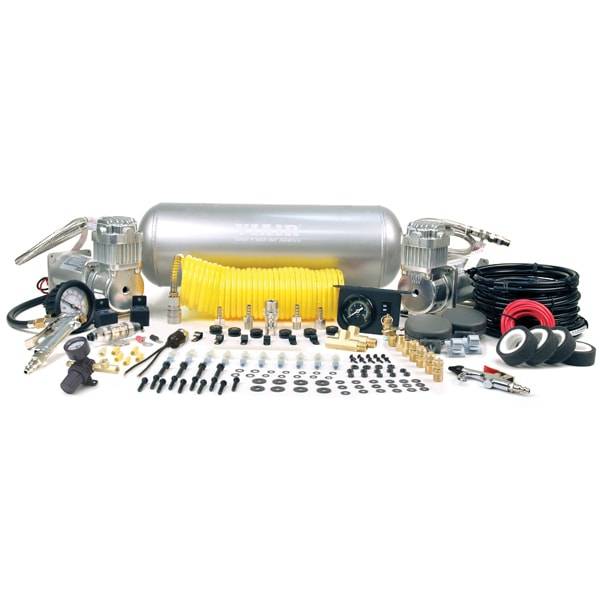

VIAIR Super Heavy Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank) *Up to a 35" Tire - 10008

VIAIR’s Super Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 325C, 33% duty cycle compressors, a2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

Please Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8? is 10 ~ 11 ft. lbs. Recommended torque for 1/4? and 3/8? is 12 ~ 15 ft. lbs.



FEATURES
– 2.0 Gallon VIAIR Air Tank
– (2) 325C VIAIR Compressors
– 30ft. Coil Hose with Quick Connects
– Tire Inflation Gun with 160 PSI Gauge
– Dash Panel Gauge with ON/OFF Switch
– 0-220 PSI Pressure Regulator
– Blow Gun Air Tool
– Sealed Pressure Switch (110 PSI on, 145 PSI off)
– (2) 40-amp Relays
– (2) T-Fittings (1/4” (M) x 1/4? (F) x 1/8” (F))
– 1/4” Quick Connect Stud (F)
– 1/4” Quick Connect Coupler (F)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (2) 1/8” BSP to 1/4” NPT
– (4) 1/4” Compression Fittings
– 20ft. 12-Gauge Wire with Inline Fuse Holder
– 4” Strip of Continuous Grommet Material
– Accessory Airline
– Electrical Connections

SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 38 Amps
– Ingress Protection Rating: IP67
–
All Fittings are NPT rated unless otherwise noted.



PERFORMANCE DATA
PSI CFM A BAR LPM A
0 3.21 21 0 91.0 22
10 2.81 24 1.0 76.0 28
20 2.54 27 2.0 68.0 31
30 2.40 30 3.0 64.0 33
40 2.30 32 4.0 59.0 35
50 2.19 33 5.0 55.0 36
60 2.07 34 6.0 53.0 36
70 1.98 35 7.0 51.0 36
80 1.91 36 8.0 47.5 37
90 1.85 36 9.0 45.0 37
100 1.78 36 10.0 42.0 37
110 1.73 37
120 1.66 38
130 1.59 37
140 1.52 37
150 1.45 37
* Supply Voltage: 13.8 Volts

FILL RATES

2.0 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 26 sec. (± 05 sec.)
110 to 145 PSI 25 sec. (± 03 sec.)

33? X 12.5? FILL RATE
0 to 30 PSI 3 min. 40 sec. (± 10 sec.)
15 to 30 PSI 1 min. 50 sec. (± 05 sec.)

35? X 12.5? FILL RATE
0 to 30 PSI 4 min. 36 sec. (± 10 sec.)
15 to 30 PSI 2 min. 20 sec. (± 05 sec.)
