Motobilt JEEP YJ BEHIND THE SEAT FUEL TANK - MB5000

MB5000
Availability: Please be aware that Motobilt products may be subject to a lead time of 14 days prior to shipment.

Description

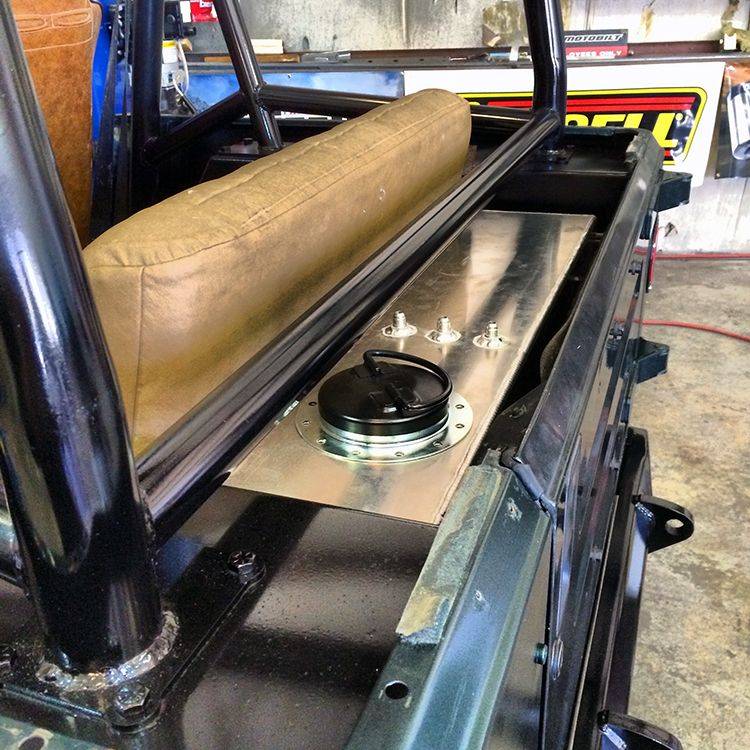

Motobilt offers a solution for relocating the fuel tank in your Jeep YJ. There are a few "universal" options available like the popular RCI 2161a which is basically a rectangular aluminum fuel cell. It was not designed specifically for the Jeep YJ. The Motobilt Jeep YJ fuel tank was designed to fit behind the rear seat and maximize the space behind the seat. It is actually contoured and angled to fit behind the seat. The tank has a capacity of roughly 18 US gallons.

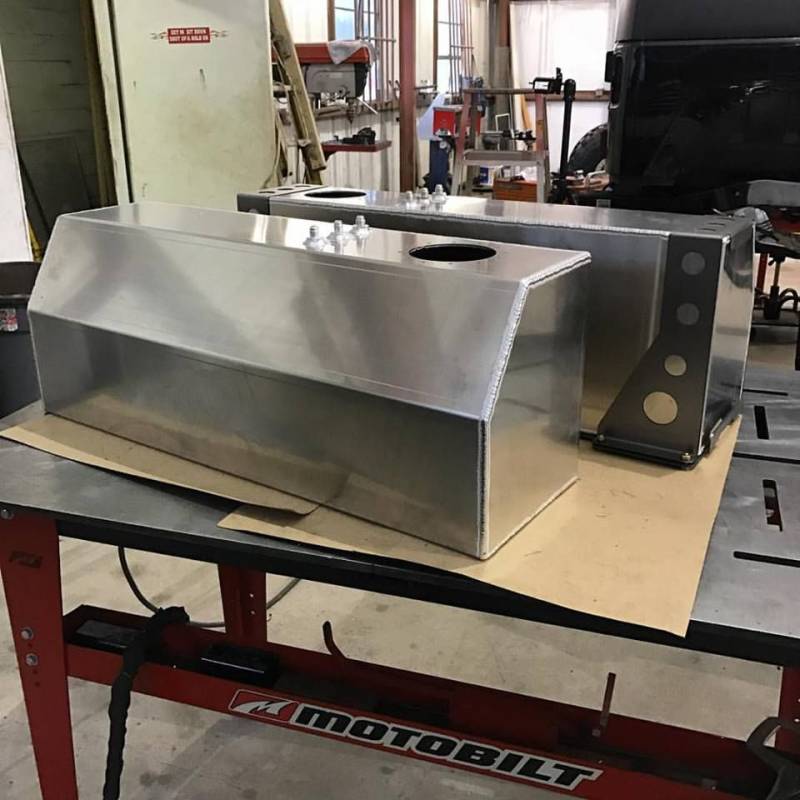

The Motobilt fuel tank is CNC cut from 1/8" 5052 aluminum and formed on a press brake. The tank is TIG welded for ultimate strength. The tank includes a large D-ring style cap. This can be converted to remote fill by purchasing a different filler neck system.

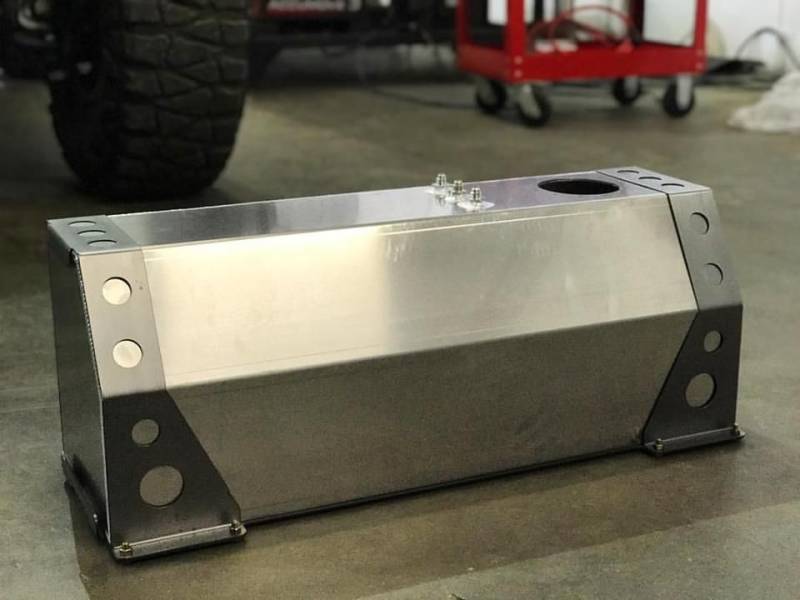

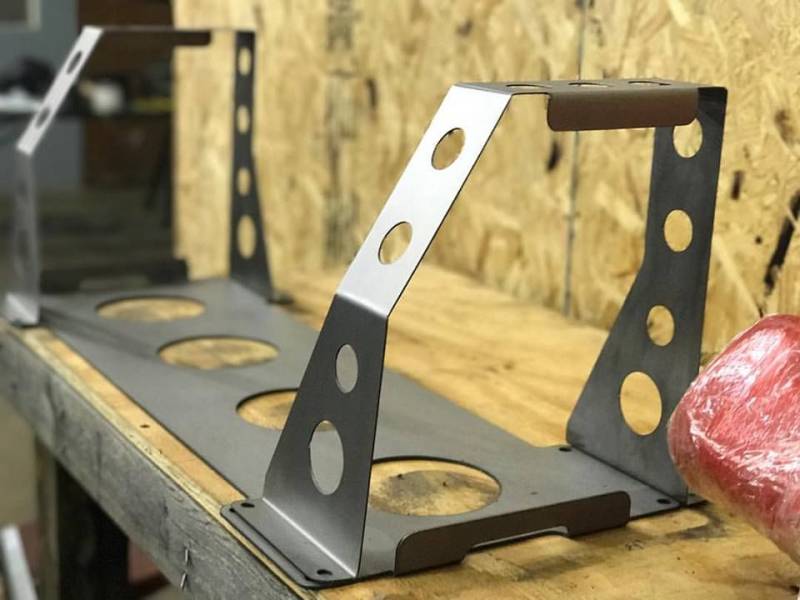

We have developed a mount specifically for the MB5000 Fuel Cell. The kit consists of three parts: the main under tank plate and two clamp bodies. The under tank plate is CNC Laser Cut from .125" high strength steel plate. You can weld your own mounting brackets to the bottom if needed or utilize the 8 bolt holes already in the mount. The 2 clamp down bodies capture the top and all four sides of the tank and bolt securely to the mounting base. These parts are CNC Laser Cut but from 16 gauge steel. The parts are formed on a hydraulic press break. This mount will ensure your fuel cell is mounted securely.
Just use the drop down menu to add the mount to your order.

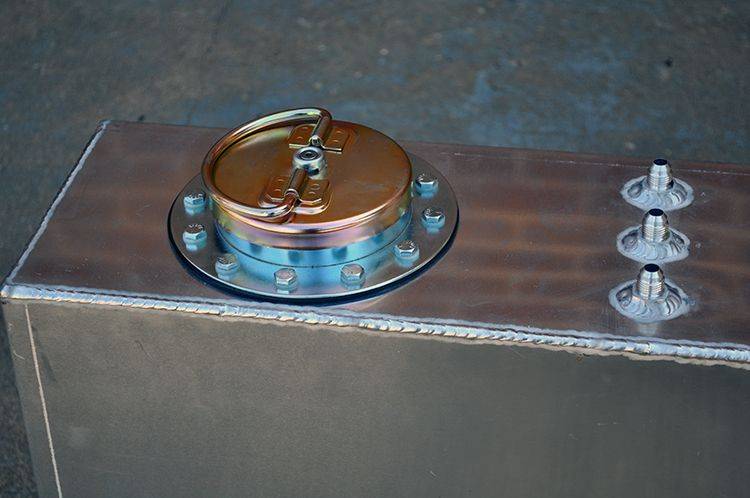

The Motobilt tank features three #6 -AN fittings on top of the tank which are tig welded into place. The fittings are for:
1. Vent with an included roll over valve pre-installed inside the tank.
2. A return line.
3. A pick up tube. The pickup has a barb fitting inside the tank and rubber hose extending to the bottom of the tank.
In the bottom center of the tank we have welded a trap to hold the hose in the center. If you ever need to relocate the tube you can reach through the filler neck opening and move it.
This fuel cell is used for applications where you are extending the wheel base and the rear axle would contact the factory fuel tank. It would also be used in situations where more ground clearance is needed. This kit works perfectly with the Motobilt Jeep YJ Back Half Kit where the frame rails are moved up and in for ultimate clearace.

The Motobilt YJ Behind the Seat Tank will not fit in the Jeep TJ. It would have to be cut and clearanced in a few places. We plan to fabricate one specificly for the TJ at some point in the future.
