MOTOBILT 51.5" LED LIGHT BAR MOUNT FOR JEEP WRANGLER TJ/LJ - MB1005

MB1005
The Motobilt 52" LED Light Bar Brackets were design for both form and function. Be sure to read the full description below for details on this Jeep Wrangler TJ / LJ LED Light Bar Mount System
Availability: Please be aware that Motobilt products may be subject to a lead time of 14 days prior to shipment.

Description

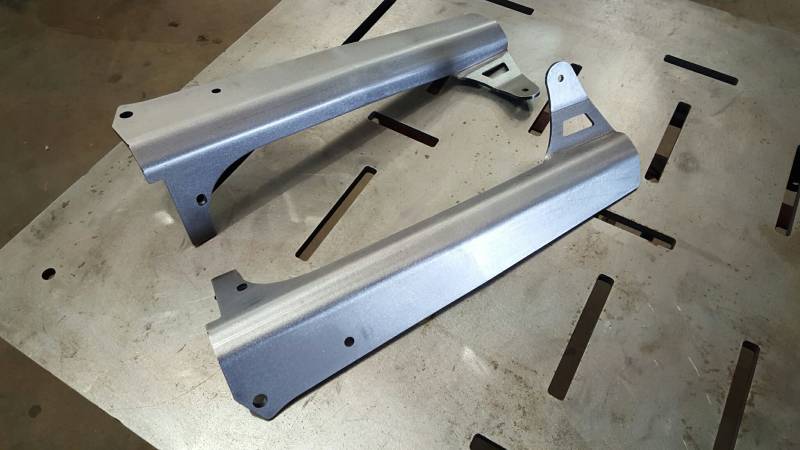

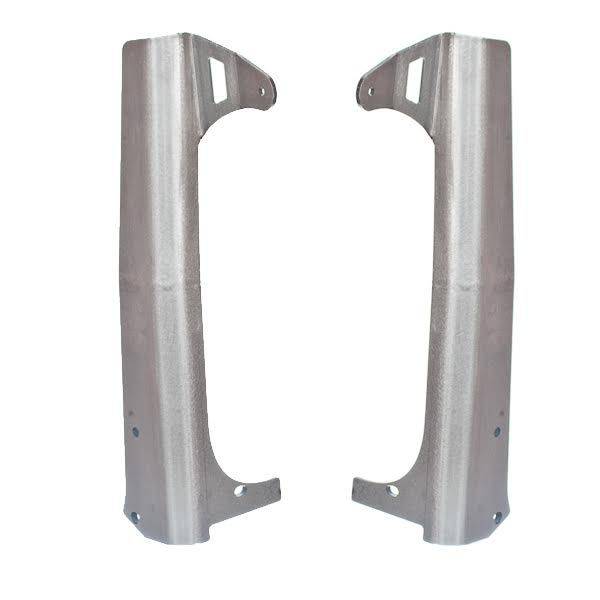

The Motobilt LED Light Bar Mount was designed with both form and function in mind. This 52" LED Light Bar Mount works with LED Light bars measuring 52" wide at the mounting points. The mounting brackets were 3D CAD designed to fit close to the windshield frame without touching it. The only contact points are on the windshield hinge. The brackets are CNC laser cut from 3/16" high strength steel plate and then formed on a hydraulic pres brake. The material used to fabricate the brackets is the exact same material used to make rocker guards and comp corners for ultimate protection.

The Motobilt LED Light Bar Mounts not only mount light bars they also provide protection to the windshield frame. The Motobilt TJ/LJ light bar brackets extend to the top of the windshield frame to provide full protection. To extend the LED Light Bar Brackets to the top of the windshield frame and keep a tight fit we had to add an additional bend half way up the bracket. The mounting point at the base of the brackets feature spacers welded in place to stand the bracket off the windshield frame. The allows the bracket to be spacer off the windshield frame and allow the wiring for the LED Light Bar to pass down behind the bracket. Please note not all wiring harnesses will fit. You will need to test fit to make sure the wire fits loosely behind the bracket during the install process. Mounting the brackets is a simple process. The brackets bolt into the upper half of the Jeep TJ/LJ windshield hinge. The light bar brackets are shipped bare steel. You will need to paint or powder coat them before use. The brackets ship with button head bolts and washers.

if you choose to add the optional 3" LED Cube Light Tabs we will weld them on before they ship. If you have any questions feel free to CONTACT US.

FEATURES
Fits 1997-2006 Jeep Wrangler TJ and LJ
Designed with 3D CAD Software
CNC Laser Cut
Press Brake Formed
3/16" High Strength Steel Plate
Integrated and welder spacers on the back side.
Extend to the top of the windshield frame
Works with LED Light Bars with mounting width of 52"
Ships Bare Steel.
Includes Hardware
Spacers at the base hold part off windshield frame and allow wire to pass down behind the mount.
Optional Tabs welded on for 3" LED Cube Lights (See DROP DOWN MENU to add)
