Icon 2018-UP Jeep JL 2.5" Suspension System - Stage 1 - K22011

IVD-K22011
Please Call for Availability
888-411-8493

Description

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.

The ICON Vehicle Dynamics Stage 1 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. The Stage 1 system is ICON's entry level offering for Jeep enthusiasts looking to add lift height and wheel travel to their JL without breaking the bank. This system includes 2.5" lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The Stage 1 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (PN: 22029) is available.

Holistic Engineering - the ICON Difference
When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.



KEY FEATURES:

  • 2.5" lift height
  • Fits 35" tires (37" with optional extended bump stop spacer kit PN: 22029) - Available in options above
  • 3" front, 2" rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Dual rate coil springs with lifetime guarantee against sagging/breakage
  • 2.0 Aluminum Series shocks with vehicle specific valving
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability


TECH INFO:

  • Recommended wheel and tire fitment is based on a JL Rubicon
  • Advertised lift heights based on a stock, 4 door JL Rubicon
  • 2 Door models will sit higher than 4 door models



WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8.5 Wide, 4.75" Backspace

Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: 22029)

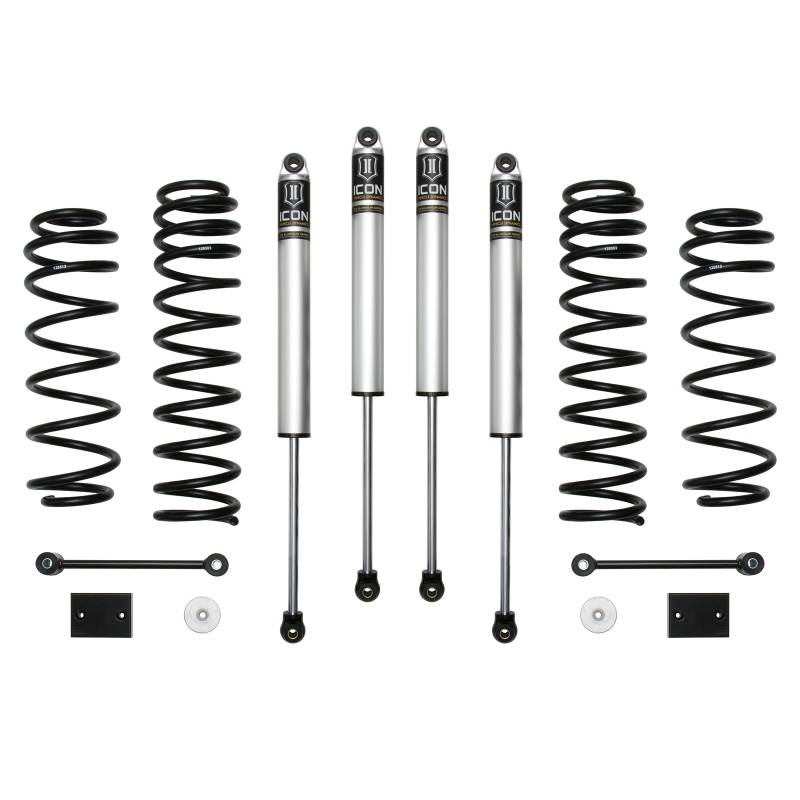

SYSTEM COMPONENTS:

22025 (QTY.1) | 18-UP JL 2.5" FRONT DUAL RATE COIL SPRING KIT

22026 (QTY.1) | 18-UP JL 2.5" REAR DUAL RATE COIL SPRING KIT

26523 (QTY.2) | 18-UP JL 2.5" FRONT 2.0 ALUMINUM SERIES SHOCK VS IR

26524 (QTY.2) | 18-UP JL 2.5" REAR 2.0 ALUMINUM SERIES SHOCK VS IR



OPTIONS:

22029 | 18-UP JL EXTENDED BUMP STOP SPACER KIT
