Zone Offroad 4" Combo Lift Kit 09-11 Ram 1500 4WD - D60

ZND60
Not Available
Pricing: $804.94

Description

Zone Offroad Combo Kits for 2006-up Ram 1500 4wd trucks. These 3 new combo kits bring together the great features of our popular line of 1.5" Ram Body Lifts with the recently released Ram 1500 Adventure Series Upper Control Arm suspension systems.
What you get is a perfect combination to clear a 35" tire at a very affordable price without skimping on features or performance. There are 3 kits to cover the variation in model years. The 2006-08 models and 2009-11 models share the same suspension setup which is built around the massive replacement UCAs, strut spacer system and differential relocation.

The 2012-2014 model kit utilizes the same UCAs with a slightly different strut spacer system and does not require the differential relocation.

On the body lift side, all 3 kits get model year specific designs that include everything needed to properly lift the body and bumpers 1.5".

Replacement UCA Ball Joint #: 500-1134 (Raybestos)
Replacement UCA Bushing #: 560-1098 (Raybestos)
*Available at most local auto parts stores*

Featured Technology & Benefits

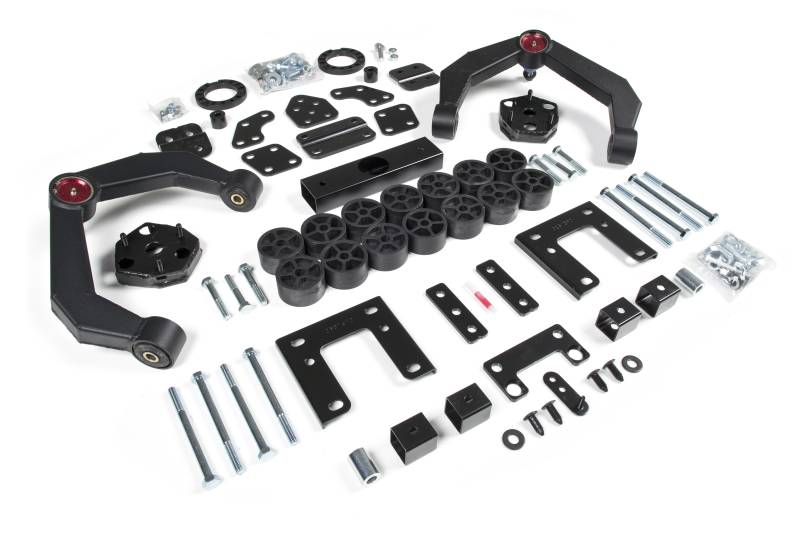

  • Combo package: 2.5" Adventure Series System & 1.5" Body Lift
  • New Heavy Duty Upper Control Arms w/ Replaceable Ball Joints
  • Allows up to a 35x12.50 tire
  • Limited Lifetime Warranty

Important Notes!

  • Strut compressor required for installation
  • Minor frame bracket trimming necessary for differential clearance
  • Frame horn modification necessary for installation of new front bumper brackets
  • Rear bumper relocation is for appearance only and cannot be used for towing. Standard receiver hitch function is not affected
  • Not to be used with any other form of leveling/lifting suspension systems

This product fits the following applications:

  • 09-11 Dodge/Ram Ram 1500 4WD

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: UCA & Body Lift
  • Install Time Hrs: 6
  • Difficulty Level 1-5: 3
  • Wheel Size: 17x9
  • Back Spacing: 4.75″ - 5″
  • Max Tire Size: 35x12.50
