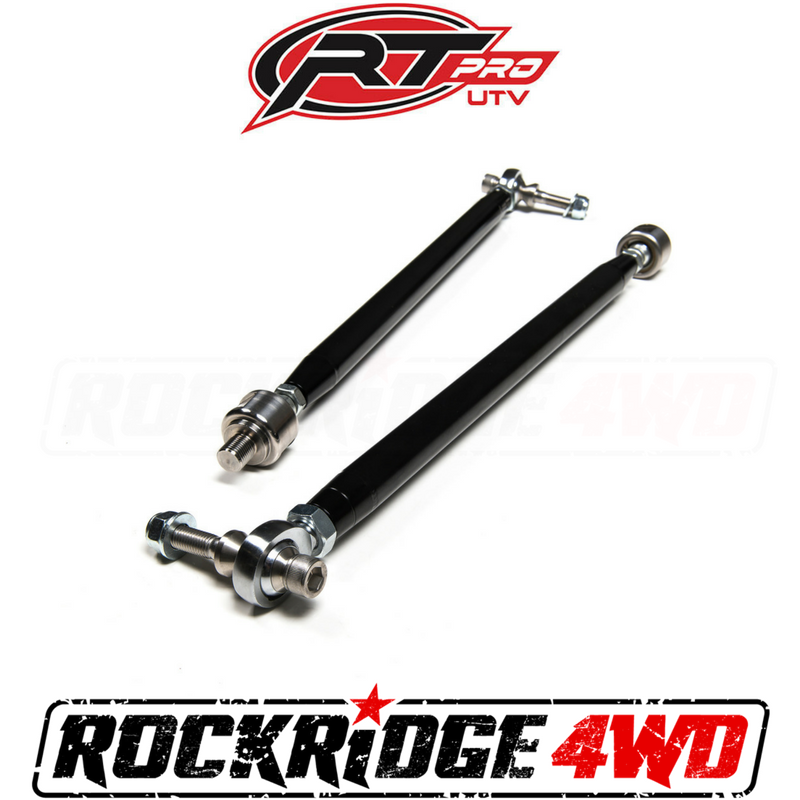

RT PRO CAN AM Maverick - HD Tie Rods Replacement Kit *Select Model* - RTP5602503 - RTP5602504

RTP5602503-RTP5602504


Pricing: $325.04

Customize Your Item

- Select Model -
 * required
Qty:

Description

Ever break a tie rod in the middle of nowhere? If you don't have this kit you will eventually... If you have then you already know about the problem these machines have. When you break a tie rod the factory makes you buy a whole new steering rack too. What most people don't know is the steering rack is not the weak link. The inner tie rod joint itself is what breaks, this part can be removed from the rack and the rack will still be perfectly functional. All you need to fix the problem once and for all is this tie rod replacement kit from RT Pro. This kit replaces the weak inner pivot assembly with a custom Chromoly monoball and a custom made 300M heat treated stud held by a custom grade 12.9 cap screw in a high precision stainless steel cup. Unlike many conversions this kit will not affect the steering of your machine at all. Using smart design, RT Pro guarantees minimal bump steer with this kit. The components of this kit can be used with any other long travel kit you may have as well. If ever need a custom length RT Pro will custom build tie rod tubes for your application. Kits come powder coated with all necessary installation hardware and instructions.

This kit will work with forward A-arms.

This kit will NOT work with Maverick X3.

Why RT Pro HD Tie Rods?

RT Pro HD Tie Rods are the only kits on the market which do not corrupt the OEM designed geometry!Our design keeps the pivot point of the inner pivot joint in the exact location as the OEM tie rod does. Look at every other tie rod kit on the market and see what we mean. They all machine their parts the easy way and push the pivot point way out of spec! This measurement is more critical than our competitors realize. As the original designers of HD Tie Rod kits, we make our inner joint a specific way to keep proper geometry. Not the easy way. What does this dimension control you ask? This dimension controls the steering geometry in relationship to the suspension geometry. When the suspension cycles the steering relies on proper geometry to keep the wheels straight to each other as the arms swing about a radius which changes the angle of the spindle. If the steering geometry is not correct the tires will toe in and out in opposite directions of each other causing the steering wheel to jerk sporadically and make the vehicle try pushing and pulling in different directions. This effect is called "BUMP STEER". In the racing world this is very dangerous. In the recreational world the same rules apply! Don't trust you and your passengers safety to inferior engineering.

The inner pivot point is the most critical point of the tie rod geometry but the outer pivot location is equally important. Again, RT Pro has always set the bar higher than our competitors when it comes to engineering and here's another reason why. All HD tie rod kits come with "high misalignment" spacers for the outer tie rod ends. These spacers fit in to the heim joint and reduce the size of the inner hole down the the size needed to bolt the kit up to the OEM spindle. Most kits come with identical spacers for the top and bottom side. Not RT Pro's. We use spacers specifically designed for each model UTV which place the pivot point in the exact location needed for perfect steering geometry. On the outside of the heim joint we use a smaller spacer. It cost more to make two different parts but we don't care when it makes a better product. The shorter spacers allow us to use a shorter bolt. A shorter bolt means less leverage applied in high stress situations which increases shear resistance of the bolt. One more detail RT Pro include in this kit! Don't trust your machines dependability on inferior engineering.





Details

  • RTP5602503-RTP5602504
  • RTP5602503-RTP5602504
  • RT Pro
  • New

Shipping Information

  • Item Requires Shipping
  • $20.00
