BDS Suspension 4-1/2" Coil-Over Lift Kit - 01-10 Chevy/GMC HD Truck & SUV 4WD - 740FDSC

BDS740FDSC
Was: $4,954.80
Sale: $4,707.06
Save: 5%
Save: $247.74

Customize Your Item

- Steering Stabilizer Options -
 * required
- Traction Bar Selection -
 * required
- Shock Boot Options -
 * required
Qty:
Free Shipping

Description

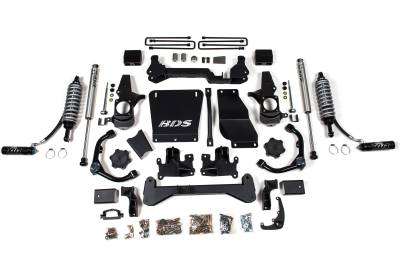

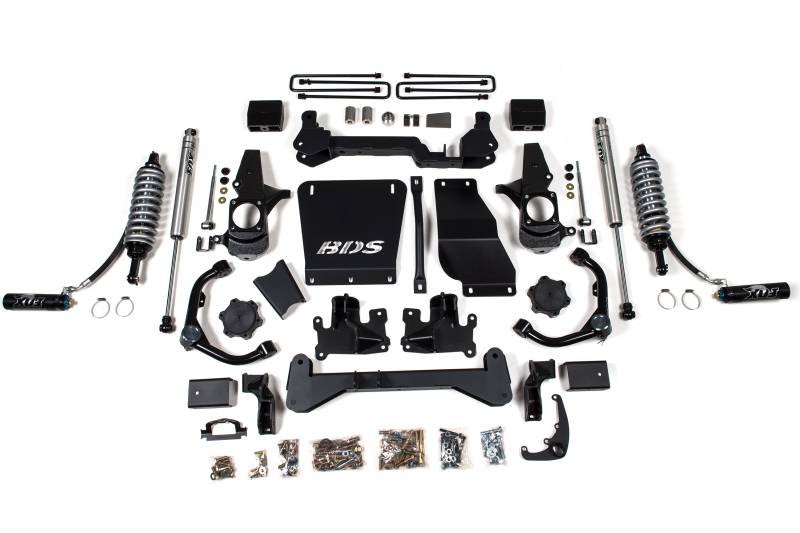

n, these 4.5" coilover systems include a pair of one-piece laser cut high clearance crossmembers, CNC machined ductile iron steering knuckles to correct steering angles, heavy duty front skid plate and differential skid plate to increase protection, multipoint differential relocation brackets to secure differential and correct CV axle angles, CV spacers, and longer sway bar links. In the rear a 3" rear block and u-bolt kit is used to level the stance while a set of FOX 2.0 performance series IFP shocks are supplied to pair with the front coilovers for impressive performance wherever your the adventures lead you.



This highly customizable kit gives you the choices you need to build your rig your way. Standard or narrow track knuckle kits, gas shocks, and dual steering stabilizers are just a few of the options and upgrades available for this 4-1/2" Chevy/GMC suspension lift kit.



Tire & Wheel Combinations

2001-2007 Classic Body Style

33" x 12.50" w/16 x 8 and 4-1/2" back spacing

35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing

35" x 12.50" w/20 x 9 and 5.75" back spacing



2007-2010 New Body Style

33" x 12.50" w/16 x 8 and 4-1/2" back spacing

33" x 12.50" w/17 or 18 x 9 and 5.5" back spacing

33" x 12.50" w/20 x 9 and 5.75" back spacing



    • Tire & Wheel Combinations

*Trimming may be required*

  • Est. Installation: 8-10 hours
  • Difficulty Level (easy 1 - 5 complicated): 4

Important Kit Notes

  • 1. Torsion Bar tool required to load/unload the torsion bars.
  • 2. Some welding required.
  • 3. Requires frame bracket modification and differential mount modification.
  • 4. Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift.
  • 5. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
  • 6. Gas models require exhaust modification.
  • 7. Narrow track knuckle will slightly increase turning radius.
  • 8. For tail high stance use #119157 add-a-leaf with the block kit or #069207 with leaf spring kit.

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Vehicle Fitment Information

  • 2001 Chevy / GMC 1 Ton Pickup 4WD
  • 2002 Chevy / GMC 1 Ton Pickup 4WD
  • 2003 Chevy / GMC 1 Ton Pickup 4WD
  • 2004 Chevy / GMC 1 Ton Pickup 4WD
  • 2005 Chevy / GMC 1 Ton Pickup 4WD
  • 2006 Chevy / GMC 1 Ton Pickup 4WD
  • 2007 Chevy / GMC 1 Ton Pickup 4WD
  • 2008 Chevy / GMC 1 Ton Pickup 4WD
  • 2009 Chevy / GMC 1 Ton Pickup 4WD
  • 2010 Chevy / GMC 1 Ton Pickup 4WD
  • 2001 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
  • 2002 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
  • 2003 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
  • 2004 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
  • 2005 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
  • 2006 Chevy / GMC 1/2 Ton Pickup 4WD K1500 HD
  • 2001 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2002 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2003 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2004 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2005 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2006 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2007 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2008 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2009 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2010 Chevy / GMC 3/4 Ton Pickup 4WD 2500 HD
  • 2001 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
  • 2002 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
  • 2003 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
  • 2004 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
  • 2005 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
  • 2006 Chevy / GMC 3/4 Ton Pickup 4WD 2500 NON-HD
  • 2001 Chevy / GMC Avalanche 2500 4WD
  • 2002 Chevy / GMC Avalanche 2500 4WD
  • 2003 Chevy / GMC Avalanche 2500 4WD
  • 2004 Chevy / GMC Avalanche 2500 4WD
  • 2005 Chevy / GMC Avalanche 2500 4WD
  • 2006 Chevy / GMC Avalanche 2500 4WD
  • 2001 Chevy / GMC Suburban 3/4 Ton 4WD
  • 2002 Chevy / GMC Suburban 3/4 Ton 4WD
  • 2003 Chevy / GMC Suburban 3/4 Ton 4WD
  • 2004 Chevy / GMC Suburban 3/4 Ton 4WD
  • 2005 Chevy / GMC Suburban 3/4 Ton 4WD
  • 2006 Chevy / GMC Suburban 3/4 Ton 4WD
  • 2001 Chevy / GMC Yukon XL 3/4 Ton 4WD
  • 2002 Chevy / GMC Yukon XL 3/4 Ton 4WD
  • 2003 Chevy / GMC Yukon XL 3/4 Ton 4WD
  • 2004 Chevy / GMC Yukon XL 3/4 Ton 4WD
  • 2005 Chevy / GMC Yukon XL 3/4 Ton 4WD
  • 2006 Chevy / GMC Yukon XL 3/4 Ton 4WD
