BDS Fox 2.5 Coil-Over Series DSC for 07-18 Chevy / GMC 1500 Pickup 2wd/4wd **Fit's 4" Lift** - 883-06-135

VEHICLE FITMENT

1/2 TON PICKUP 2WD 07-15 - ONLY

1/2 TON PICKUP 4WD 07-18

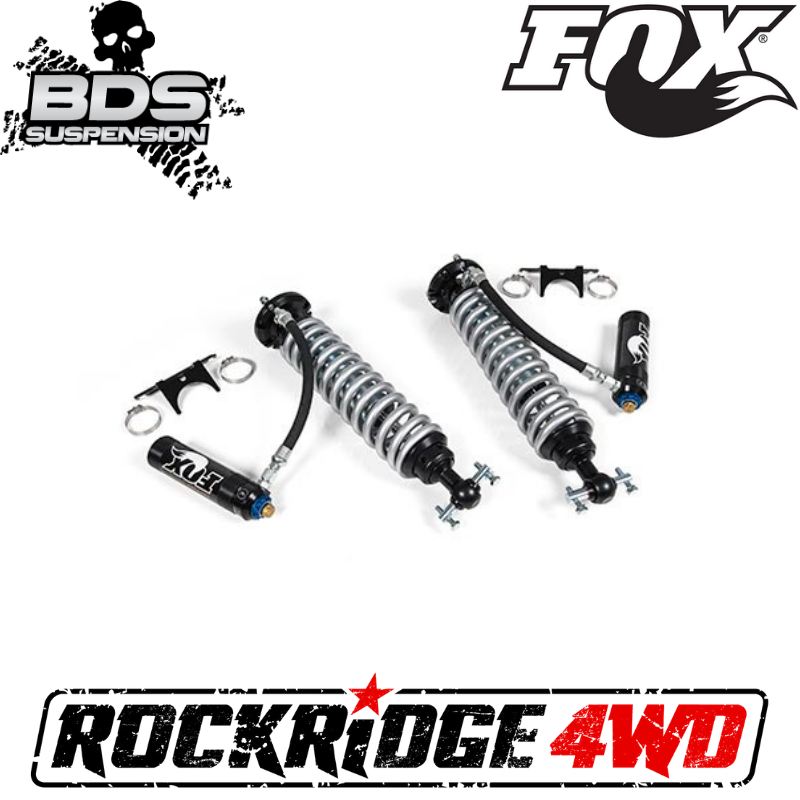

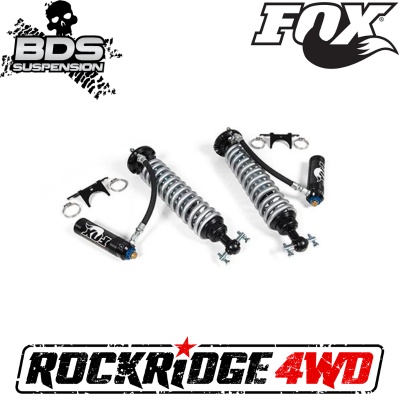

Fox Coil-Over Shock Absorbers

BDS continues to uphold our reputation of offering only high ends parts with these new coil-over shocks, a collaboration design by both BDS and Fox Racing. These shocks are built on the foundation of the Fox Factory Series 2.5 Remote Coil-over and have been designed to work with BDS lift systems.

Eibach Coil Springs

The coil-overs come preloaded with Eibach coil springs and are adjusted to achieve the proper ride height right out of the box.

Coil-Over Hardware

These coil-over kits come boxed as a pair with remote reservoir mounting brackets and all of the necessary hardware.

Shock Absorber Fitment

Although designed specifically for BDS Suspension Systems, these may work with other brand lifts, but fitment cannot be guaranteed and may require additional suspension modification for a proper setup.

Fox Racing Coil-Overs Feature

• Smooth-bore, clear coated, zinc plated alloy body
• Black anodized 6061-T6 billet aluminum mounting components
• 7/8" hard chrome plated heat treated alloy steel shaft
• High flow piston design with specially formulated race oil
• External reservoir separates shock oil from high-pressure nitrogen
• Easy bolt-on installation, no need to adjust coil spring preload

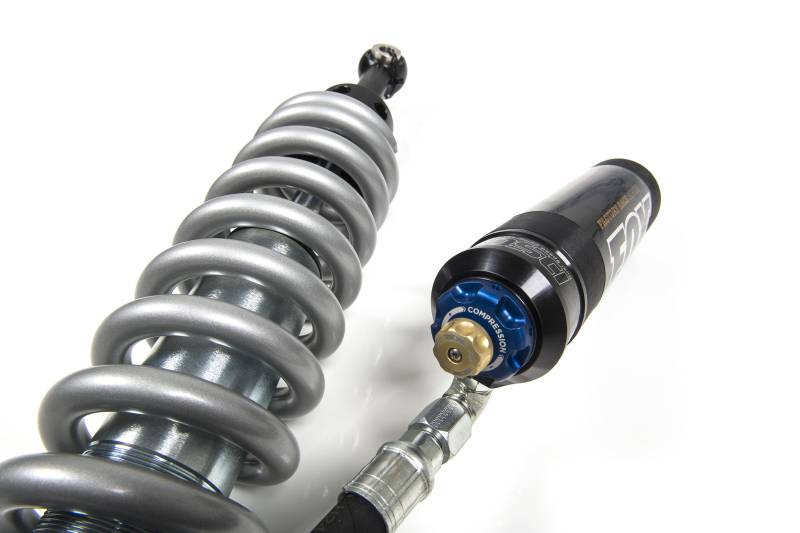

Dual Speed Compression (DSC) Adjuster

• All the Fox Racing Coil-Over Advantages Plus:
• Provides added control and comfort for on-road use
• More aggressive damping for use off-road
• DSC adjuster allows for precise suspension tuning
• No tools and no mess
• DSC increases both low and high-speed compression levels up to 25%

BDS continues to uphold our reputation of offering only high end components with these new coil-over shocks, a collaboration design by both BDS and Fox Racing. These coil-overs are built on the foundation of the Fox Factory Series 2.5 Remote Coil-over with Dual Speed Compression (DSC) adjusters and have been designed to work with BDS lift systems. The coil-overs come preloaded with Eibach coil springs and specifically tuned valving, and are adjusted to achieve the proper ride height right out of the box. These coil-over kits come boxed as a pair with remote reservoir mounting brackets, DSC adjusters and all of the necessary hardware.

FOX Dual Speed Compression (DSC) Adjuster Technology | The Dual Speed Compression (DSC) adjuster provides added control and comfort tuning for on-road use while also offering more aggressive damping for use off-road. The adjuster allows for precise suspension tuning with the simple twist of two clearly defined knobs: No tools and no mess, just a way to easily fine-tune your suspension to best suit your needs in any conditions. The DSC increases both low and high-speed compression levels up to 25%, allowing you to maximize small bump compliance and traction while still having the extra damping required for big hits.

- LSC Adjustment Range - The Low Speed Compression (LSC) adjuster knob offers 10 clicks of adjustment and primarily affects compression damping during slow suspension movements such as G-outs or smooth jump landings. It also affects wheel traction and the harshness or plushness of the vehicle's ride.

- HSC Adjustment Range - The High Speed Compression (HSC) adjuster knob offers 12 clicks of adjustment and mainly affects compression damping during medium to fast suspension movements such as steep jump faces, harsh flat landings, and aggressive wash board roads.
