SUPERATV Can-Am Defender 6" Portal Gear Lift

SAT-PGH6-7-67
Please Call for Availability
888-411-8493

Description

The Portal Advantage?

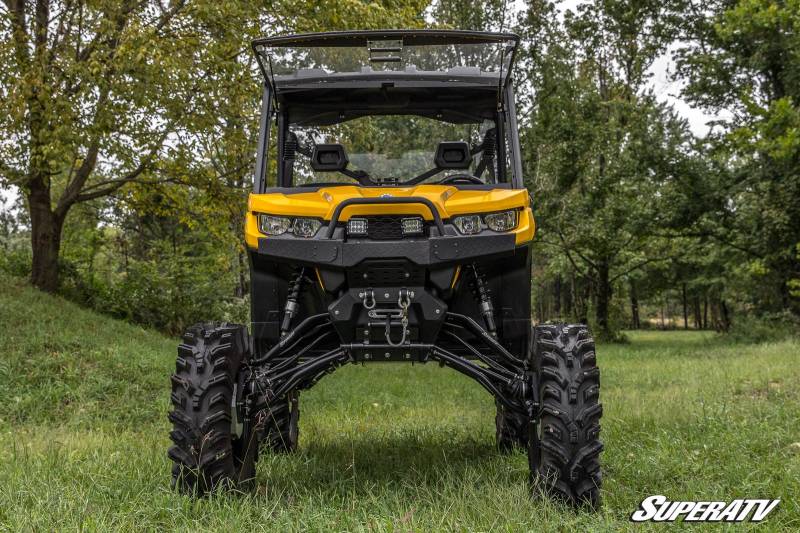

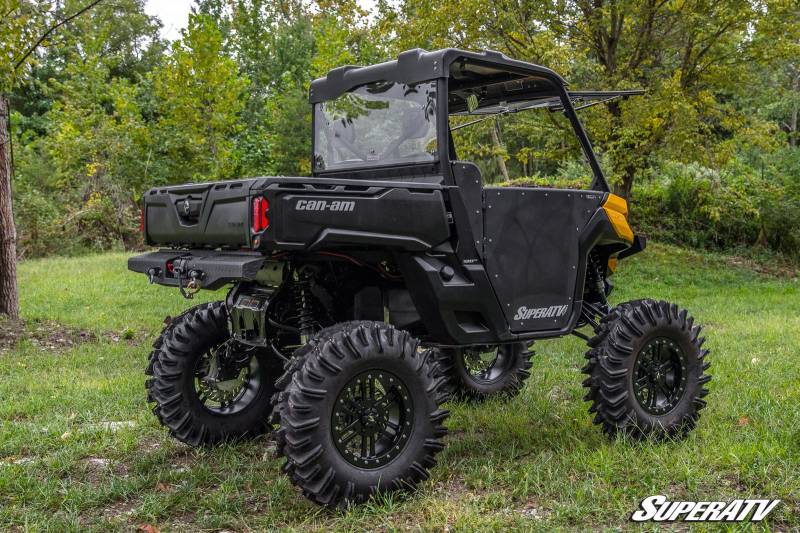

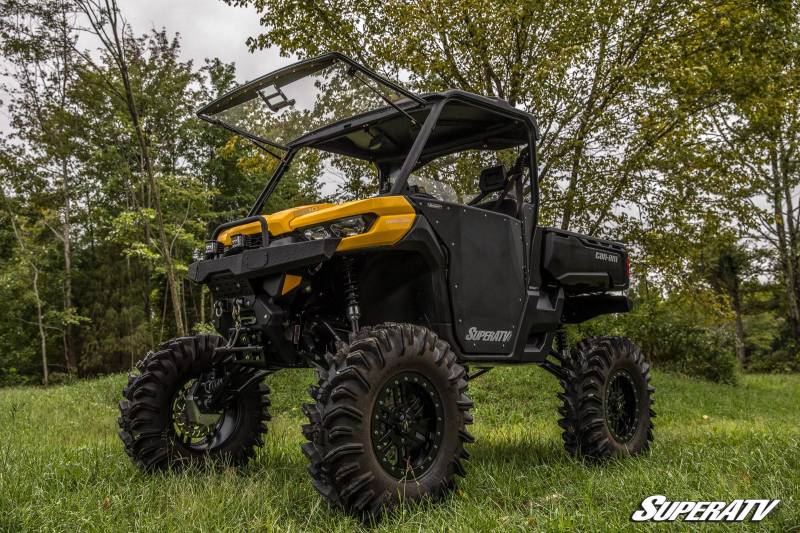

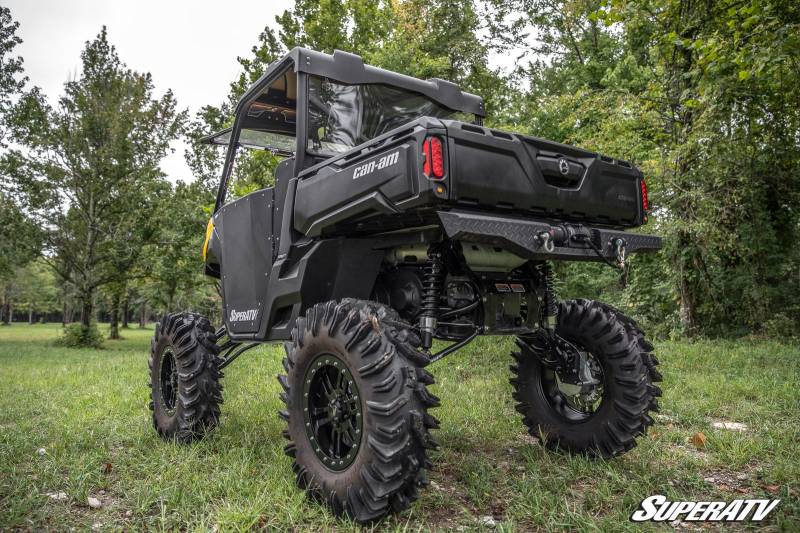

Put a 6" Portal Gear Lift from SuperATV on your Can-Am Defender and you’ll never ride the same way again. With Portal Gear Lifts you get a massive 6” lift and a 45% gear reduction in one package. The gear reduction saves your axles and gives you more torque. You can turn massive tires easily! All that alongside six extra inches of clearance. Sounds great doesn’t it? That’s what Gear Driven Performance by SuperATV is all about.

45% Gear Reduction?
With a 45 percent gear reduction (1.82:1 ratio), you can do anything you want. That means freedom to run huge tires that still feel like stock. With Gear Driven Performance, you’re getting more than a gear ratio — you get freedom. Push your UTV harder than you ever have before without breaking an axle or a prop shaft. Ride higher over any obstacle. Gear Driven Performance means freedom and fun.?

Note: SuperATV strongly recommends installing a SuperATV 6” Defender Lift Kit or other big lift kit in order to fit up to 39" tires. Without the addition of a 6" lift kit, only 29" tires on 18" wheels will fit without rubbing.

Gear Driven Performance by SuperATV|Portal Gear Lifts

Performance

  • 45% gear reduction
  • Designed for all terrains and riding styles
  • GDP maintains performance-ready axle angles

Impenetrable Bearings and Seals

  • First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
  • Automotive grade bearings
  • Press fit, precision ground gears and shafts to eliminate unwanted slop

Precision-Ground Gears: Drive Gear, Idler Gear and Driven Gear

  • Precision-ground chromium titanium alloy gears
  • Reduced friction build-up
  • Quiet gears at all speeds
  • Allows you to run at higher speeds

Gen 2 Portal Drive Shaft

  • Designed to be unbreakable
  • Made of 4340 hardened steel
  • 1.5 in diameter (40 mm)
  • M30 threads

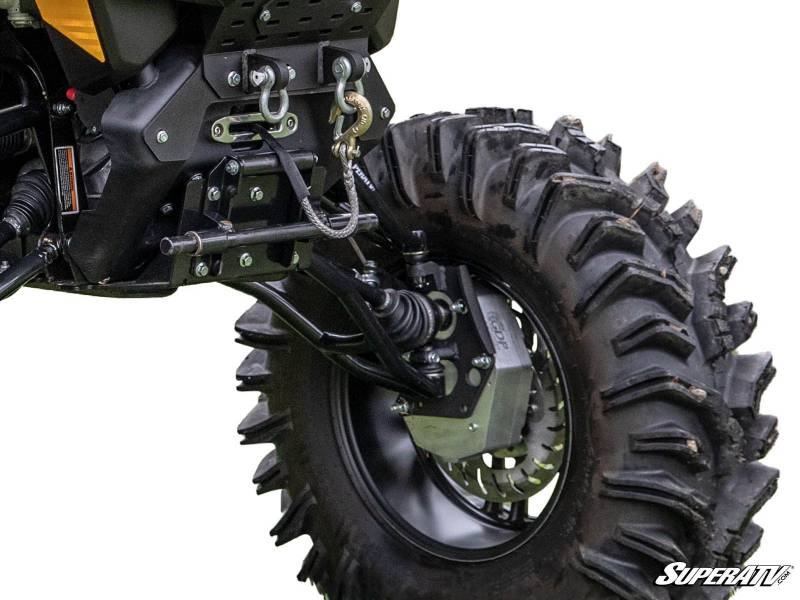

Steering Arm

  • Heavy duty structural member
  • 10.9 grade hardware
  • Modular design for improved functionality

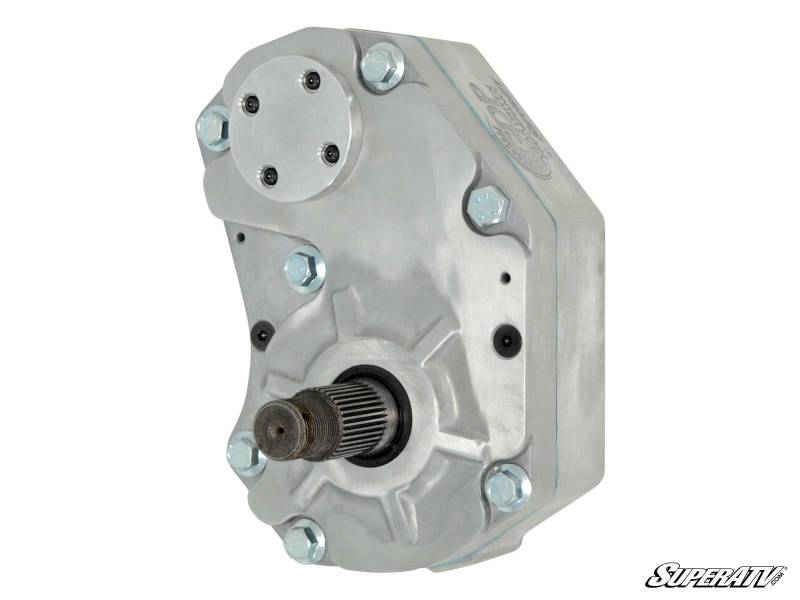

Gen 2 Aluminum Housing

  • CNC machined solid aluminum housing for superior strength
  • Polished aluminum for long lasting, stylish finish

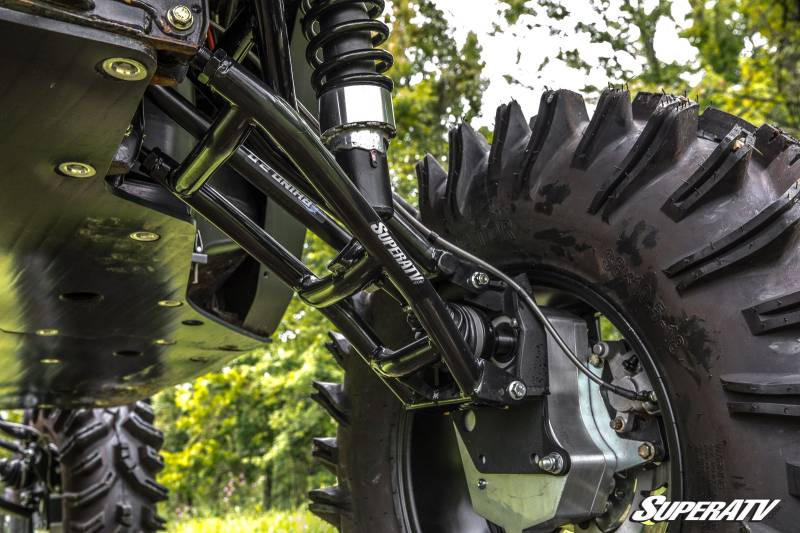

Mounting Plates and Pivot Blocks?

  • CNC formed, fully gusseted 5/16" mounting plates
  • Forged pivot blocks
  • Carbon steel caliper mounting plates

Gen 2 Slotted Rotors for Unmatched Cooling

  • Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
  • Ability to utilize different wheels on same hub
  • Extra thick hub designed to handle any torque
  • Stainless steel, braided brake lines included in each kit

Wheel Requirements

  • Requires an 18" or larger wheel
  • 18" wheels can not exceed 4-1/2" backspacing
  • 20" and larger wheels can not exceed 5" backspacing

Looking For a Different GDP Size Option?
We also have 4" GDP Portal Gear Lifts for your machine. If you are looking for other gear reduction options or a little less lift check out these other great products.

Can-Am Defender | 4" Portal Gear Lift (30% Gear Reduction)

FITMENT

  • Can-Am Defender HD 5 : 2017+
  • Can-Am Defender HD 8 : 2016+
  • Can-Am Defender HD 10 : 2016+
  • Can-Am Defender HD 5 DPS : 2017+
  • Can-Am Defender HD 8 DPS : 2016+
  • Can-Am Defender HD 10 DPS : 2016+
  • Can-Am Defender HD 8 XT : 2016+
  • Can-Am Defender HD 10 XT : 2016+
  • Can-Am Defender HD 8 XT Cab : 2016+
  • Can-Am Defender HD 10 XT Cab : 2016+
  • Can-Am Defender HD 8 XT-P : 2018+
  • Can-Am Defender HD 10 XT-P : 2018+
  • Can-Am Defender HD 10 Mossy Oak : 2018+
  • Can-Am Defender HD 10 XTP : 2018+
  • Can-Am Defender MAX HD 8 : 2017+
  • Can-Am Defender MAX HD 10 : 2017+
  • Can-Am Defender MAX HD 8 DPS : 2017+
  • Can-Am Defender MAX HD 10 DPS : 2017+
  • Can-Am Defender MAX HD 8 XT : 2017+
  • Can-Am Defender MAX HD 10 XT : 2017+
  • Can-Am Defender MAX HD 8 XT Cab : 2017+
  • Can-Am Defender MAX HD 10 XT Cab : 2017+
  • Can-Am Defender HD 10 XMR : 2018+
  • Can-Am Defender MAX Lone Star Edition : 2018+
Suspension Setup Max Tire Size
Stock w/ 6" Portals 29" (18" wheels required)
6" Portals W/ 6" Lift Kit (strongly recommended) 39"
Measurements taken with suspension fully compressed and at max turn. Although these are not fully representative of normal riding conditions, stated tire sizes should not rub. With minimal rubbing or trimming, larger sizes can be used.
