SUPERATV Polaris RZR S 1000 4" Portal Gear Lift

SAT-PGH-1-33
Please Call for Availability
888-411-8493

Description

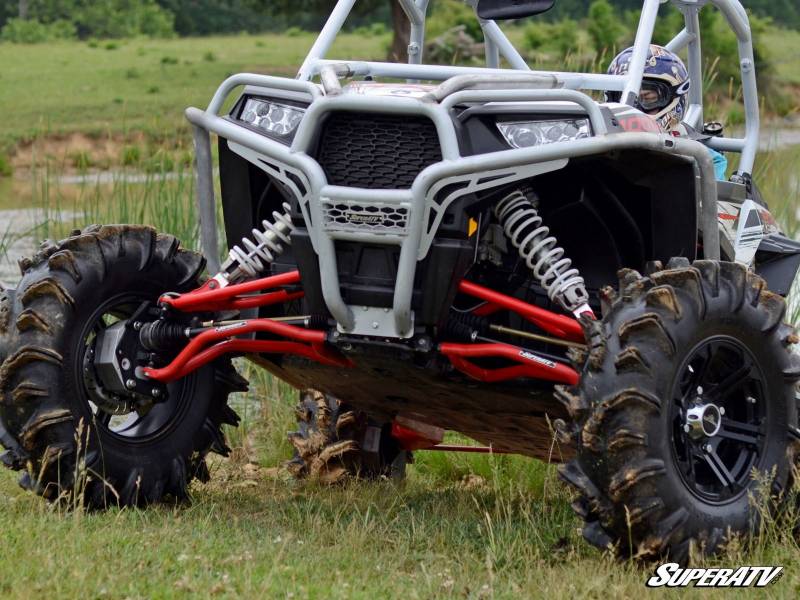

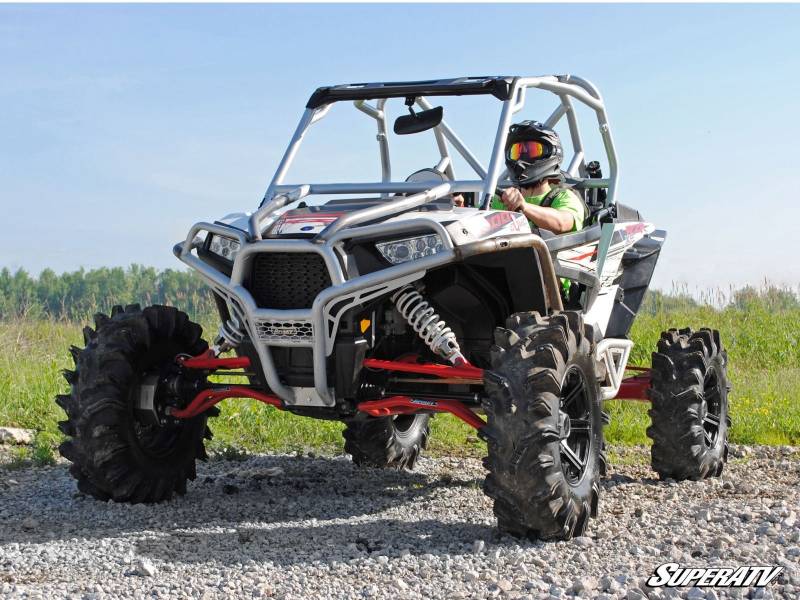

Polaris RZR S 1000 4" Portal Gear Lift

Why We Make Them
Take back your torque with Gen 2 Gear Driven Performance by SuperATV. We all know monster tires rob your much-desired horsepower. To keep that ultimate performance and gain an extra 4" of coveted lift, you want GDP from SuperATV.

Why GDP?

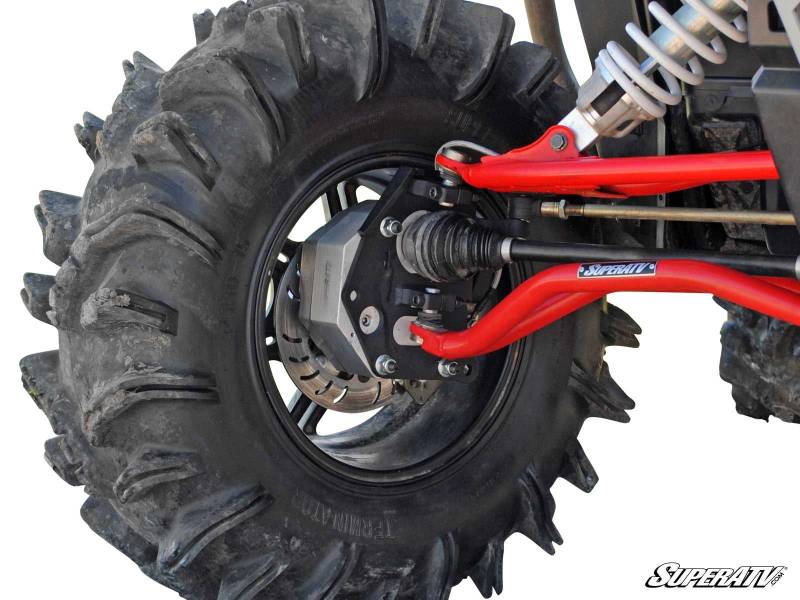

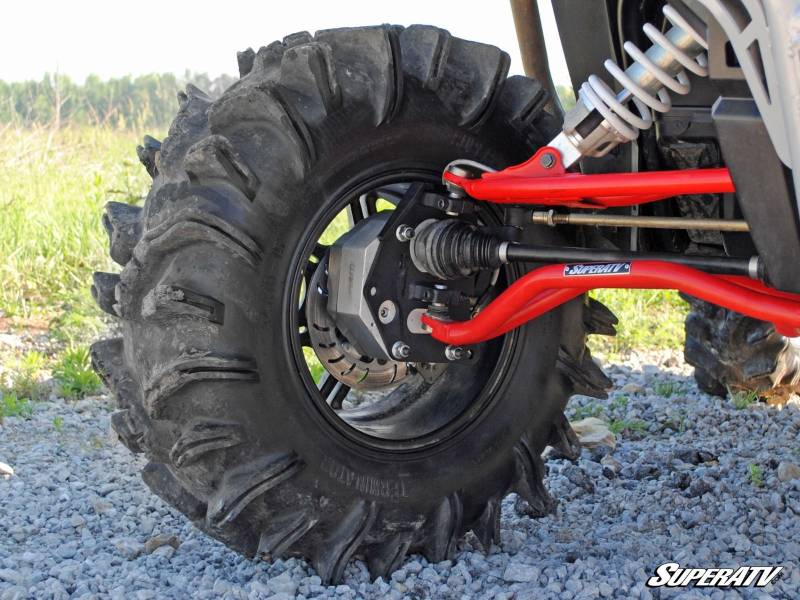

The GDP portal lift system spares no details as the most comprehensive kit on the market. SuperATV knows suspension and transferred over 10 years of suspension engineering into the GDP portal lifts. GDP starts by vertically relocating the axle centerline while retaining factory steering geometry, a must if you want to increase the life of your axles, differential, and drive train components. Pair that with a 1.4:1 gear reduction (approximately 30%), and you've got a performance driven machine!

Performance

  • Pair with SuperATV lift kits, a arms, and axles for extreme performance
  • 30% gear reduction
  • Designed for all terrains and riding styles


Axles

  • You will not chop your axles. GDP is the only kit on the market compatible with aftermarket and OEM axles with no modifications
  • GDP maintains performance-ready axle angles

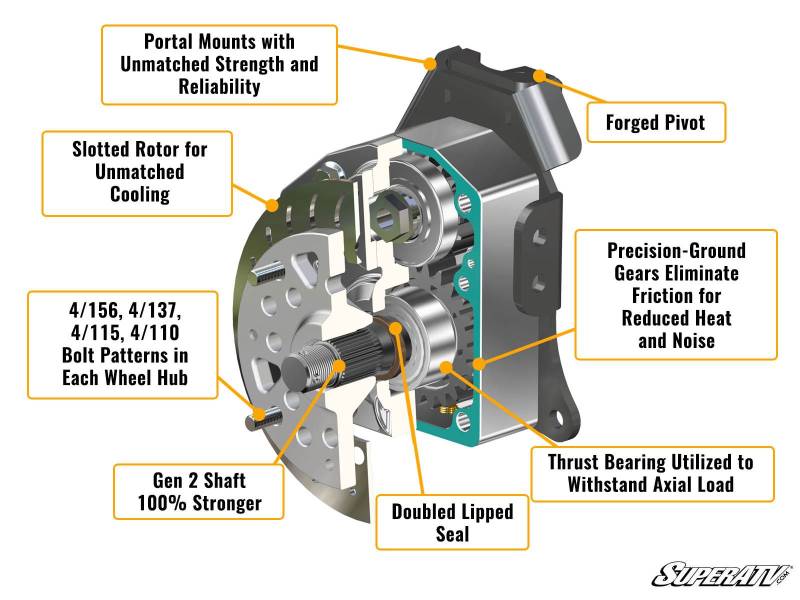

Impenetrable Bearings and Seals

  • First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
  • Automotive grade bearings
  • Press fit, precision ground gears and shafts to eliminate unwanted slop


Precision-Ground Gears: drive gear, idler gear and driven gear

  • Precision-ground chromium titanium alloy gears for industry best performance
  • Eliminates friction for reduced heat, noise and allows you to run at higher speeds
  • Reduced friction build-up
  • Quiet gears at all speeds
  • Performs at machine's fullest capacity


Gen 2 Portal Drive Shaft

  • Designed to be unbreakable
  • Made of 4340 hardened steel
  • 40 mm diameter
  • M30 threads


Steering Arm

  • Heavy duty structural member
  • 10.9 grade hardware
  • Modular design for improved functionality

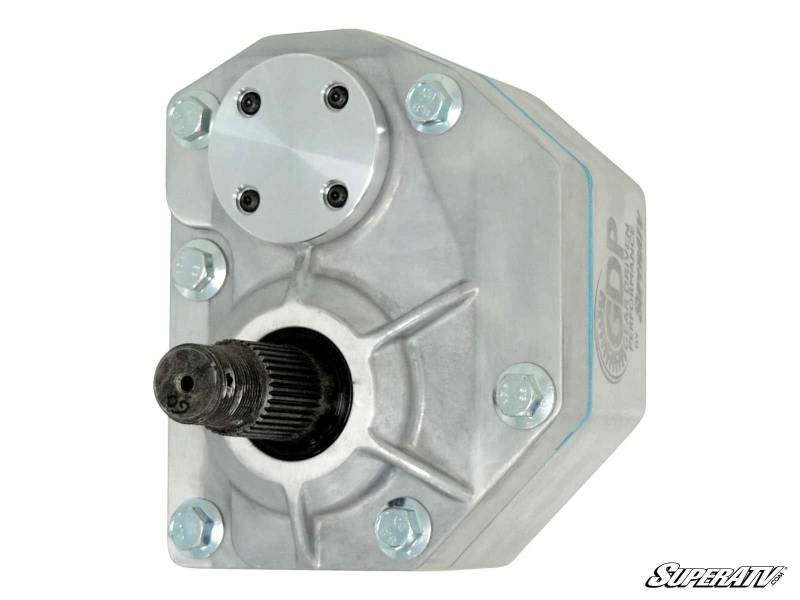

Gen 2 Aluminum Housing

  • CNC machined solid aluminum housing for superior strength
  • Polished aluminum for long lasting, stylish finish


How About Adjustability? Pair with our adjustable a arms

  • GDP understands the need for adjustability allowing you to custom tailor your machine to match your riding needs
  • Eliminates unwanted, premature tire wear caused from misalignment
  • Camber adjustability on all SuperATV a arms

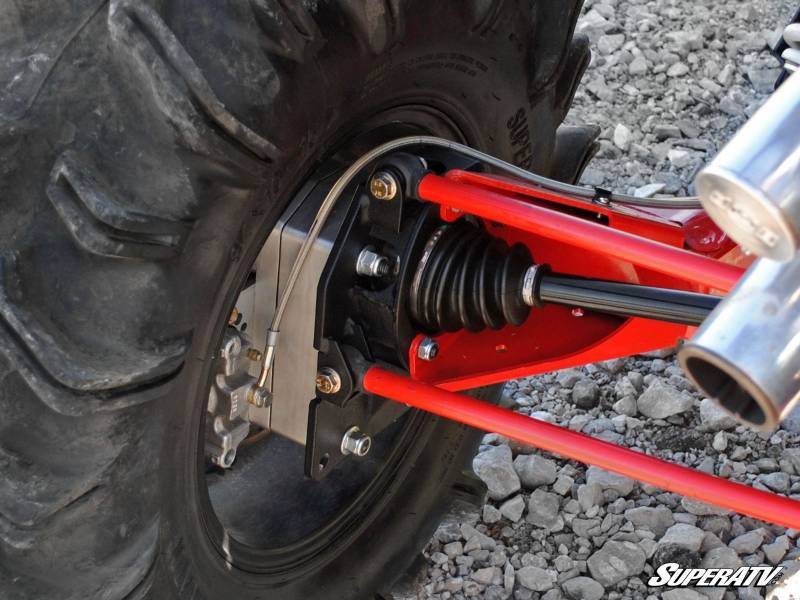

Mounting Plates and Pivot Blocks

  • CNC formed, fully gusseted 5/16" mounting plates
  • Forged pivot blocks
  • Carbon steel caliper mounting plates


Gen 2 Slotted Rotors for Unmatched Cooling

  • Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
  • Ability to utilize different wheels on same hub
  • Extra thick hub designed to handle any torque
  • Stainless steel, braided brake lines included in each kit


Wheel Requirements

  • Requires a 14" or larger wheel
  • Wheels can not exceed 5" backspacing
  • Not compatible with dual beadlock wheels

Gear Driven Performance by SuperATV|Portal Gear Lifts

FITMENT

  • Polaris RZR S 1000 : 2016+
  • Polaris RZR S4 1000 : 2019+

Recessed Nut Kit required for most aftermarket axles. Not required when using Stock, Rhino Brand and ADR axles.

Suspension Setup Max Tire Size
Stock 29"
1.5" Forward Front A-Arms 32"
2" Lift Kit 29"
1.5" Forward Front A-Arms and 2" Lift Kit 32"
7-10" Lift Kit 44"
Measurements taken with suspension fully compressed and at max turn. Although these are not fully representative of normal riding conditions, stated tire sizes will not rub. With minimal rubbing or trimming, larger sizes can be used.
